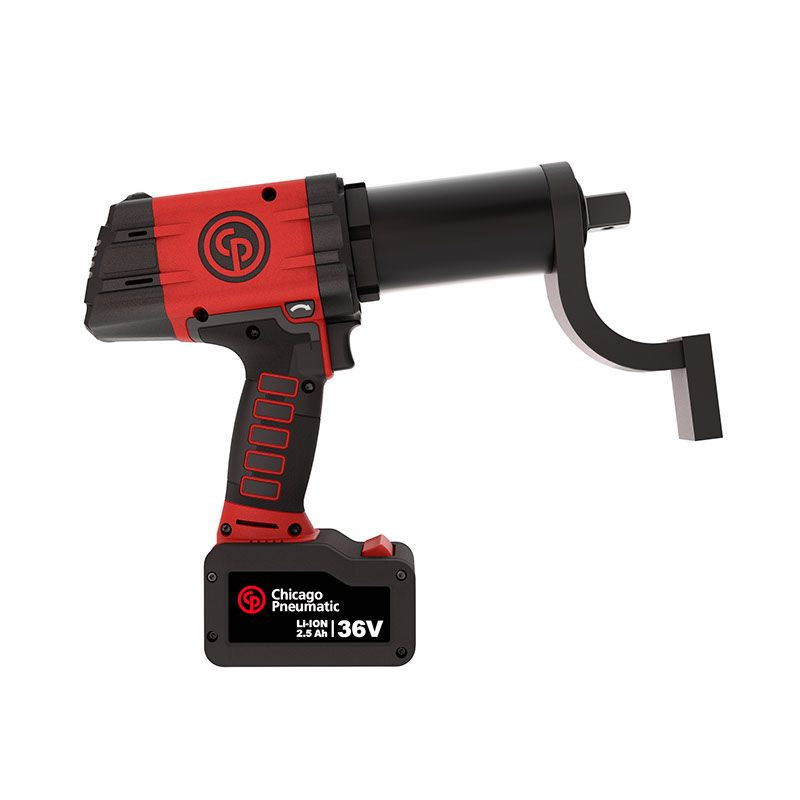

Chicago Pneumatic Battery Torque Wrench | CP8613TC PACK 36V 2.5AH | 221 - 959 (ft-lbs) Torque Range | 3/4" Square Drive

Built for high-torque fastening where torque checking, cordless movement, and repeatable tightening are required, the Chicago Pneumatic CP8613TC PACK 36V 2.5AH Battery Torque Wrench delivers a 221 - 959 ft-lbs torque range with ±4% accuracy. Its 3/4" square drive fits large industrial socket sets, while the included S-type reaction bar braces the tool against a fixed point so torque can be applied in a controlled, stable way.

As the Torque Check version of the CP8613, this model supports torque tightening, torque check, angle tightening, counting sequence functions, and traceability data collection through CPLinQ. The 36V 2.5Ah lithium-ion battery platform keeps technicians mobile around fleet bays, transit shops, industrial equipment, and field service locations without compressed-air setup. With 10 RPM free speed and hard and soft joint capability, the CP8613TC supports controlled fastening on rigid metal-to-metal joints as well as assemblies with some compression from washers, spacers, or similar components.

Type: Battery Torque Wrench | Series: CP86 Series | Model: CP8613TC PACK 36V 2.5AH | SKU: 6151570670 | Version: Torque Check | Reaction Bar: S-Type Included | Drive Size: 3/4" | Drive Type: Square | Output Retainer: Hole | Torque Range: 221 - 959 ft-lbs / 300 - 1,300 Nm | Nominal Working Torque: 221 - 767 ft-lbs / 300 - 1,040 Nm | Recommended Torque: 767 ft-lbs / 1,040 Nm | Accuracy: ±4% | Free Speed: 10 RPM | Torque Control System: Shut-off-current control | Adjustment: Digital / CPLinQ App | Starting System: Double-Trigger | Joint Type: Hard & Soft | Handle Type: Pistol | Main Material: Steel | Battery: 36V 2.5Ah Lithium-Ion | Battery Capacity: 2.5Ah | Cycles Per Battery: 250 | Sound Pressure: 83 dB(A) | Sound Power: <72 dB(A) | Vibration: <2.5 m/s² | Weight without Reaction Arm: 8.16 lbs / 3.7 kg | Weight with Reaction Arm: 9.92 lbs / 4.5 kg | Length: 12.52" / 318 mm | Height: 11.22" / 285 mm | Width: 3.03" / 77 mm

Features:

• Torque Check version supports torque tightening, torque check, angle tightening, counting sequence functions, and traceability data collection.
• Torque Check function helps monitor bolt loosening over time during inspection and maintenance routines.
• Counting sequence capability helps reduce missed fasteners during repeated tightening operations.
• High precision ±4% torque accuracy helps technicians tighten large fasteners within a defined target range.
• Included S-type reaction bar provides a fixed reaction point during controlled torque application.
• Double-trigger starting system includes a second start button for safer, more deliberate activation during high-torque work.
• OLED digital screen and CPLinQ app provide intuitive setup, connected tool control, and traceability support.
• CP Care eligible, with calibration available as part of the preventive maintenance package or as a standalone service.

Kit Includes:

• 1 CP8613TC dual-trigger battery torque wrench
• 1 S-type reaction bar
• 2 batteries
• 1 battery charger
• 1 charger cable
• 1 plastic case

Applications:

• Fleet and truck maintenance - torque-controlled tightening and torque checking on wheel, suspension, chassis, and service fasteners.
• Bus and transit service - cordless 3/4" drive fastening across high-use vehicle fleets where repeatable service records are useful.
• Industrial maintenance and MRO - documented tightening on machinery frames, fixtures, guards, and bolted plant equipment.
• Heavy equipment repair - large-fastener torque work where repeatability and follow-up torque checks are part of maintenance procedures.
• Field service crews - battery-powered torque work where compressed air is unavailable, inconvenient, or slower to deploy.

FAQs:

• Q: What does "TC" mean on the CP8613TC?
  A: "TC" identifies the Torque Check version. It supports torque check functionality, angle tightening, counting sequence control, and traceability data collection through CPLinQ.
• Q: Does the CP8613TC PACK include a reaction bar?
  A: Yes. This pack includes one S-type reaction bar. The reaction bar must be positioned against a suitable reaction point before tightening so the tool can manage torque reaction safely and consistently.
• Q: What is Torque Check used for?
  A: Torque Check is used to help control bolt loosening over time during inspection and maintenance routines. It is useful when fasteners need to be checked after service intervals, repeated equipment use, or critical maintenance work.
• Q: Does this pack include batteries and a charger?
  A: Yes. The CP8613TC PACK includes the tool, S-type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, and 1 plastic case.
• Q: Is the CP8613TC an impact wrench?
  A: No. This is a battery torque wrench for controlled tightening and torque checking. It is used when target torque, repeatability, traceability, and follow-up verification matter more than impact-style breakaway force.

Looking for more information about Chicago Pneumatic Cordless Torque Wrench? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Cordless Torque Wrenches for your assembly application, call (800) 608-5210 or email info@intlairtool.com
