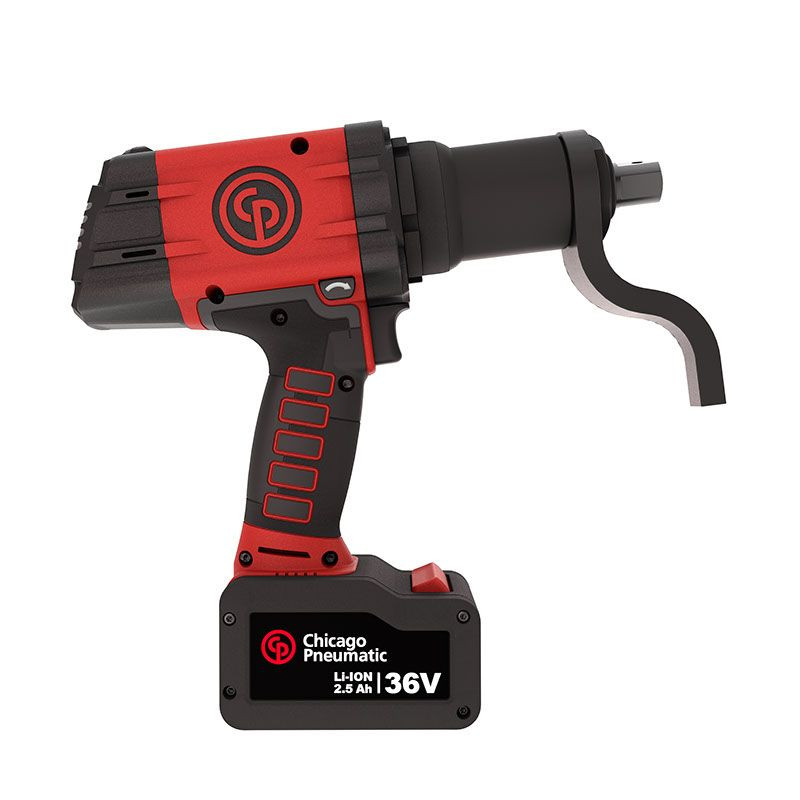

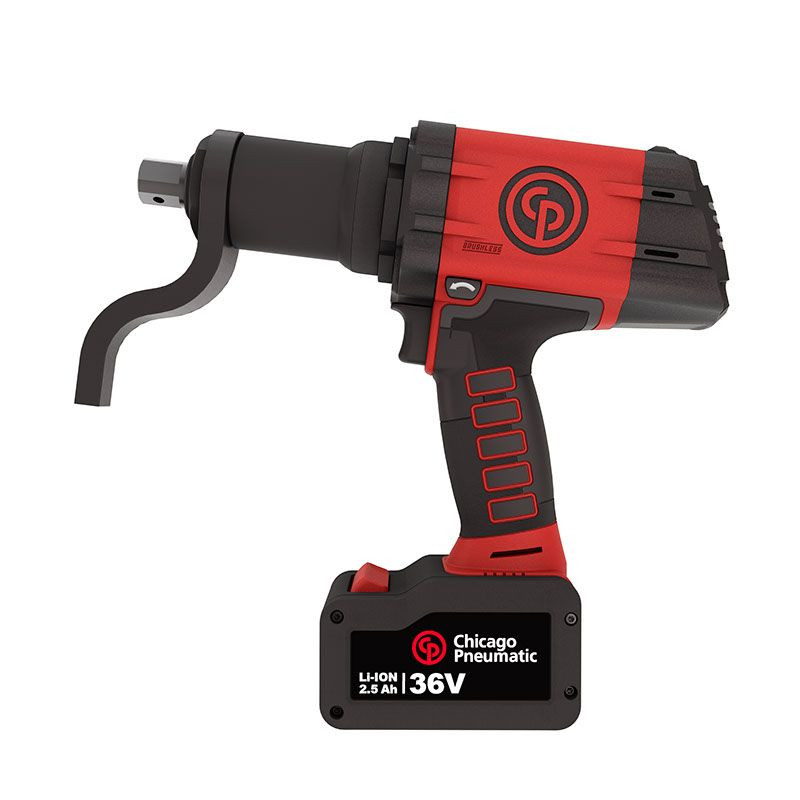

Chicago Pneumatic Battery Torque Wrench | CP8603TC PACK 36V 2.5AH | 51.6 - 240 (ft-lbs) Torque Range | 3/4" Square Drive

Built for controlled tightening where torque verification and cordless mobility need to work together, the Chicago Pneumatic CP8603TC PACK 36V 2.5AH Battery Torque Wrench delivers a 51.6 - 240 ft-lbs torque range with ±4% accuracy. Its 3/4" square drive fits industrial socket sets used in vehicle service, plant maintenance, and assembly work, while the included S-type reaction bar braces the tool against a fixed reaction point during tightening.

As the Torque Check version of the CP8603, this model adds torque check functionality for inspection and maintenance routines where bolt loosening over time must be monitored. The OLED digital screen and CPLinQ app support tool setup, angle tightening, counting sequence control, and data collection for traceability. Powered by a 36V 2.5Ah lithium-ion battery, the CP8603TC gives technicians controlled torque output without compressed-air setup, making it useful in fleet bays, repair stations, field service trucks, and industrial MRO environments.

Type: Battery Torque Wrench | Series: CP86 Series | Model: CP8603TC PACK 36V 2.5AH | SKU: 6151570410 | Version: Torque Check | Reaction Bar: S-Type Included | Drive Size: 3/4" | Drive Type: Square | Output Retainer: Hole | Torque Range: 51.6 - 240 ft-lbs / 70 - 325 Nm | Nominal Working Torque: 51.6 - 192 ft-lbs / 70 - 260 Nm | Recommended Torque: 192 ft-lbs / 260 Nm | Accuracy: ±4% | Free Speed: 20 RPM | Torque Control System: Shut-off-current control | Adjustment: Digital / CPLinQ App | Starting System: Double-Trigger | Joint Type: Hard & Soft | Handle Type: Pistol | Main Material: Steel | Battery: 36V 2.5Ah Lithium-Ion | Battery Capacity: 2.5Ah | Cycles Per Battery: 700 | Sound Pressure: 59 dB(A) | Sound Power: <72 dB(A) | Vibration: <2.5 m/s² | Weight without Reaction Arm: 6.39 lbs / 2.9 kg | Weight with Reaction Arm: 7.28 lbs / 3.3 kg | Length: 14.29" / 363 mm | Height: 11.22" / 285 mm | Width: 3.03" / 77 mm

Features:

• Torque Check version supports torque tightening, torque check, angle tightening, counting sequence functions, and traceability data collection.
• Torque Check function helps monitor bolt loosening over time during inspection and maintenance work.
• Counting sequence capability helps reduce missed fasteners during repeated tightening operations.
• OLED digital screen and CPLinQ app provide intuitive setup and connected tool control.
• High precision ±4% torque accuracy helps technicians tighten medium-to-large fasteners within a defined target range.
• Included S-type reaction bar provides a fixed reaction point during controlled torque application.
• Double-trigger starting system includes a second start button for safer, more deliberate activation during tightening.
• CP Care eligible, with calibration available as part of the preventive maintenance package or as a standalone service.

Kit Includes:

• 1 CP8603TC dual-trigger battery torque wrench
• 1 S-type reaction bar
• 2 batteries
• 1 battery charger
• 1 charger cable
• 1 plastic case

Applications:

• Fleet and vehicle maintenance - torque-controlled tightening and torque checking on chassis, suspension, accessory, and service fasteners.
• Industrial maintenance and MRO - documented fastening on machinery guards, brackets, fixtures, frames, and plant equipment.
• Assembly and repair stations - repeated fastening work where counting sequence control helps reduce missed tightenings.
• Bus, trailer, and utility service - cordless 3/4" drive tightening for medium-to-large fasteners in shop and field environments.
• Field service crews - battery-powered torque work where compressed air is unavailable, inconvenient, or slower to deploy.

FAQs:

• Q: What does "TC" mean on the CP8603TC?
  A: "TC" identifies the Torque Check version. It supports torque check functionality, angle tightening, counting sequence control, and data collection for traceability through CPLinQ.
• Q: Does the CP8603TC PACK include a reaction bar?
  A: Yes. This pack includes one S-type reaction bar, which helps brace the wrench during controlled tightening. Always position the reaction bar against a suitable reaction point before operating the tool.
• Q: What is Torque Check used for?
  A: Torque Check is used to help control bolt loosening over time during inspection and maintenance routines. It is useful when fasteners need to be checked after service intervals or repeated equipment use.
• Q: Does this pack include batteries and a charger?
  A: Yes. The CP8603TC PACK includes the tool, S-type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, and 1 plastic case.
• Q: Is the CP8603TC an impact wrench?
  A: No. This is a battery torque wrench for controlled tightening and torque checking. It is used when target torque, repeatability, and traceability matter more than impact-style breakaway force.
