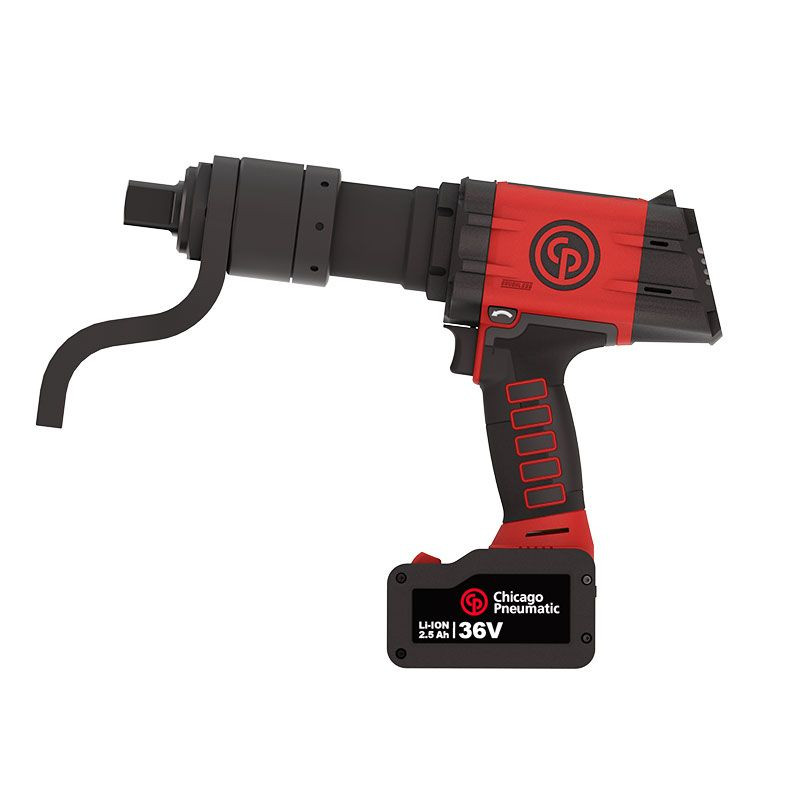

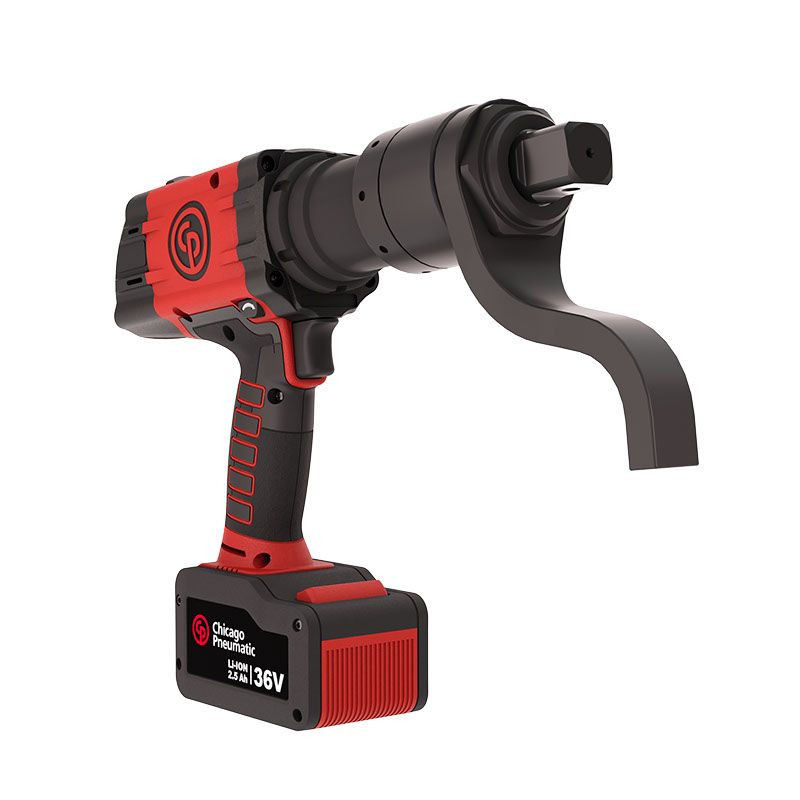

Chicago Pneumatic Battery Torque Wrench | CP8609TC PACK 36V 2.5AH | 185 - 665 (ft-lbs) Torque Range | 1" Square Drive

Built for large-fastener tightening programs where torque checking, cordless mobility, and traceability all matter, the Chicago Pneumatic CP8609TC PACK 36V 2.5AH Battery Torque Wrench delivers a 185 - 665 ft-lbs torque range with ±4% accuracy. Its 1" square drive fits large industrial socket sets, while the included S-type reaction bar braces the tool against a fixed point so torque can be applied in a controlled, repeatable way.

As the Torque Check version of the CP8609, this model supports torque tightening, torque check, angle tightening, counting sequence functions, and traceability data collection through CPLinQ. The 36V 2.5Ah lithium-ion battery platform keeps technicians mobile around fleet service bays, truck shops, transit maintenance areas, heavy equipment, and field service work without compressed-air setup. With 15 RPM free speed and hard and soft joint capability, the CP8609TC supports controlled tightening on rigid metal-to-metal assemblies as well as joints with some compression from washers, spacers, or similar components.

Type: Battery Torque Wrench | Series: CP86 Series | Model: CP8609TC PACK 36V 2.5AH | SKU: 6151571150 | Version: Torque Check | Reaction Bar: S-Type Included | Drive Size: 1" | Drive Type: Square | Output Retainer: Hole | Torque Range: 185 - 665 ft-lbs / 250 - 900 Nm | Nominal Working Torque: 240 - 530 ft-lbs / 325 - 720 Nm | Recommended Torque: 531 ft-lbs / 720 Nm | Accuracy: ±4% | Free Speed: 15 RPM | Torque Control System: Shut-off-current control | Adjustment: Digital / CPLinQ App | Starting System: Double-Trigger | Joint Type: Hard & Soft | Handle Type: Pistol | Main Material: Steel | Battery: 36V 2.5Ah Lithium-Ion | Battery Capacity: 2.5Ah | Cycles Per Battery: 500 | Sound Pressure: 58 dB(A) | Sound Power: <83 dB(A) | Vibration: <2.5 m/s² | Weight with Battery and Reaction Arm: 12.5 lbs / 5.7 kg | Length: 13.43" / 341 mm | Height: 11.22" / 285 mm | Width: 3.03" / 77 mm | Side to Center: 1.32" / 33.5 mm

Features:

• Torque Check version supports torque tightening, torque check, angle tightening, counting sequence functions, and traceability data collection.
• Torque Check function helps monitor bolt loosening over time during inspection and maintenance routines.
• Counting sequence capability helps reduce missed tightenings during repeated fastening operations.
• High precision ±4% torque accuracy helps technicians tighten large fasteners within a defined target range.
• Included S-type reaction bar provides a fixed reaction point during controlled torque application.
• Double-trigger starting system includes a second start button for safer, more deliberate activation during high-torque work.
• OLED digital screen and CPLinQ app provide intuitive setup, connected tool control, and traceability support.
• CP Care eligible, with calibration available as part of the preventive maintenance package or as a standalone service.

Kit Includes:

• 1 CP8609TC dual-trigger battery torque wrench
• 1 S-type reaction bar
• 2 batteries
• 1 battery charger
• 1 charger cable
• 1 plastic case

Applications:

• Truck and fleet maintenance - torque-controlled tightening and torque checking on wheel, chassis, suspension, and service fasteners.
• Bus and transit service - cordless 1" drive tightening across high-use vehicle fleets where service records are useful.
• Industrial maintenance and MRO - documented fastening on machinery frames, fixtures, guards, and bolted plant equipment.
• Heavy equipment repair - large-fastener torque work where repeatability and follow-up torque checks are part of maintenance routines.
• Field service crews - battery-powered torque work where compressed air is unavailable, inconvenient, or slower to deploy.

FAQs:

• Q: What does "TC" mean on the CP8609TC?
  A: "TC" identifies the Torque Check version. It supports torque check functionality, angle tightening, counting sequence control, and data collection for traceability through CPLinQ.
• Q: Does the CP8609TC PACK include a reaction bar?
  A: Yes. This pack includes one S-type reaction bar. The reaction bar must be positioned against a suitable reaction point before tightening so the tool can manage torque reaction safely and consistently.
• Q: What is Torque Check used for?
  A: Torque Check is used to help control bolt loosening over time during inspection and maintenance routines. It is useful when fasteners need to be checked after service intervals, repeated use, or critical maintenance work.
• Q: Does this pack include batteries and a charger?
  A: Yes. The CP8609TC PACK includes the tool, S-type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, and 1 plastic case.
• Q: Is the CP8609TC an impact wrench?
  A: No. This is a battery torque wrench for controlled tightening and torque checking. It is used when target torque, repeatability, traceability, and follow-up verification matter more than impact-style breakaway force.
