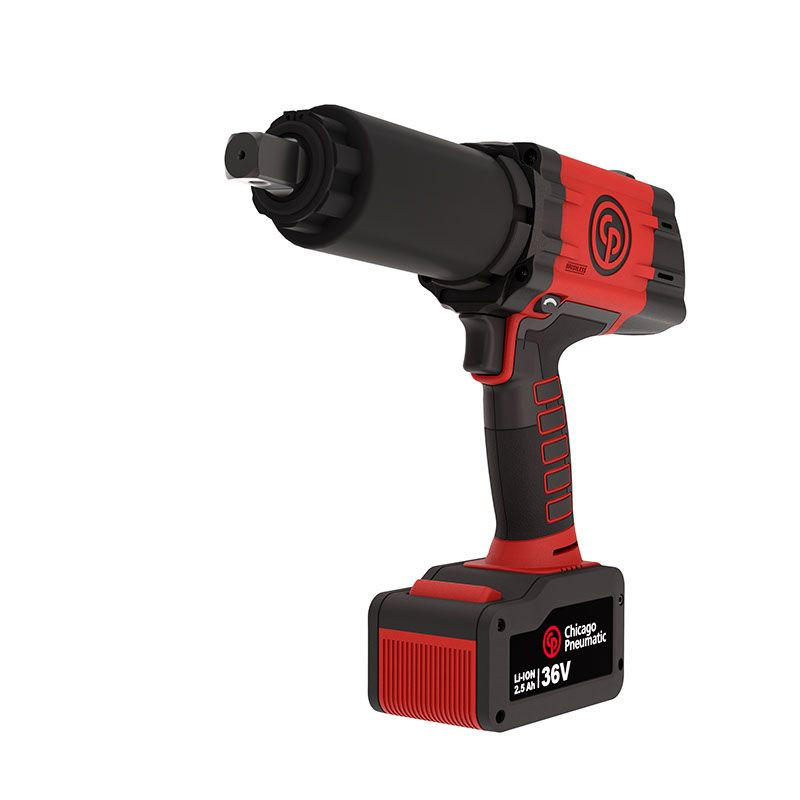

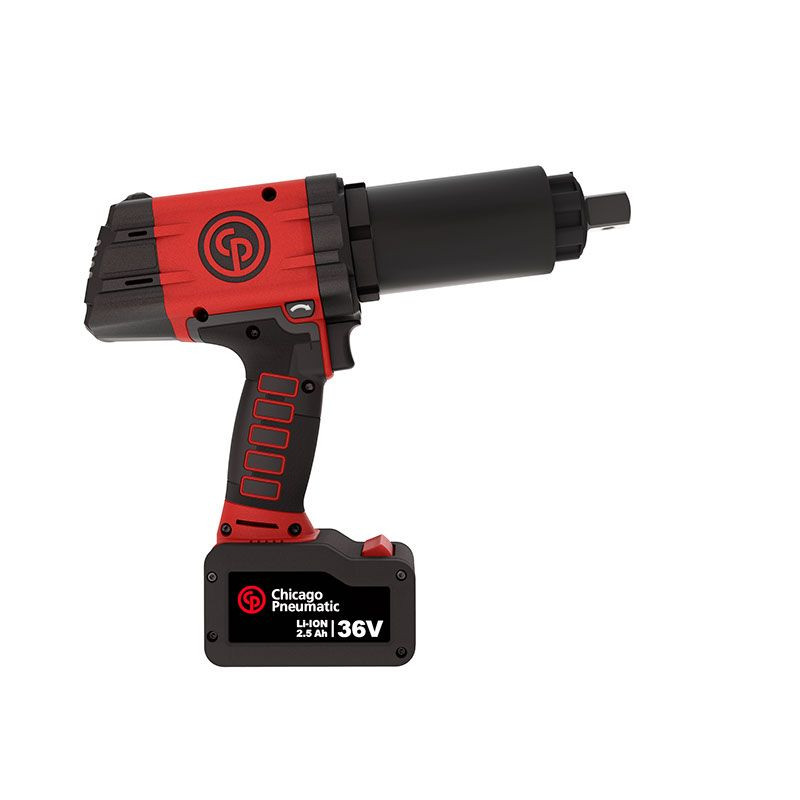

Chicago Pneumatic Battery Torque Wrench | CP8613CQ WOB PACK 36V 2.5AH | 221 - 959 (ft-lbs) Torque Range | 3/4" Square Drive

Built for high-torque fastening where cordless mobility, connected setup, and tightening records are part of the job, the Chicago Pneumatic CP8613CQ WOB PACK 36V 2.5AH Battery Torque Wrench delivers a 221 - 959 ft-lbs torque range with ±4% accuracy. Its 3/4" square drive fits large industrial sockets, while the WOB configuration is supplied without a reaction arm so the correct compatible reaction accessory can be selected for the fastening location.

As the Connected Quality version of the CP8613 WOB, this model adds connected process functions beyond basic digital torque setup. The OLED digital screen and CPLinQ app support intuitive handling, while angle tightening, counting sequence capability, and data collection help maintenance teams document repeated fastening work. Powered by a 36V 2.5Ah lithium-ion battery, the CP8613CQ WOB gives fleet, transit, industrial MRO, and field service technicians controlled torque output without setting up compressed air.

Type: Battery Torque Wrench | Series: CP86 Series | Model: CP8613CQ WOB PACK 36V 2.5AH | SKU: 6151570360 | Version: Connected Quality | Configuration: WOB / Without Reaction Arm | Drive Size: 3/4" | Drive Type: Square | Output Retainer: Hole | Torque Range: 221 - 959 ft-lbs / 300 - 1,300 Nm | Nominal Working Torque: 221 - 767 ft-lbs / 300 - 1,040 Nm | Recommended Torque: 767 ft-lbs / 1,040 Nm | Accuracy: ±4% | Free Speed: 10 RPM | Torque Control System: Shut-off-current control | Adjustment: Digital / CPLinQ App | Starting System: Double-Trigger | Joint Type: Hard & Soft | Handle Type: Pistol | Main Material: Steel | Battery: 36V 2.5Ah Lithium-Ion | Battery Capacity: 2.5Ah | Cycles Per Battery: 250 | Sound Pressure: 83 dB(A) | Sound Power: <72 dB(A) | Vibration: <2.5 m/s² | Weight without Reaction Arm: 8.16 lbs / 3.7 kg | Length: 12.52" / 318 mm | Height: 11.22" / 285 mm | Width: 3.03" / 77 mm

Features:

• Connected Quality version supports torque tightening, angle tightening, counting sequence functions, and data collection for traceability.
• WOB configuration is supplied without reaction arm, allowing the user to choose the correct compatible reaction accessory separately.
• High precision ±4% torque accuracy helps technicians tighten large fasteners within a defined target range.
• Digital OLED screen and CPLinQ app support intuitive tool setup and connected workflow management.
• Double-trigger starting system includes a second start button for safer, more deliberate activation during high-torque work.
• Shut-off-current control helps stop the tool when the programmed torque target is reached.
• Automatic release reaction arm function helps prevent the tool from staying blocked on the application when used with the proper reaction accessory.
• CP Care eligible, with calibration available as part of the preventive maintenance package or as a standalone service.

Kit Includes:

• 1 CP8613CQ battery torque wrench
• 2 batteries
• 1 battery charger
• 1 charger cable
• 1 plastic case

Applications:

• Fleet and truck service - controlled tightening on large vehicle fasteners where torque repeatability and job records matter.
• Bus and transit maintenance - cordless 3/4" drive torque work across high-use vehicle fleets and maintenance bays.
• Industrial maintenance and MRO - fastening machinery, fixtures, frames, and production equipment with a documented tightening process.
• Field service operations - battery-powered torque work where compressed air setup is unavailable, inconvenient, or slower to deploy.
• Heavy equipment repair - large-fastener tightening where the correct reaction accessory must be matched to the available reaction point.

FAQs:

• Q: What does WOB mean on the CP8613CQ WOB PACK?
  A: WOB means the tool is supplied without a reaction arm. A compatible reaction arm or reaction accessory must be selected separately based on the fastener location, socket setup, and available reaction point.
• Q: What does the "CQ" version add?
  A: "CQ" identifies the Connected Quality version. It supports connected setup through the OLED screen or CPLinQ app, plus angle tightening, counting sequence functions, and data collection for traceability.
• Q: Is this the Torque Check version?
  A: No. This is the Connected Quality version. Torque Check functions are reserved for CP8613TC models.
• Q: Does this pack include batteries and a charger?
  A: Yes. This PACK version includes the CP8613CQ tool, 2 batteries, 1 battery charger, 1 charger cable, and 1 plastic case.
• Q: Is the CP8613CQ WOB an impact wrench?
  A: No. This is a battery torque wrench for controlled tightening. It is used when torque accuracy, repeatability, and traceability are more important than impact-style breakaway force.

Looking for more information about Chicago Pneumatic Cordless Torque Wrench? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Cordless Torque Wrenches for your assembly application, call (800) 608-5210 or email info@intlairtool.com
