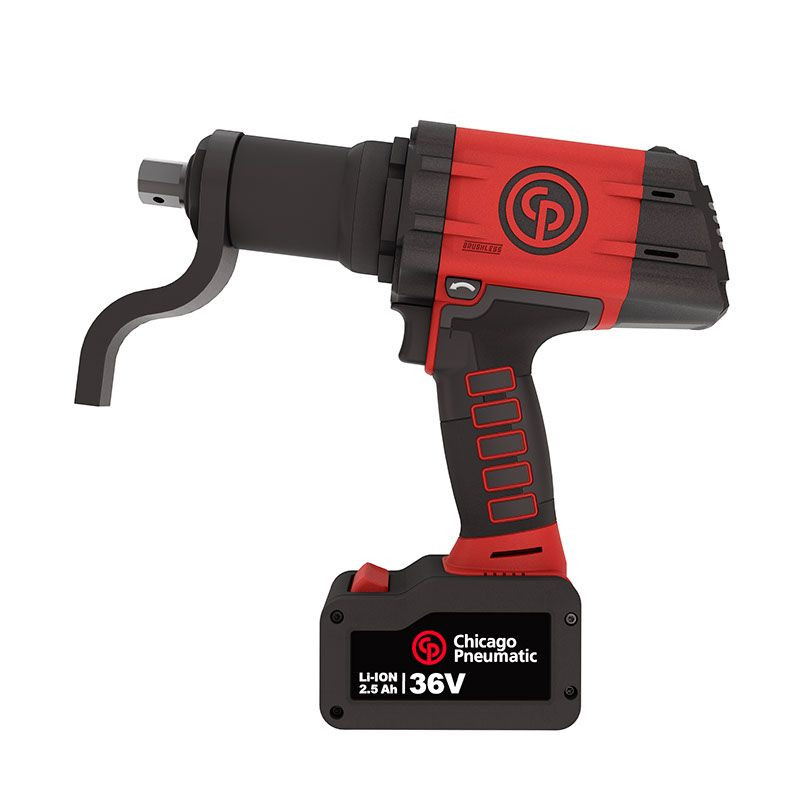

Chicago Pneumatic Battery Torque Wrench | CP8603CQ PACK 36V 2.5AH | 51.6 - 240 (ft-lbs) Torque Range | 3/4" Square Drive

Built for controlled fastening where cordless mobility, connected setup, and tightening traceability are required, the Chicago Pneumatic CP8603CQ PACK 36V 2.5AH Battery Torque Wrench delivers a 51.6 - 240 ft-lbs torque range with ±4% accuracy. Its 3/4" square drive fits industrial socket sets used in maintenance, vehicle service, and assembly work, while the included S-type reaction bar braces the tool against a fixed point during torque application.

As the Connected Quality version of the CP8603, this model adds process-focused functions beyond basic digital torque setup. The OLED digital screen and CPLinQ app support intuitive handling, angle tightening, counting sequence control, and data collection for traceability. Powered by a 36V 2.5Ah lithium-ion battery, the CP8603CQ keeps technicians mobile around service bays, work cells, field equipment, and fleet vehicles without compressed-air setup.

Type: Battery Torque Wrench | Series: CP86 Series | Model: CP8603CQ PACK 36V 2.5AH | SKU: 6151570400 | Version: Connected Quality | Reaction Bar: S-Type Included | Drive Size: 3/4" | Drive Type: Square | Output Retainer: Hole | Torque Range: 51.6 - 240 ft-lbs / 70 - 325 Nm | Nominal Working Torque: 65 - 190 ft-lbs / 90 - 260 Nm | Recommended Torque: 192 ft-lbs / 260 Nm | Accuracy: ±4% | Free Speed: 20 RPM | Torque Control System: Shut-off-current control | Adjustment: Digital / CPLinQ App | Starting System: Double-Trigger | Joint Type: Hard & Soft | Handle Type: Pistol | Main Material: Steel | Battery: 36V 2.5Ah Lithium-Ion | Battery Capacity: 2.5Ah | Cycles Per Battery: 700 | Sound Pressure: 59 dB(A) | Sound Power: <72 dB(A) | Vibration: <2.5 m/s² | Weight without Reaction Arm: 6.39 lbs / 2.9 kg | Weight with Reaction Arm: 7.28 lbs / 3.3 kg | Length: 14.29" / 363 mm | Height: 11.22" / 285 mm | Width: 3.03" / 77 mm

Features:

• Connected Quality version supports torque tightening, angle tightening, counting sequence functions, and data collection for traceability.
• OLED digital screen and CPLinQ app provide intuitive tool setup and connected workflow control.
• Counting sequence capability helps reduce missed tightenings during repeated fastening operations.
• High precision ±4% torque accuracy helps technicians tighten medium-to-large fasteners within a defined target range.
• Included S-type reaction bar provides a fixed reaction point during controlled torque application.
• Double-trigger starting system includes a second start button for safer, more deliberate activation during tightening.
• Automatic release reaction arm helps avoid the tool staying blocked on the application after the tightening cycle.
• CP Care eligible, with calibration available as part of the preventive maintenance package or as a standalone service.

Kit Includes:

• 1 CP8603CQ dual-trigger battery torque wrench
• 1 S-type reaction bar
• 2 batteries
• 1 battery charger
• 1 charger cable
• 1 plastic case

Applications:

• Fleet and vehicle maintenance - controlled tightening on chassis, suspension, accessory, and service fasteners where torque records are useful.
• Industrial maintenance and MRO - traceable fastening on machinery guards, brackets, frames, fixtures, and plant equipment.
• Assembly and repair stations - repeated fastening work where counting sequence control helps reduce missed fasteners.
• Bus, trailer, and utility service - cordless 3/4" drive tightening for medium-to-large fasteners around maintenance bays and field vehicles.
• Field service crews - battery-powered torque work in locations where compressed air is unavailable, inconvenient, or slower to deploy.

FAQs:

• Q: What does the "CQ" version add on the CP8603CQ?
  A: "CQ" identifies the Connected Quality version. It supports connected setup through the OLED screen or CPLinQ app, plus angle tightening, counting sequence functions, and data collection for traceability.
• Q: Does the CP8603CQ PACK include a reaction bar?
  A: Yes. This pack includes one S-type reaction bar, which helps brace the wrench during controlled tightening. Always position the reaction bar against a suitable reaction point before operating the tool.
• Q: Is this the Torque Check version?
  A: No. The CP8603CQ is the Connected Quality version. Torque Check functions are reserved for CP8603TC models.
• Q: Does this pack include batteries and a charger?
  A: Yes. The CP8603CQ PACK includes the tool, S-type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, and 1 plastic case.
• Q: Is the CP8603CQ an impact wrench?
  A: No. This is a battery torque wrench for controlled tightening. It is used when target torque, accuracy, repeatability, and traceability matter more than impact-style breakaway force.
