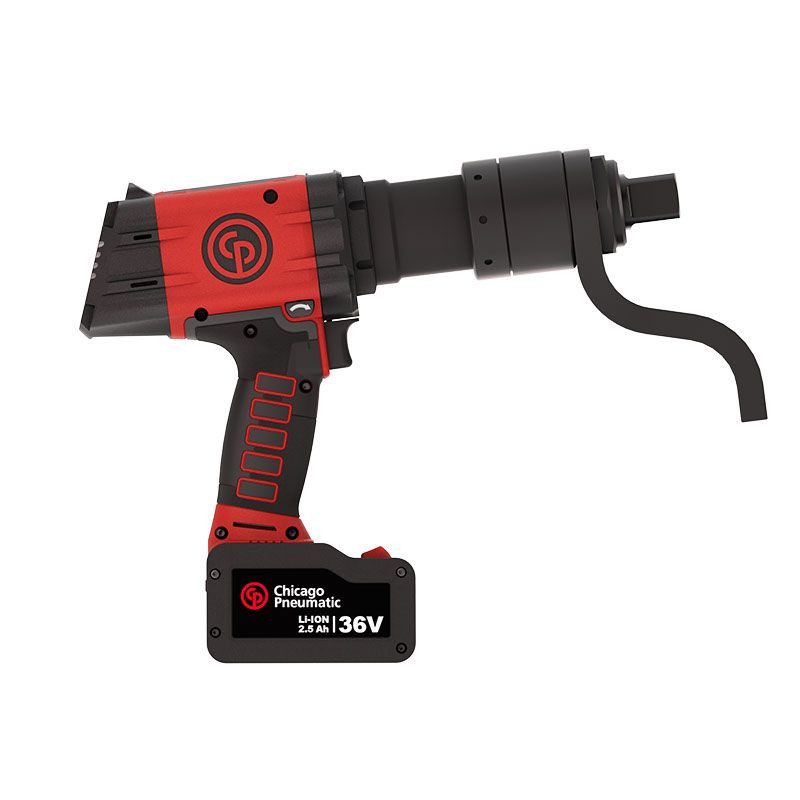

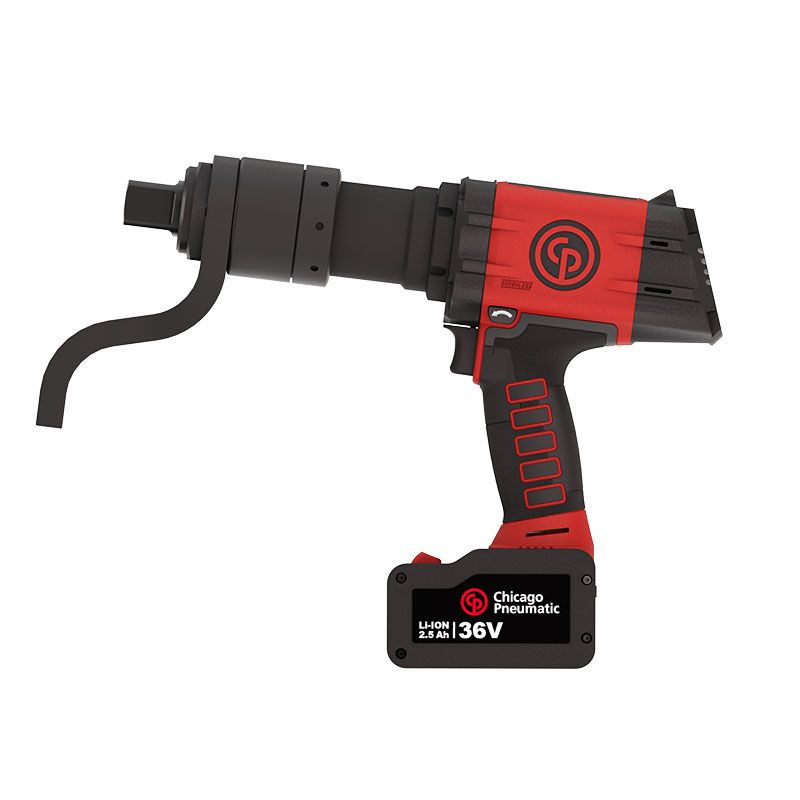

Chicago Pneumatic Battery Torque Wrench | CP8609CQ PACK 36V 2.5AH | 185 - 665 (ft-lbs) Torque Range | 1" Square Drive

Built for large-fastener tightening where cordless mobility, connected setup, and traceability are part of the fastening process, the Chicago Pneumatic CP8609CQ PACK 36V 2.5AH Battery Torque Wrench delivers a 185 - 665 ft-lbs torque range with ±4% accuracy. Its 1" square drive fits large industrial socket sets, while the included S-type reaction bar braces the tool against a fixed point so torque can be applied in a controlled, repeatable way.

As the Connected Quality version of the CP8609, this model supports connected tool setup through the OLED digital screen or CPLinQ app, plus angle tightening, counting sequence functions, and data collection for traceability. The 36V 2.5Ah lithium-ion battery platform keeps technicians mobile around fleet service bays, truck shops, transit maintenance areas, industrial equipment, and field service work without compressed-air setup. With 15 RPM free speed and hard and soft joint capability, the CP8609CQ supports controlled tightening on rigid metal-to-metal assemblies as well as joints with some compression from washers, spacers, or similar components.

Type: Battery Torque Wrench | Series: CP86 Series | Model: CP8609CQ PACK 36V 2.5AH | SKU: 6151571140 | Version: Connected Quality | Reaction Bar: S-Type Included | Drive Size: 1" | Drive Type: Square | Output Retainer: Hole | Torque Range: 185 - 665 ft-lbs / 250 - 900 Nm | Nominal Working Torque: 240 - 530 ft-lbs / 325 - 720 Nm | Recommended Torque: 531 ft-lbs / 720 Nm | Accuracy: ±4% | Free Speed: 15 RPM | Torque Control System: Shut-off-current control | Adjustment: Digital / CPLinQ App | Starting System: Double-Trigger | Joint Type: Hard & Soft | Handle Type: Pistol | Main Material: Steel | Battery: 36V 2.5Ah Lithium-Ion | Battery Capacity: 2.5Ah | Cycles Per Battery: 500 | Sound Pressure: 58 dB(A) | Sound Power: <83 dB(A) | Vibration: <2.5 m/s² | Weight with Battery and Reaction Arm: 12.5 lbs / 5.7 kg | Length: 13.43" / 341 mm | Height: 11.22" / 285 mm | Width: 3.03" / 77 mm | Side to Center: 1.32" / 33.5 mm

Features:

• Connected Quality version supports torque tightening, angle tightening, counting sequence functions, and data collection for traceability.
• OLED digital screen and CPLinQ app provide intuitive tool setup and connected workflow control.
• Counting sequence capability helps reduce missed tightenings during repeated fastening operations.
• High precision ±4% torque accuracy helps technicians tighten large fasteners within a defined target range.
• Included S-type reaction bar provides a fixed reaction point during controlled torque application.
• Double-trigger starting system includes a second start button for safer, more deliberate activation during high-torque work.
• Automatic release reaction arm helps avoid the tool staying blocked on the application after the tightening cycle.
• CP Care eligible, with calibration available as part of the preventive maintenance package or as a standalone service.

Kit Includes:

• 1 CP8609CQ dual-trigger battery torque wrench
• 1 S-type reaction bar
• 2 batteries
• 1 battery charger
• 1 charger cable
• 1 plastic case

Applications:

• Truck and fleet maintenance - controlled wheel and chassis fastening where repeatable torque and job records are useful.
• Bus and transit service - cordless 1" drive tightening for large vehicle hardware across high-use maintenance bays.
• Industrial maintenance and MRO - traceable fastening on machinery frames, fixtures, guards, and bolted equipment.
• Assembly and repair stations - repeated fastening work where counting sequence control helps reduce missed fasteners.
• Field service crews - battery-powered torque work where compressed air is unavailable, inconvenient, or slower to deploy.

FAQs:

• Q: What does the "CQ" version add on the CP8609CQ?
  A: "CQ" identifies the Connected Quality version. It supports connected setup through the OLED screen or CPLinQ app, plus angle tightening, counting sequence functions, and data collection for traceability.
• Q: Does the CP8609CQ PACK include a reaction bar?
  A: Yes. This pack includes one S-type reaction bar. The reaction bar must be positioned against a suitable reaction point before tightening so the tool can manage torque reaction safely and consistently.
• Q: Is this the Torque Check version?
  A: No. The CP8609CQ is the Connected Quality version. Torque Check functionality is reserved for CP8609TC models.
• Q: Does this pack include batteries and a charger?
  A: Yes. The CP8609CQ PACK includes the tool, S-type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, and 1 plastic case.
• Q: Is the CP8609CQ an impact wrench?
  A: No. This is a battery torque wrench for controlled tightening. It is used when target torque, accuracy, repeatability, and traceability matter more than impact-style breakaway force.
