Chicago Pneumatic Battery Torque Wrench | CP8609CQ-C PACK 36V 2.5AH | 220 - 665 (ft-lbs) Torque Range | 1" Square Drive

When high-torque wheel tightening requires process control and traceable fastening data, the Chicago Pneumatic CP8609CQ-C PACK 36V 2.5AH gives fleet, transit, and heavy equipment technicians a cordless 1" square drive battery torque wrench with a 220 - 665 ft-lbs torque range. This Connected Quality cup-style configuration uses a sliding drive reaction setup for use with spring-loaded or Japanese type reaction cup accessories. A reaction system helps absorb torque reaction, which is the twisting force created when the tool reaches final torque during high-load tightening.

Powered by a 36V 2.5 Ah lithium-ion battery, the CP8609CQ-C supports cordless movement around truck bays, bus garages, industrial maintenance areas, and mobile service vehicles. The 15 RPM free speed keeps rundown controlled, while ±4% torque accuracy helps support repeatable tightening on hard and soft joints. A hard joint is a rigid metal-to-metal fastening point, while a soft joint includes compression from washers, gaskets, or clamped materials. Connected Quality functions add angle tightening, counting sequence, and data collection for traceability through the OLED digital screen or CPLinQ app.

Type: Battery Torque Wrench | Series: CP8609 eBlueTork | Model: CP8609CQ-C PACK 36V 2.5AH | SKU: 6151570750 | Version: Connected Quality | Drive Size: 1" Square | Output Drive Type: Sq | Output Retainer Type: Dual | Reaction Bar Type: Sliding Drive | Starting System: Double-trigger | Torque Range: 220 - 665 ft-lbs / 300 - 900 Nm | Nominal Working Torque: 293 - 532 ft-lbs / 390 - 720 Nm | Recommended Torque: 531 ft-lbs / 720 Nm | Torque Control System: Shut-off-current control | Accuracy: ±4% | Free Speed: 15 RPM | Battery: 36V 2.5 Ah Li-ion | Sound Pressure: 62 dB(A) | Sound Power: <83 dB(A) | Vibration: <2.5 m/s² | Length: 14.96" / 380 mm | Width: 3.03" / 77 mm | Height: 11.22" / 285 mm | Side to Center: 1.32" / 33.5 mm | Weight: 12.3 lb / 5.6 kg | Country of Origin: HU

Kit Includes:

• 1 CP8609CQ-C dual trigger battery torque wrench
• 2 batteries
• 1 battery charger
• 1 charger cable
• 1 plastic case

Features:

• Torque tightening from 300 Nm / 220 ft-lbs to 900 Nm / 665 ft-lbs for controlled wheel and large fastener tightening.
• High precision ±4% torque scatter helps support safe, repeatable fastening procedures.
• Connected Quality configuration adds angle tightening, counting sequence, and data collection for traceability.
• Intuitive handling through the OLED digital screen of the tool or via the CPLinQ app.
• Fast and long-lasting gearbox dedicated to wheel tightening.
• Extended mobility with lightweight and compact 36V battery power.
• Automatic release reaction arm function helps streamline the tightening cycle after torque is reached.
• Double-trigger starting system supports deliberate activation during high-torque wheel fastening.

Applications:

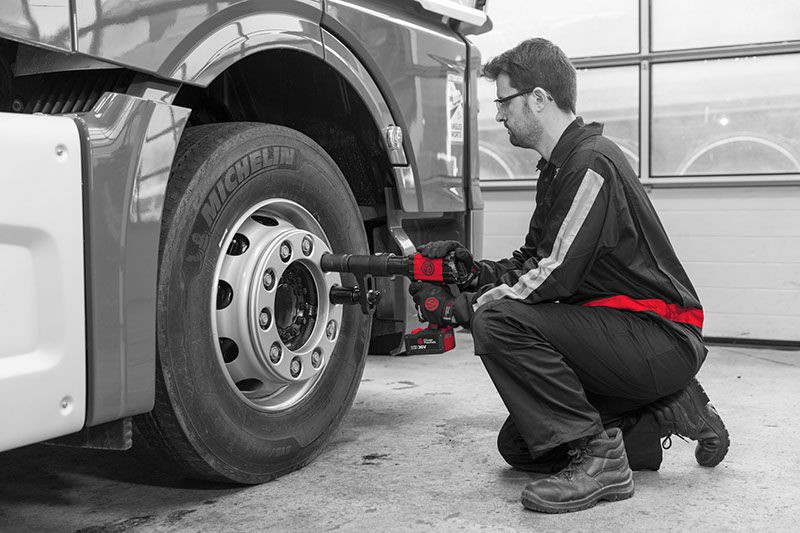

• Heavy truck and trailer service - controlled wheel fastening on Class 8 trucks, trailers, and commercial fleet vehicles.
• Bus and transit maintenance - repeatable lug nut tightening where service teams need process visibility and tightening records.
• Construction equipment repair - cordless torque work on large wheel and chassis fasteners for loaders, graders, haul trucks, and support equipment.
• Industrial MRO departments - high-torque bolting on large assemblies where controlled tightening and traceability are part of the work process.
• Mobile field service - battery-powered final tightening for roadside service, yard repair, and remote equipment maintenance.

FAQs:

• Q: What does "Connected Quality" add to the CP8609CQ-C?
  A: Connected Quality adds angle tightening, counting sequence, and data collection for traceability. These functions help teams manage tightening procedures and document fastening activity more effectively than a basic cordless torque wrench configuration.
• Q: What is the difference between the CP8609CQ-C and CP8609CQ-CT?
  A: Both are Connected Quality cup-style models, but the CP8609CQ-C uses a double-trigger starting system while the CP8609CQ-CT uses a single-trigger starting system. The correct choice depends on the shop’s preferred activation method and safety procedure.
• Q: Are the batteries and charger included with this pack?
  A: Yes. This pack includes the CP8609CQ-C dual trigger tool, 2 batteries, 1 battery charger, 1 charger cable, and 1 plastic case.
• Q: Does this tool include the reaction cup?
  A: No. This is a cup-style sliding drive model, but the spring-loaded cup or Japanese type cup accessory is not included. Select the correct reaction cup accessory for the wheel or fastener application before ordering.
• Q: Is this used the same way as an impact wrench?
  A: No. An impact wrench is typically used for removal and fast rundown, while the CP8609CQ-C is built for controlled final tightening. Many service teams use an impact wrench first, then use a battery torque wrench like this for the final torque-controlled pass.
