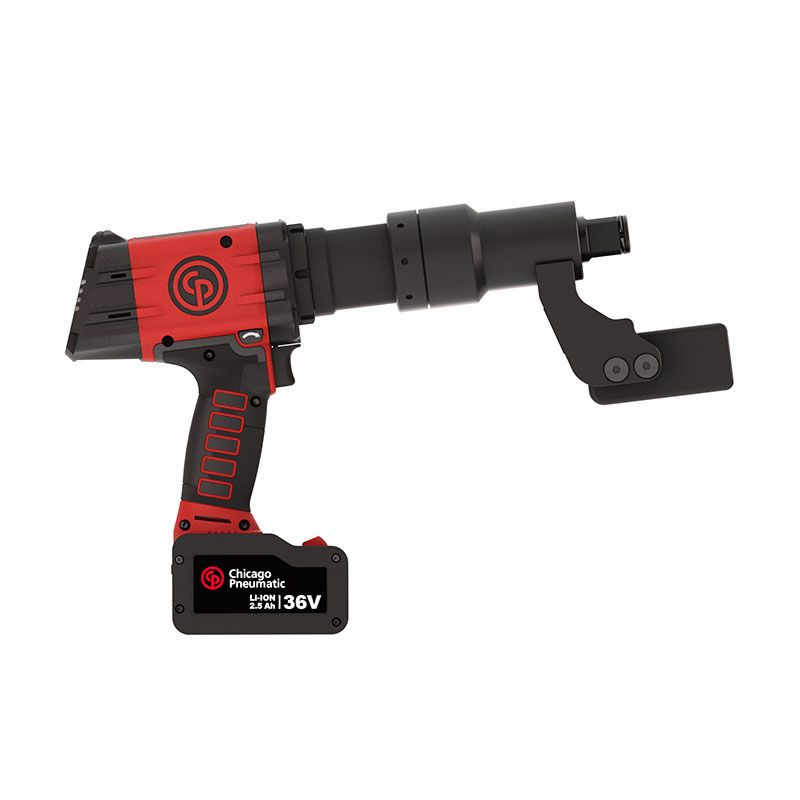

Chicago Pneumatic Battery Torque Wrench | CP8609C-B PACK 36V 2.5AH | 220 - 665 (ft-lbs) Torque Range | 1" Square Drive

Built for connected wheel and heavy-fastener tightening without a pneumatic supply line, the Chicago Pneumatic CP8609C-B PACK 36V 2.5AH Battery Torque Wrench delivers a 220-665 ft-lbs / 300-900 Nm torque tightening range in a 1" square drive cordless platform. The eBlueTork system uses shut-off-current control, meaning the tool electronically stops torque output once the selected value is reached. With ±4% torque accuracy, 15 RPM free speed, angle tightening capability, and a blade reaction arm included, this connected model is built for controlled high-torque fastening on trucks, buses, trailers, and fleet equipment.

This CP8609C-B pack includes the connected dual-trigger blade configuration, two 36V lithium-ion batteries, a battery charger, charger cable, and plastic case. The dual-trigger starting system requires deliberate operation during high-torque work, while the OLED digital screen and CPLinQ app compatibility support intuitive tool handling and connected setup. The blade reaction arm absorbs torque reaction during tightening and automatically releases after the cycle, helping technicians work more efficiently around heavy wheel assemblies and large service fasteners.

Type: Battery Torque Wrench | Model: CP8609C-B PACK 36V 2.5AH | SKU: 6151570510 | Series: CP8609 eBlueTork | Configuration: Connected Blade Reaction Arm, Dual Trigger | Drive Size: 1" | Drive Type: Square | Output Retainer Type: Dual | Torque Tightening Range: 220–665 ft-lbs / 300–900 Nm | Min Torque in Forward: 300 Nm / 221 ft-lbf | Max Torque in Forward: 900 Nm / 664 ft-lbf | Max Torque Reverse: 900 Nm / 665 ft-lbs | Recommended Torque: 720 Nm / 531 ft-lbf | Torque Accuracy: ±4% | Torque Control System: Shut-Off-Current Control | Free Speed: 15 RPM | Adjustment: Digital | Handle Type: Pistol | Starting System: Double-Trigger | Joint Type: Hard & Soft | Reaction Bar Type: Blade Included | Reversible: Yes | Suspension Option: Optional | Battery Voltage: 36V | Battery Capacity: 2.5Ah | Battery Type: Lithium-Ion | Battery Weight: 1.76 lb / 0.8 kg | Length: 14.96" / 380 mm | Height: 11.22" / 285 mm | Width: 3.03" / 77 mm | Side to Center: 1.32" / 33.5 mm | Weight without Reaction Arm: 12.8 lb / 5.8 kg | Weight with Reaction Arm: 13.9 lb / 6.3 kg | Sound Pressure: 62 dB(A) | Sound Power: <83 dB(A) | Vibration: <2.5 m/s² | Country of Origin: HU

Features:

• Connected eBlueTork configuration supports tool handling through the OLED digital screen or the CPLinQ app.
• 220-665 ft-lbs / 300-900 Nm tightening range supports large fasteners commonly found in truck, bus, trailer, and equipment service.
• 1" square drive accepts compatible 1" drive sockets for high-torque fastening work.
• Shut-off-current control automatically stops torque output when the selected value is reached.
• Angle tightening capability supports wheel and heavy-fastener procedures that require controlled angular tightening steps.
• Dual-trigger starting system requires deliberate operation during high-torque tightening.
• Blade reaction arm is included to absorb torque reaction during fastening.
• Automatic release reaction arm helps simplify tool removal after the tightening cycle.

Included Items:

• 1 CP8609C-B connected dual-trigger battery torque wrench.
• 2 lithium-ion batteries.
• 1 battery charger.
• 1 charger cable.
• 1 plastic case.

Applications:

• Heavy truck and bus service - controlled wheel tightening on large wheel assemblies within the tool’s rated torque range.
• Fleet maintenance - repeat torque work on trailers, tractors, chassis hardware, brackets, and large service fasteners where cordless mobility improves access.
• Commercial tire service - high-torque wheel tightening workflows where connected setup and cordless operation help standardize service work.
• Industrial maintenance - controlled tightening on equipment, frames, skids, and service hardware that require a 1" drive tool.
• Field repair and mobile service - high-torque fastening away from fixed shop air or hardwired power sources.

FAQs:

• Q: What torque range does the CP8609C-B cover?
  A: The CP8609C-B covers 220-665 ft-lbs / 300-900 Nm for tightening. This range is suited for large fasteners such as heavy vehicle wheel and chassis applications when the required torque falls within the tool's rating.
• Q: What is the difference between CP8609C-B and CP8609-B?
  A: The CP8609C-B is the connected blade version, while the CP8609-B is the standalone blade version. Both use a blade reaction arm and dual-trigger start, but the connected version supports CPLinQ app handling and angle tightening functionality.
• Q: What is included in the CP8609C-B pack?
  A: The pack includes one CP8609C-B connected dual-trigger tool, two batteries, one battery charger, one charger cable, and one plastic case.
• Q: Is this the same as an impact wrench?
  A: No. The CP8609C-B is a battery torque wrench with electronic shut-off-current control for controlled tightening. It is intended for torque-controlled fastening, not impact-style bolt breaking or general impact wrench use.
• Q: What sockets fit this tool?
  A: The CP8609C-B uses a 1" square drive. Use compatible 1" drive sockets and accessories that match the fastener, drive size, and torque requirements of the application.

Looking for more information about Chicago Pneumatic Cordless Torque Wrench? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Cordless Torque Wrenches for your assembly application, call (800) 608-5210 or email info@intlairtool.com
