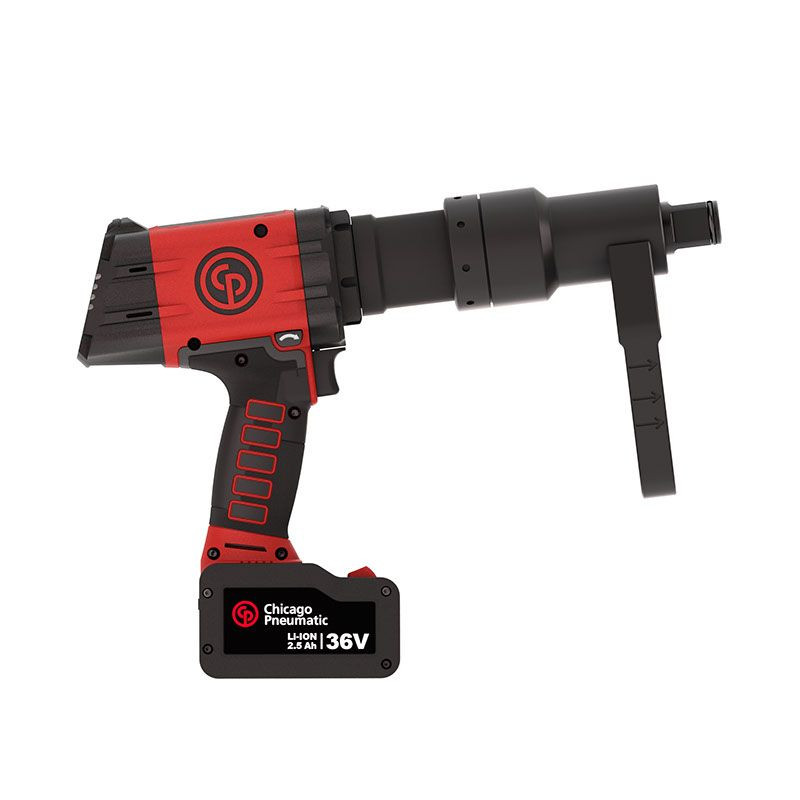

Chicago Pneumatic Battery Torque Wrench | CP8609-C PACK 36V 2.5AH | 220 - 665 (ft-lbs) Torque Range | 1" Square Drive

Built for controlled wheel and heavy-fastener tightening without a pneumatic supply line, the Chicago Pneumatic CP8609-C PACK 36V 2.5AH Battery Torque Wrench gives technicians a cordless 220-665 ft-lbs / 300-900 Nm torque tightening range in a 1" square drive platform. The eBlueTork system uses shut-off-current control, meaning the tool electronically stops torque output once the selected value is reached. With ±4% torque scatter, 15 RPM free speed, and a standard cup reaction configuration, this tool is suited for heavy vehicle, fleet, and wheel-service work where controlled torque and cordless mobility both matter.

This CP8609-C pack includes the dual-trigger cup configuration, two 36V lithium-ion batteries, a battery charger, charger cable, and plastic case. The dual-trigger starting system requires deliberate operation during high-torque work, while the digital adjustment system and OLED tool screen support setup directly on the tool. The cup reaction setup is used with compatible spring-loaded cup or Japanese-type cup accessories, which are available separately, making this version a fit for wheel-tightening workflows where cup-style reaction is preferred over a blade reaction arm.

Type: Battery Torque Wrench Kit | Model: CP8609-C PACK 36V 2.5AH | SKU: 6151570730 | Series: CP8609 eBlueTork | Configuration: Standard Cup Reaction, Dual Trigger | Drive Size: 1" | Drive Type: Square | Output Retainer Type: Dual | Torque Tightening Range: 220-665 ft-lbs / 300-900 Nm | Min Torque in Forward: 300 Nm | Max Torque in Forward: 900 Nm | Max Torque Reverse: 900 Nm / 665 ft-lbs | Recommended Torque: 720 Nm | Torque Scatter: ±4% | Torque Control System: Shut-Off-Current Control | Free Speed: 15 RPM | Adjustment: Digital | Handle Type: Pistol | Starting System: Double-Trigger | Joint Type: Hard & Soft | Reaction Bar Type: Sliding Drive | Reversible: Yes | Suspension Option: Optional | Battery Voltage: 36V | Battery Capacity: 2.5Ah | Battery Type: Lithium-Ion | Battery Weight: 0.8 kg | Length: 380 mm | Height: 285 mm | Width: 77 mm | Side to Center: 33.5 mm | Weight: 5.6 kg | Weight without Reaction Arm: 5.6 kg | Sound Pressure: 62 dB(A) | Sound Power: <83 dB(A) | Vibration: <2.5 m/s² | Country of Origin: HU

Features:

• High-precision tightening with ±4% torque scatter for controlled wheel and heavy-fastener applications.
• 220-665 ft-lbs / 300-900 Nm tightening range supports large fasteners commonly found in truck, bus, trailer, and equipment service.
• 1" square drive accepts compatible 1" drive sockets for high-torque service work.
• Shut-off-current control automatically stops torque output when the selected torque value is reached.
• Dual-trigger starting system requires deliberate tool operation during high-torque tightening.
• Standard cup reaction configuration supports wheel-tightening workflows when used with compatible cup accessories.
• Automatic release reaction arm helps simplify tool removal after the tightening cycle.
• Digital adjustment and OLED tool screen support intuitive setup directly on the tool.

Included Items:

• 1 CP8609-C dual-trigger battery torque wrench.
• 2 lithium-ion batteries.
• 1 battery charger.
• 1 charger cable.
• 1 plastic case.

Applications:

• Heavy truck and bus service - controlled wheel tightening on large wheel assemblies within the tool’s rated torque range.
• Fleet maintenance - repeat torque work on trailers, tractors, chassis hardware, brackets, and large service fasteners where cordless mobility improves access.
• Commercial tire service - cup-style reaction workflows where a battery torque wrench reduces dependence on pneumatic supply lines.
• Industrial maintenance - controlled tightening on equipment, frames, skids, and structural service hardware that require a 1" drive tool.
• Field repair and mobile service - high-torque tightening away from fixed shop air or hardwired power sources.

FAQs:

• Q: What torque range does the CP8609-C cover?
  A: Current Chicago Pneumatic product data lists the CP8609-C at 220-665 ft-lbs / 300-900 Nm for tightening. This makes it suitable for large wheel and chassis fasteners when the required torque falls within the tool's rated range.
• Q: What is the difference between CP8609-C and CP8609-B?
  A: The CP8609-C is the cup reaction configuration, while the CP8609-B is the blade reaction configuration. Both use the same 1" square drive and 300-900 Nm torque range, but they are set up for different reaction methods during tightening.
• Q: Is the reaction cup included with this kit?
  A: The manufacturer's included-items list does not list a reaction cup as included. Compatible cup accessories, such as the spring-loaded tube assembly or Japanese-type reaction cup, are shown by Chicago Pneumatic as separate accessories.
• Q: What is included in the CP8609-C pack?
  A: The pack includes one CP8609-C dual-trigger tool, two batteries, one battery charger, one charger cable, and one plastic case.
• Q: Is this the same as an impact wrench?
  A: No. The CP8609-C is a battery torque wrench with electronic shut-off-current control for controlled tightening. It is intended for torque-controlled fastening, not impact-style bolt breaking or general impact wrench use.
