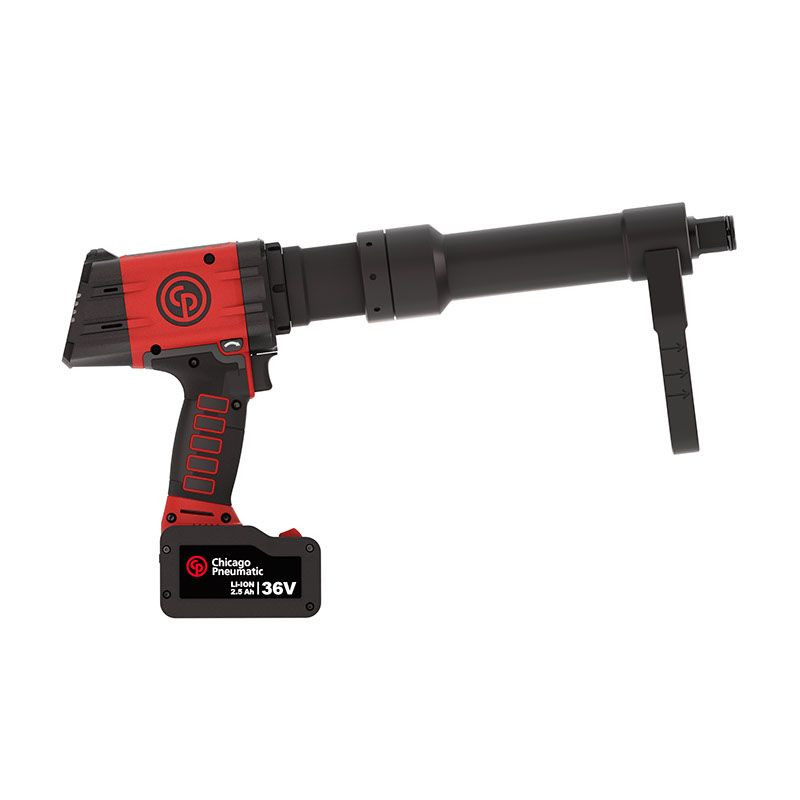

Chicago Pneumatic Battery Torque Wrench | CP8609C-xC PACK 36V 2.5AH | 220 - 665 (ft-lbs) Torque Range | 1" Square Drive

Built for controlled wheel tightening and high-torque fastening without an air line, the Chicago Pneumatic CP8609C-xC PACK 36V 2.5AH battery torque wrench delivers a 220 - 665 ft-lbs tightening range with ±4% accuracy for repeatable torque control on hard and soft joints. Its 1" square drive fits large industrial sockets, while the extended Cup reaction bar configuration helps position the reaction point around wheel and bolting applications where standard reaction geometry may not reach.

The CP8609C-xC is part of the CP8609 eBlueTork Series and uses a 36V 2.5Ah lithium-ion battery for mobile operation in fleet, tire, rail, plant maintenance, and heavy vehicle service environments. Digital adjustment through the tool’s OLED display, plus CPLinQ app connectivity, gives technicians controlled setup and job management without relying on a pneumatic supply. The double-trigger starting system adds a deliberate second-start safety action, helping reduce accidental activation during setup and positioning.

Type: Battery Torque Wrench | Series: CP8609 eBlueTork | Model: CP8609C-xC PACK 36V 2.5AH | SKU: 6151570790 | Version: Connected | Reaction Bar: Extended Cup | Drive Size: 1" | Drive Type: Square | Torque Range: 220 - 665 ft-lbs / 300 - 900 Nm | Nominal Working Torque: 293 - 532 ft-lbs / 390 - 720 Nm | Accuracy: ±4% | Free Speed: 15 RPM | Battery: 36V 2.5Ah Lithium-Ion | Cycles Per Battery: 500 | Sound Pressure: 62 dB(A) | Vibration: <2.5 m/s² | Weight with Battery and Reaction Arm: 20.6 lbs with standard cup / 19.9 lbs with Japanese type cup | Length: 19.49" | Height: 11.22" | Width: 3.03"

Features:

• High precision ±4% torque control helps support repeatable tightening on large wheel and bolting applications.
• Extended Cup reaction bar configuration is suited for spring loaded cup or Japanese type cup use; cup accessories are not included.
• Digital OLED display allows torque setup and tool feedback directly at the wrench.
• CPLinQ application connectivity supports tool status follow-up, operation alerts, maintenance timeline tracking, angle control, and P-Set library management.
• Automatic release reaction arm helps simplify repositioning after the tightening cycle.
• Double safety button starting system provides a second start safety trigger for more deliberate tool activation.
• Tool lock and finder functions support connected tool management in shared service bays, tire shops, and maintenance fleets.
• Fast gearbox dedicated to wheel tightening helps reduce cycle time compared with manual torque methods.

Kit Includes:

• 1 CP8609C-xC battery torque wrench
• 2 batteries
• 1 battery charger
• 1 charger cable / power cord
• 1 manual
• Calibration certificate
• 1 plastic case

Applications:

• Heavy truck and fleet service - controlled wheel tightening on large vehicles where repeatable torque is required.
• Tire service operations - tightening lug nuts within a defined torque range while maintaining cordless mobility around the bay.
• Rail and transportation maintenance - fastening work on large wheel, axle, and service components that require a 1" square drive tool.
• Industrial maintenance and MRO - torque-controlled assembly and repair work on large equipment, fixtures, and bolted machinery.
• Field service crews - mobile bolting work where compressed air access is limited or inconvenient.

FAQs:

• Q: What does the "C" version mean on CP8609C-xC?
  A: The "C" version is the Connected model. It includes CPLinQ application connectivity for tool status follow-up, operation alerts, maintenance timeline functions, angle control, and P-Set library support.
• Q: What does "xC" mean on this model?
  A: The "xC" configuration refers to the Extended Cup reaction bar version. It is used with compatible cup accessories, but the cup itself is not included with the reaction bar.
• Q: Does this pack include batteries and a charger?
  A: Yes. This PACK version includes 2 batteries, 1 battery charger, a charger cable/power cord, manual, calibration certificate, and plastic case.
• Q: Is this an impact wrench?
  A: No. This is a battery torque wrench for controlled tightening. Unlike an impact wrench, it is used when the final torque value and repeatability matter.
• Q: Can this tool be used for general automotive DIY work?
  A: This tool is sized for large 1" drive torque applications and is best matched to fleet, truck, tire, and industrial service work. It is more tool than most passenger car or home garage applications require.
