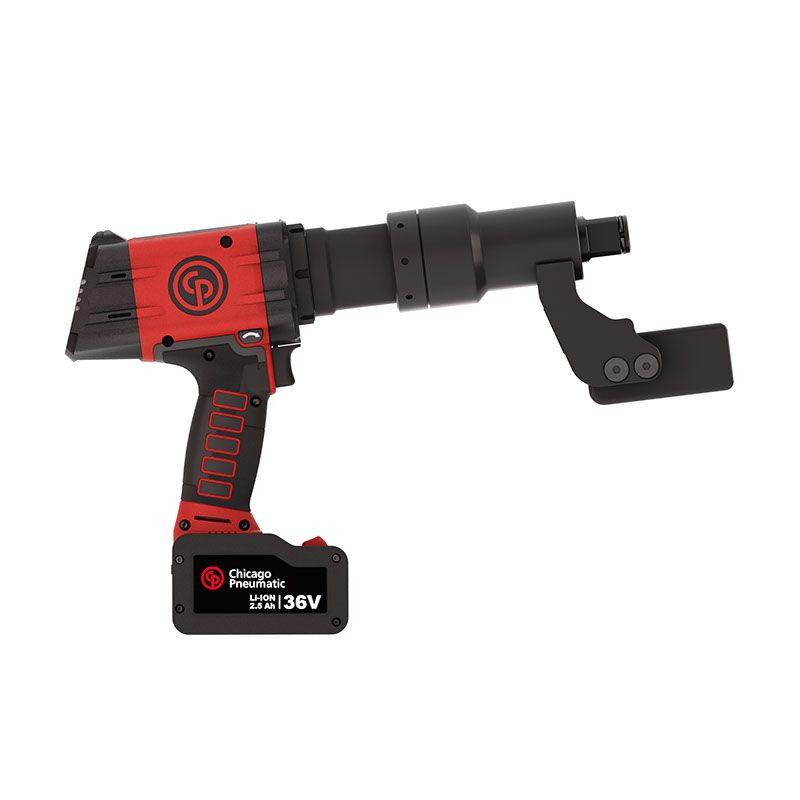

Chicago Pneumatic Battery Torque Wrench | CP8609CQ-B PACK 36V 2.5AH | 220 - 665 (ft-lbs) Torque Range | 1" Square Drive

When large wheel fasteners need more than a standard impact-and-manual-check process, the Chicago Pneumatic CP8609CQ-B PACK 36V 2.5AH gives fleet and equipment service teams a cordless 1" square drive battery torque wrench with a 220 - 665 ft-lbs torque range. This Connected Quality model adds angle tightening, counting sequence, and traceability functions, helping technicians tighten with more control while giving supervisors better visibility into the fastening process. The blade reaction arm absorbs torque reaction, which is the twisting force created when the tool reaches final torque.

Powered by a 36V 2.5 Ah lithium-ion battery, the CP8609CQ-B supports high-torque wheel and equipment fastening without air hoses or plug-in power. Its 15 RPM free speed keeps rundown controlled, while ±4% torque accuracy helps maintain repeatable tightening across hard and soft joints. A hard joint is a rigid metal-to-metal fastening point, while a soft joint includes compression from gaskets, washers, or clamped materials. Setup can be handled through the OLED digital screen or CPLinQ app, including data collection for traceability.

Type: Battery Torque Wrench | Series: CP8609 eBlueTork | Model: CP8609CQ-B PACK 36V 2.5AH | SKU: 6151570520 | Version: Connected Quality | Drive Size: 1" Square | Output Drive Type: Sq | Output Retainer Type: Dual | Reaction Bar Type: Blade included | Starting System: Double-trigger | Torque Range: 220 - 665 ft-lbs / 300 - 900 Nm | Recommended Torque: 531 ft-lbs / 720 Nm | Torque Control System: Shut-off-current control | Accuracy: ±4% | Free Speed: 15 RPM | Battery: 36V 2.5 Ah Li-ion | Sound Pressure: 62 dB(A) | Sound Power: <83 dB(A) | Vibration: <2.5 m/s² | Length: 14.96" / 380 mm | Width: 3.03" / 77 mm | Height: 11.22" / 285 mm | Side to Center: 1.32" / 33.5 mm | Weight: 12.8 lb / 5.8 kg | Weight with Reaction Arm: 13.9 lb / 6.3 kg | Country of Origin: HU

Kit Includes:

• 1 CP8609CQ-B dual trigger battery torque wrench
• 2 batteries
• 1 battery charger
• 1 charger cable
• 1 plastic case

Features:

• Torque tightening from 300 Nm / 220 ft-lbs to 900 Nm / 665 ft-lbs for controlled wheel and large fastener work.
• High precision ±4% torque scatter helps support safer, more repeatable tightening procedures.
• Connected Quality configuration adds angle tightening, counting sequence, and data collection for traceability.
• Intuitive handling through the OLED digital screen of the tool or via the CPLinQ app.
• Fast and long-lasting gearbox dedicated to wheel tightening.
• Extended mobility with lightweight and compact 36V battery power.
• Automatic release reaction arm helps streamline the tightening cycle after torque is reached.
• Double-trigger starting system supports deliberate activation during high-torque fastening.

Applications:

• Heavy truck and fleet service - controlled lug nut tightening on commercial trucks, trailers, and high-mileage fleet vehicles.
• Bus and transit maintenance - repeatable wheel fastening where service teams need consistent torque and traceable tightening data.
• Construction and mining equipment repair - high-torque fastening on large wheel, chassis, and machinery hardware in shop or field environments.
• Industrial MRO departments - cordless torque work on large assemblies where dragging an air hose through the work area is impractical.
• Mobile service operations - battery-powered tightening for road service, yard work, and remote equipment repair.

FAQs:

• Q: What does "Connected Quality" add to this CP8609CQ-B model?
  A: Connected Quality adds angle tightening, counting sequence, and data collection for traceability. This helps teams document and manage tightening activity more effectively than a basic cordless torque wrench configuration.
• Q: Are the batteries and charger included?
  A: Yes. This pack includes the CP8609CQ-B dual trigger tool, 2 batteries, 1 battery charger, 1 charger cable, and 1 plastic case.
• Q: Is this a replacement for an impact wrench?
  A: Not exactly. An impact wrench is typically used for fast rundown and removal, while the CP8609CQ-B is built for controlled final tightening. Many shops use an impact wrench for removal and initial rundown, then use a torque wrench like this for controlled tightening.
• Q: What is the purpose of the blade reaction arm?
  A: The blade reaction arm braces against a fixed reaction point so the torque load is not transferred back into the operator’s hands. This is important on high-torque wheel and equipment fasteners.
• Q: What is the recommended operating torque?
  A: The full torque range is 220 - 665 ft-lbs / 300 - 900 Nm, and the manufacturer lists a recommended torque of 531 ft-lbs / 720 Nm. Always follow the service procedure and torque specification for the wheel or fastener being tightened.
