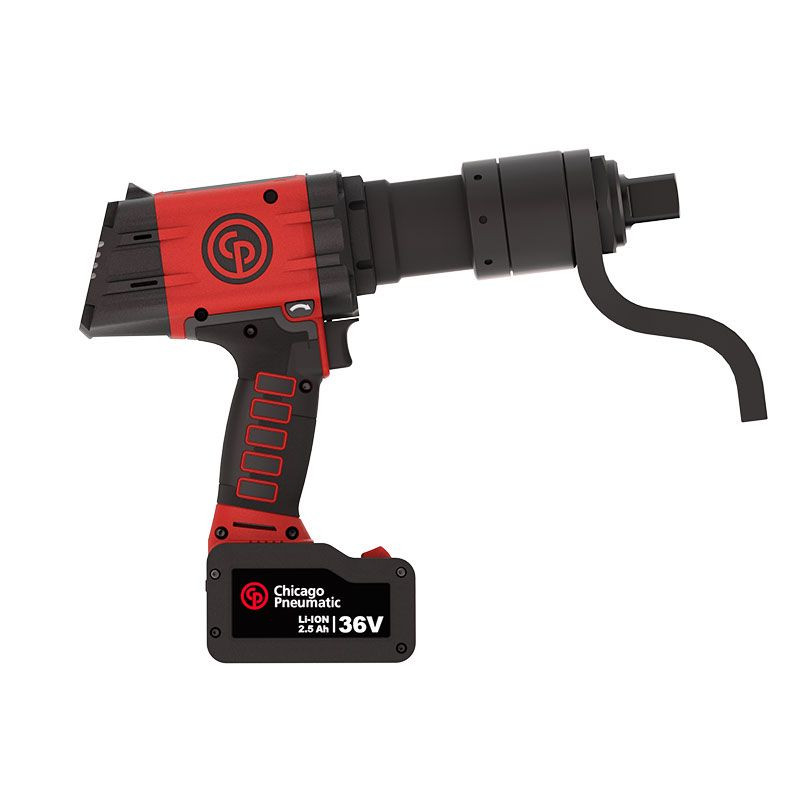

Chicago Pneumatic Battery Torque Wrench | CP8609C PACK 36V 2.5AH | 185 - 665 (ft-lbs) Torque Range | 1" Square Drive

Built for large-fastener tightening where cordless mobility and connected setup control are important, the Chicago Pneumatic CP8609C PACK 36V 2.5AH Battery Torque Wrench delivers a 185 - 665 ft-lbs torque range with ±4% accuracy. Its 1" square drive fits large industrial socket sets, while the included S-type reaction bar braces the tool against a fixed point so torque can be applied in a controlled, repeatable way.

As the Connected version of the CP8609, this model gives technicians torque setup through the OLED digital screen or through the CPLinQ app for more flexible tool control. The 36V 2.5Ah lithium-ion battery platform keeps the wrench mobile around fleet service bays, truck shops, transit maintenance areas, and field equipment without compressed-air setup. With 15 RPM free speed, angle tightening capability, and hard and soft joint capability, the CP8609C supports controlled fastening on rigid metal-to-metal joints as well as assemblies with some compression from washers, spacers, or similar components.

Type: Battery Torque Wrench | Series: CP86 Series | Model: CP8609C PACK 36V 2.5AH | SKU: 6151571130 | Version: Connected | Reaction Bar: S-Type Included | Drive Size: 1" | Drive Type: Square | Output Retainer: Hole | Torque Range: 185 - 665 ft-lbs / 250 - 900 Nm | Nominal Working Torque: 240 - 530 ft-lbs / 325 - 720 Nm | Recommended Torque: 531 ft-lbs / 720 Nm | Accuracy: ±4% | Free Speed: 15 RPM | Torque Control System: Shut-off-current control | Adjustment: Digital / CPLinQ App | Starting System: Double-Trigger | Joint Type: Hard & Soft | Handle Type: Pistol | Main Material: Steel | Battery: 36V 2.5Ah Lithium-Ion | Battery Capacity: 2.5Ah | Cycles Per Battery: 500 | Sound Pressure: 58 dB(A) | Sound Power: <83 dB(A) | Vibration: <2.5 m/s² | Weight without Reaction Arm: 9.26 lbs / 4.2 kg | Weight with Reaction Arm: 10.7 lbs / 4.86 kg | Length: 13.43" / 341 mm | Height: 11.22" / 285 mm | Width: 3.03" / 77 mm | Side to Center: 1.32" / 33.5 mm

Features:

• Connected version supports intuitive handling through the OLED digital screen on the tool or through the CPLinQ app.
• Angle tightening capability supports fastening procedures that require rotation-based control in addition to torque setup.
• High precision ±4% torque accuracy helps technicians tighten large fasteners within a defined target range.
• Included S-type reaction bar provides a fixed reaction point during controlled torque application.
• Double-trigger starting system includes a second start button for safer, more deliberate activation during high-torque work.
• Shut-off-current control helps stop the tool when the programmed torque target is reached.
• Automatic release reaction arm helps avoid the tool staying blocked on the application after the tightening cycle.
• CP Care eligible, with calibration available as part of the preventive maintenance package or as a standalone service.

Kit Includes:

• 1 CP8609C dual-trigger battery torque wrench
• 1 S-type reaction bar
• 2 batteries
• 1 battery charger
• 1 charger cable
• 1 plastic case

Applications:

• Truck and fleet maintenance - controlled wheel and chassis fastening where repeatable final torque is required.
• Bus and transit service - cordless 1" drive tightening for large vehicle hardware in busy maintenance bays.
• Industrial maintenance and MRO - torque-controlled fastening on machinery frames, fixtures, guards, and bolted equipment.
• Heavy equipment service - large-fastener tightening where connected setup and battery-powered mobility help streamline the job.
• Field service crews - mobile torque work in locations where compressed air is unavailable, inconvenient, or slower to deploy.

FAQs:

• Q: What does the "C" version add on the CP8609C?
  A: The "C" version is the Connected model. It allows torque setup through the OLED digital screen or through the CPLinQ app and includes angle tightening capability.
• Q: Does the CP8609C PACK include a reaction bar?
  A: Yes. This pack includes one S-type reaction bar. The reaction bar must be positioned against a suitable reaction point before tightening so the tool can manage torque reaction safely and consistently.
• Q: Does this model include Torque Check or counting sequence functions?
  A: No. The CP8609C is the Connected version. Counting sequence functions are reserved for CQ and TC versions, and Torque Check functionality is reserved for TC versions.
• Q: Does this pack include batteries and a charger?
  A: Yes. The CP8609C PACK includes the tool, S-type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, and 1 plastic case.
• Q: Is the CP8609C an impact wrench?
  A: No. This is a battery torque wrench for controlled tightening. It is used when target torque, accuracy, repeatability, and connected setup control matter more than impact-style breakaway force.
