United Abrasives Tapered Cartridge Roll | 38319 | 1/2" Diameter | 60 Grit | Sold by Box of 100

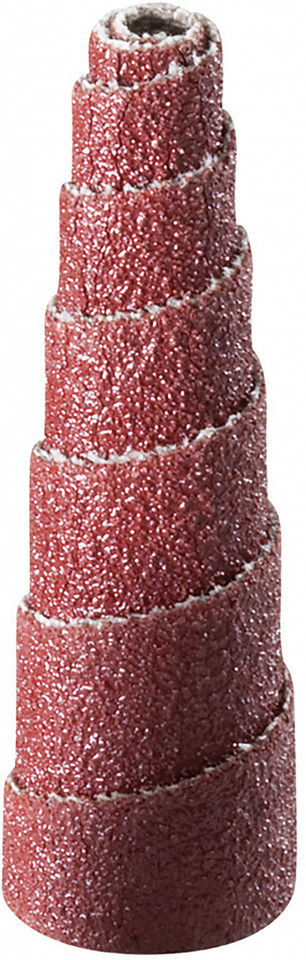

For removing machining burrs, blending uneven edges, and preparing angled recesses on metal components, the United Abrasives 38319 Tapered Cartridge Roll provides coarse-to-intermediate sanding action with a narrow, pointed working profile. Featuring a 1/2" base diameter, 1-1/2" length, and 60-grit premium aluminum oxide abrasive, this roll is suited to localized deburring, flash removal, and surface preparation before finer finishing. Its full-taper shape narrows toward the tip, allowing operators to work along internal fillets, intersecting surfaces, tapered openings, and recessed contours where a straight cylindrical roll may be difficult to position. The 60-grit abrasive balances material removal with a finer scratch pattern than the coarser 50-grit alternative.

The United Abrasives 38319 uses a multi-layer, self-dressing construction, meaning fresh cutting abrasive is exposed as successive layers wear away to help maintain sanding effectiveness. Its 1/8" arbor opening corresponds to the manufacturer-listed 95104 cartridge roll mandrel for compatible mounting. The 26,000 RPM maximum operating speed establishes the upper speed limit for the abrasive and must be considered when selecting a die grinder and mounting accessory. Compared with the shorter 38312 model, its 1-1/2" abrasive length provides additional working contact along extended angled recesses where sufficient clearance is available. Suitable workpiece materials include ferrous metals, non-ferrous metals, stainless steel, and high-tensile steel. The 38319 is supplied in a box of 100 for recurring machining, fabrication, and maintenance applications.

Type: Tapered Cartridge Roll | Part Number: 38319 | Abrasive Material: Premium Aluminum Oxide | Base Diameter: 1/2" | Length: 1-1/2" | Arbor: 1/8" | Grit: 60 | Max RPM: 26,000 | Recommended Mandrel: 95104 | Quantity: 100 per Box | Material Application: Ferrous Metals, Non-Ferrous Metals, Stainless Steel, High-Tensile Steel

Features:

• Premium aluminum oxide abrasive grain supports deburring, sanding, and surface blending on ferrous and non-ferrous metal components.
• 60-grit abrasive provides cutting action for removing machining burrs, localized flash, and rough surface marks before finer finishing operations.
• Full-taper configuration narrows toward the tip to help reach angled recesses, internal corners, fillets, and irregular metal contours.
• 1/2" base diameter provides useful abrasive contact near the wider end of the roll while allowing more focused sanding toward the tip.
• 1-1/2" abrasive length supports work along extended recessed contours where adequate clearance is available.
• Multi-layer, self-dressing construction exposes fresh abrasive grain as successive layers wear away, helping sustain cutting effectiveness.

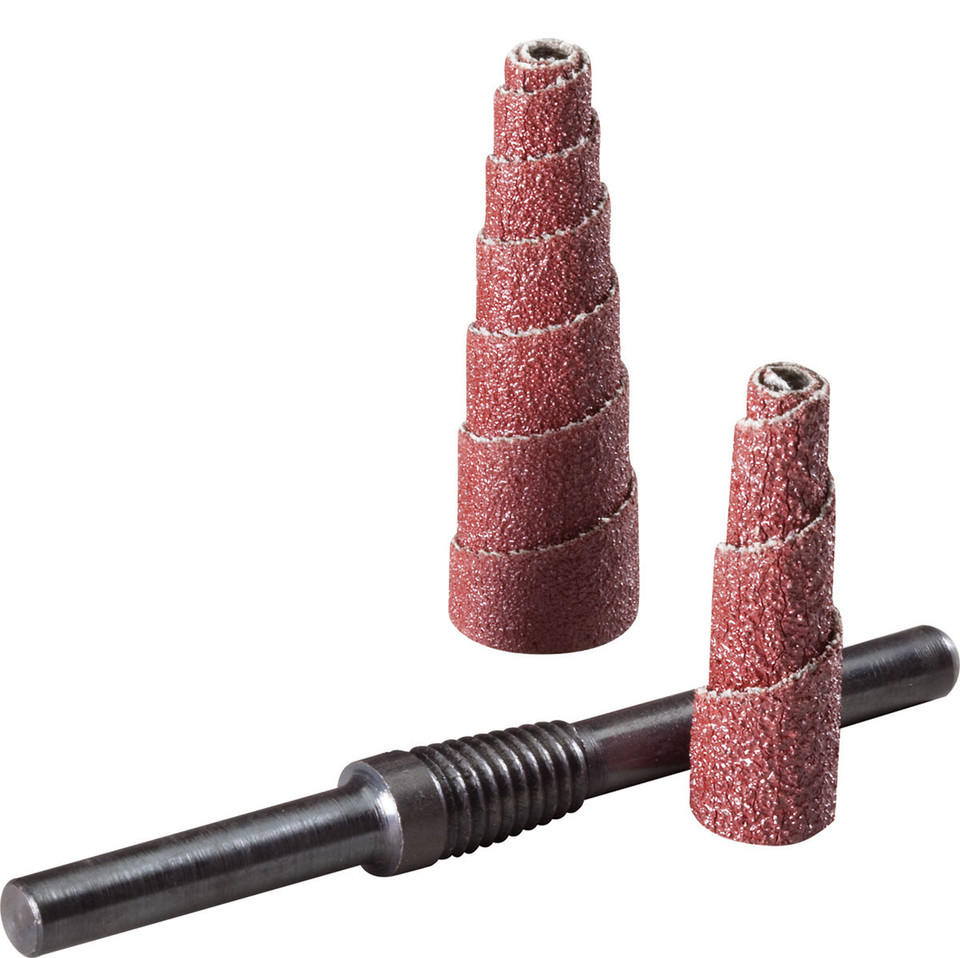

• 1/8" arbor configuration corresponds to manufacturer-listed cartridge roll mandrel 95104 for appropriately matched mounting.
• Quick removal and installation facilitate abrasive replacement, while the box quantity of 100 supports routine replenishment.

Applications:

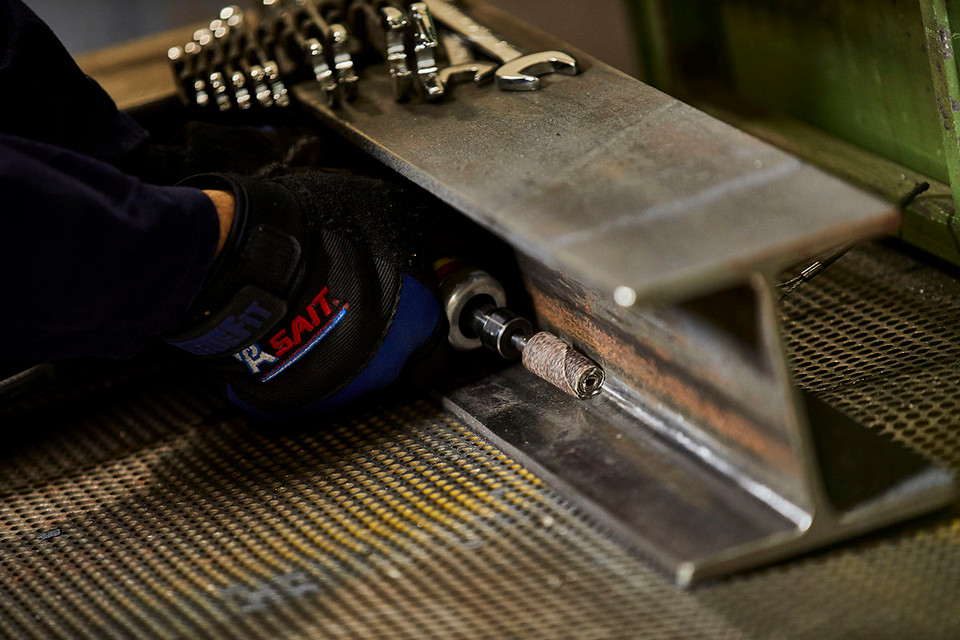

• Machining and CNC operations - Removing burrs and blending cutter marks around angled openings, recessed pockets, and internal fillets.
• Tool and die manufacturing - Sanding accessible tooling cavities, tapered features, and elongated recessed contours requiring localized abrasive contact.
• Metal fabrication - Cleaning up cutting flash and smoothing rough edges around contoured metal components before further finishing.
• Stainless steel and alloy steel processing - Performing localized deburring and initial surface preparation on stainless steel and high-tensile steel workpieces.
• Industrial equipment maintenance - Preparing recessed fittings, accessible internal corners, and irregular metal repair areas for refurbishment.

FAQs:

• Q: How does United Abrasives 38319 differ from 38318?
  A: Both tapered cartridge rolls have a 1/2" base diameter, 1-1/2" length, 1/8" arbor opening, and 26,000 RPM maximum operating speed. The 38319 uses 60-grit abrasive for coarse-to-intermediate sanding, while the 38318 uses coarser 50-grit abrasive for more aggressive material removal.
• Q: What is the difference between the 38319 and 38312?
  A: Both models feature a 1/2" base diameter, 60-grit abrasive, and 1/8" arbor opening. The 38319 is 1-1/2" long, compared with the 1" length of the 38312. The longer roll provides additional abrasive contact in accessible recessed features.
• Q: Should I choose the 60-grit 38319 or the 80-grit 38320?
  A: Choose the 38319 when burr removal and cutting action are the primary concerns. The finer 80-grit 38320 is better suited to intermediate sanding and reducing marks left by coarser surface preparation.
• Q: Why use a tapered cartridge roll instead of a straight cartridge roll?
  A: A tapered roll narrows toward its tip, helping the abrasive reach angled corners and irregular contours. Straight rolls maintain a uniform cylindrical surface and may provide more consistent contact along parallel side walls and straight grooves.
• Q: Is United Abrasives 38319 suitable for stainless steel?
  A: Yes. United Abrasives identifies stainless steel and high-tensile steel among its suitable workpiece materials, along with ferrous and non-ferrous metals. Use dedicated abrasives when preventing cross-contamination from previous carbon steel work is important.
• Q: Which mandrel and speed rating apply to SKU 38319?
  A: The United Abrasives 2025-2026 catalog lists mandrel part number 95104 for this 1/8" arbor, 1-1/2" long tapered cartridge roll. The maximum operating speed is 26,000 RPM. Confirm secure mounting, shank compatibility, and applicable speed ratings before operation.

Looking for more information about United Abrasives Tapered Cartridge Roll? Click here to view the Catalog

For help choosing the correct United Abrasives Tapered Cartridge Rolls for your application, please call (800) 608-5210 or email info@intlairtool.com
