United Abrasives Tapered Cartridge Roll | 38307 | 3/8" Diameter | 80 Grit | Sold by Box of 100

For blending machining marks inside angled grooves, refining recessed contours, and removing minor burrs from hard-to-reach metal surfaces, the United Abrasives 38307 Tapered Cartridge Roll provides intermediate sanding action with an extended, narrowing abrasive profile. This model features a 3/8" base diameter, 1-1/2" length, and 80-grit premium aluminum oxide abrasive. Its full-taper design helps operators follow internal fillets, tapered openings, corners, and irregularly shaped recesses where a straight cartridge roll may not provide suitable contact. The 80-grit construction is especially useful for smoothing residual machining marks and refining surfaces after initial deburring, offering a finer scratch pattern than the comparable 60-grit version.

The United Abrasives 38307 incorporates a multi-layer, self-dressing construction, which exposes fresh cutting abrasive as successive layers wear away to help maintain effective sanding action. Its 1/8" arbor opening corresponds to the manufacturer-specified 95104 cartridge roll mandrel for compatible mounting. The 26,000 RPM maximum operating speed establishes the upper speed limit for the abrasive and must be considered when selecting a rotary tool and mandrel. Compared with the shorter 38301 model, its 1-1/2" length provides additional abrasive contact along elongated angled features where sufficient clearance is available. United Abrasives identifies ferrous metals, non-ferrous metals, stainless steel, and high-tensile steel as suitable workpiece materials. The 38307 is supplied in a box of 100 for recurring machining and metal finishing operations.

Type: Tapered Cartridge Roll | Part Number: 38307 | Abrasive Material: Premium Aluminum Oxide | Base Diameter: 3/8" | Length: 1-1/2" | Arbor: 1/8" | Grit: 80 | Max RPM: 26,000 | Recommended Mandrel: 95104 | Quantity: 100 per Box | Material Application: Ferrous Metals, Non-Ferrous Metals, Stainless Steel, High-Tensile Steel

Features:

• Premium aluminum oxide abrasive grain supports deburring, sanding, and surface blending on ferrous and non-ferrous metal components.
• 80-grit abrasive helps remove light burrs and reduce machining marks while producing a finer sanding pattern than coarser abrasive grades.
• Full-taper profile narrows toward the tip for better access to angled recesses, internal corners, fillets, and contoured metal features.
• 3/8" base diameter offers a compact abrasive working area for localized finishing in relatively narrow openings.
• Extended 1-1/2" length provides additional contact along elongated internal contours compared with shorter tapered cartridge rolls.
• Multi-layer, self-dressing construction exposes sharp, fresh abrasive as successive layers wear away.

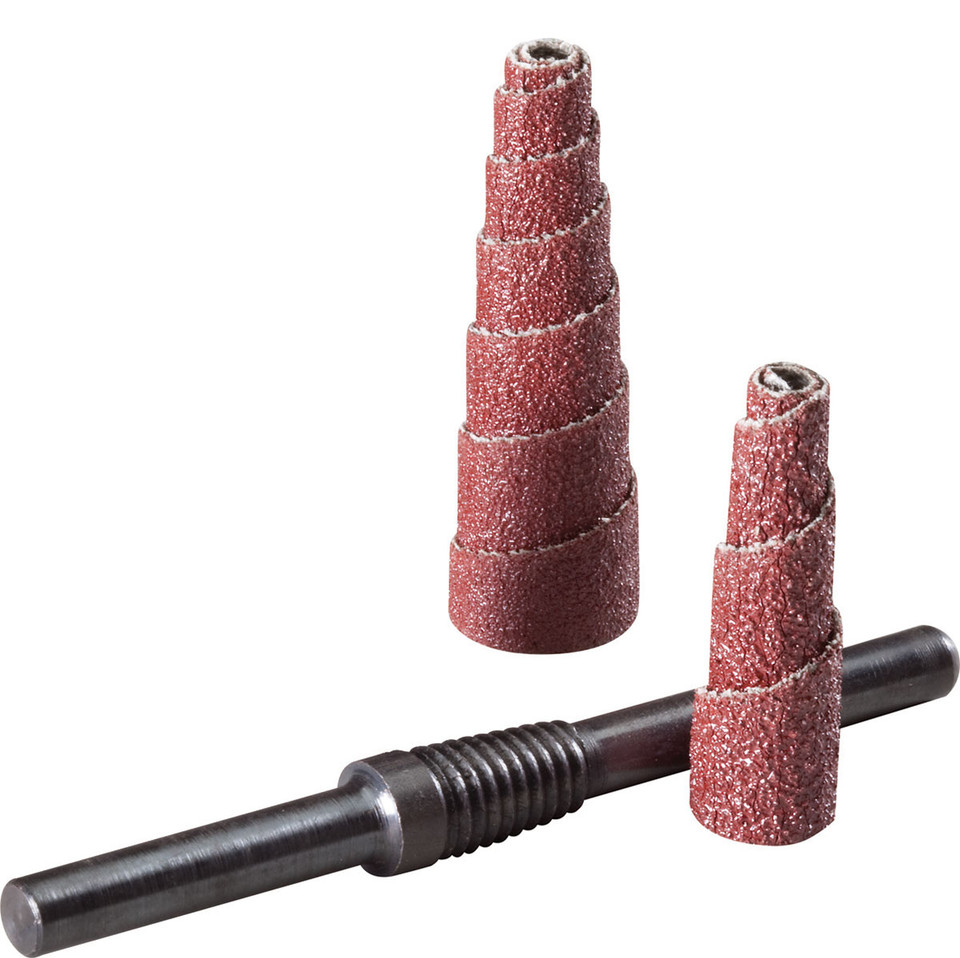

• 1/8" arbor opening corresponds to United Abrasives mandrel part number 95104 for appropriately matched mounting.
• Quick removal and installation help facilitate abrasive changes, while the box quantity of 100 supports routine shop replenishment.

Applications:

• Precision machining and CNC finishing - Blending cutter marks and removing small burrs from angled openings, extended internal fillets, and recessed machined features.
• Tool and die manufacturing - Refining tooling cavities, tapered contours, and accessible internal corners requiring a narrowing abrasive shape.
• Metal fabrication - Smoothing localized rough edges and reducing surface imperfections in contoured metal recesses after initial deburring.
• Stainless steel and alloy steel processing - Performing intermediate sanding on recessed stainless steel and high-tensile steel components.
• Industrial equipment maintenance - Refining accessible angled recesses, contoured fittings, and internal metal features during component repair.

FAQs:

• Q: What is the difference between United Abrasives 38307 and 38306?
  A: Both tapered cartridge rolls have a 3/8" base diameter, 1-1/2" length, 1/8" arbor opening, and 26,000 RPM maximum operating speed. The 38307 uses 80-grit abrasive for intermediate sanding and surface blending, while the 38306 uses coarser 60-grit abrasive for more aggressive burr removal.
• Q: How does the 38307 compare with the shorter 38301?
  A: Both models feature a 3/8" base diameter, 80-grit abrasive, and 1/8" arbor opening. The 38307 is 1-1/2" long, while the 38301 is 1" long. The longer model provides additional working contact along deeper contours where sufficient clearance is available.
• Q: When should I choose 80 grit instead of 120 grit?
  A: Choose 80 grit when minor burrs and visible machining marks still require material removal. The finer 120-grit United Abrasives 38308 is better suited to reducing residual sanding scratches and refining surfaces after intermediate blending.
• Q: What is the advantage of a tapered cartridge roll?
  A: The roll narrows toward its tip, helping the abrasive reach angled recesses, internal fillets, and irregular metal contours. Straight cartridge rolls maintain a uniform cylindrical shape and may provide more consistent contact along parallel side walls.
• Q: Which mandrel is specified for United Abrasives part number 38307?
  A: The United Abrasives 2025-2026 catalog identifies mandrel part number 95104 for this 1/8" arbor, 1-1/2" long tapered cartridge roll. Verify secure mounting engagement, shank fit, and operating speed compatibility before use.
• Q: Can the 38307 be used on stainless steel, and how is it packaged?
  A: Yes. United Abrasives lists stainless steel and high-tensile steel among the suitable materials, along with ferrous and non-ferrous metals. The 38307 is sold in a box of 100 tapered cartridge rolls. Use dedicated abrasives where preventing stainless steel contamination is important.

Looking for more information about United Abrasives Tapered Cartridge Roll? Click here to view the Catalog

For help choosing the correct United Abrasives Tapered Cartridge Rolls for your application, please call (800) 608-5210 or email info@intlairtool.com
