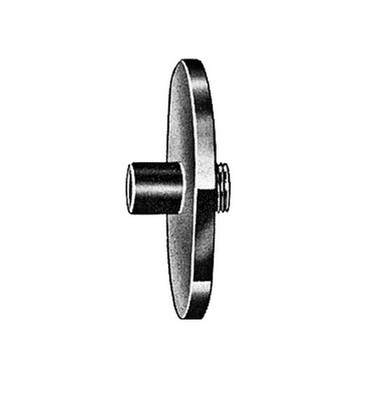

Designed for precision routing applications, the Dotco 14-2502 Router Guide is engineered for use with 1/4" shank router bits and compatible Dotco pneumatic routers. This accessory helps maintain a controlled routing path during trimming, edge finishing, and detailed material removal operations, promoting consistent results and improved operator control.
The 14-2502 router guide is supplied as a router guide accessory only and is intended for use with compatible Dotco routers. It is well suited for composite fabrication, aerospace manufacturing, woodworking, laminate trimming, and general industrial routing applications where repeatable routing accuracy is essential.
Type: Router Guide | Model: 14-2502 | Compatible Bit Shank: 1/4" | Application: Router Bit Guidance
|
Features:
Made in USA: |
|
Important: Insert the bit into the collet as far as possible, then pull out 1/16" and tighten the collet.
In an emergency: If it is necessary to pull out the bit more than 1/4", be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.
Applications:
- Precision trimming of composite panels and fabricated components.
- Controlled edge routing for aerospace parts and assemblies.
- Woodworking and laminate routing with compatible 1/4" shank router bits.
- General fabrication and production routing requiring guided tool control.
FAQs:
- Q: What router bit shank size is compatible with the Dotco 14-2502?
A: The Dotco 14-2502 is designed for router bits with a 1/4" shank. - Q: Is this a complete router?
A: No. This product is a router guide accessory only. Compatible routers and router bits are sold separately. - Q: What is the benefit of using a router guide?
A: A router guide helps maintain a consistent routing path, improving control during trimming, edge-finishing, and precision routing operations.
| SKU | Dimension A | Dimension B | Dimension C | Dimension D |
|---|---|---|---|---|
| in | in | in | in | |
| 14-2400 | 1 | 3/8 | 1/8 | 1/8 |
| 14-2401 | 1 | 3/8 | 1/4 | 1/8 |
| 14-2402 | 1 | 3/8 | 3/8 | 1/8 |
| 14-2406 | 1 | 7/16 | 1/8 | 1/8 |
| 14-2407 | 1 | 7/16 | 1/4 | 1/8 |
| 14-2408 | 1 | 7/16 | 3/8 | 1/8 |
| 14-2411 | 1 | 1/2 | 1/4 | 1/8 |
| 14-2412 | 1 | 1/2 | 1/2 | 1/8 |
| 14-2413 | 1 | 1/2 | 5/8 | 1/8 |
| 14-2414 | 1 | 1/2 | 3/4 | 1/8 |
| 14-2417 | 1 | 9/16 | 1/8 | 1/8 |
| 14-2420 | 1 | 5/8 | 1/8 | 1/8 |
| 14-2421 | 1 | 5/8 | 5/8 | 1/8 |
| 14-2500 | 1-1/2 | 3/8 | 1/8 | 1/8 |
| 14-2501 | 1-1/2 | 3/8 | 1/4 | 1/8 |
| 14-2502 | 1-1/2 | 3/8 | 3/8 | 1/8 |
| 14-2505 | 1-1/2 | 7/16 | 1/8 | 1/8 |
| 14-2506 | 1-1/2 | 7/16 | 1/4 | 1/8 |
| 14-2507 | 1-1/2 | 7/16 | 3/8 | 1/8 |
| 14-2510 | 1-1/2 | 1/2 | 1/4 | 1/8 |
| 14-2511 | 1-1/2 | 1/2 | 3/8 | 1/8 |
| 14-2512 | 1-1/2 | 1/2 | 1/2 | 1/8 |
| 14-2600 | 2-1/2 | 1/2 | 1/2 | 3/16 |
| 14-2703 | 3/4 | 3/8 | 1/2 | 1/8 |
Looking for more information about Dotco Accessory? Click here to view the Catalog.
Need help selecting the correct Dotco Accessories for your application? Please call (800) 608-5210 or email info@intlairtool.com
