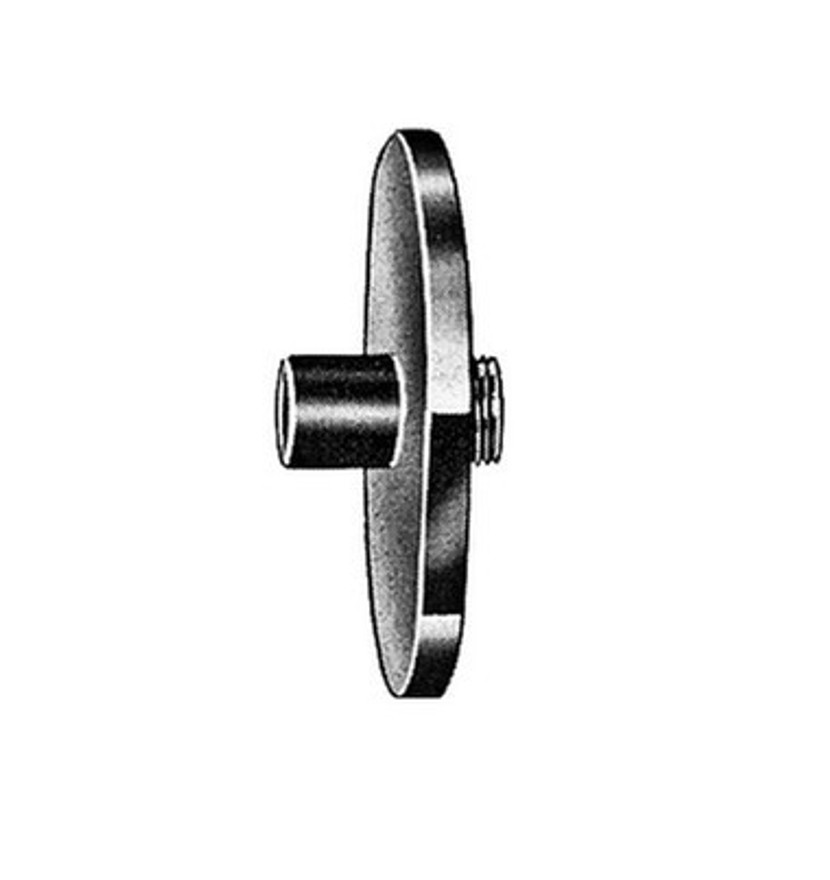

Built for guided routing with compatible Dotco pneumatic routers, the Dotco 14-2421 Router Guide is designed for use with 1/4" shank router bits. This accessory helps operators keep the router on a controlled path during trimming, edge-finishing, and precision material-removal work where consistent movement is important.
The 14-2421 is supplied as a router guide accessory only and does not include a router or router bit. It is commonly used in composite fabrication, aerospace component work, woodworking, laminate trimming, and general fabrication setups that benefit from steadier router guidance.
Type: Router Guide | Model: 14-2421 | Compatible Bit Shank: 1/4" | Application: Router Bit Guidance
|
Features:
Made in USA: |
|
Important: Insert the bit into the collet as far as possible, then pull out 1/16" and tighten the collet.
In an emergency: If it is necessary to pull out the bit more than 1/4", be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.
Applications:
- Composite panel trimming and guided edge finishing.
- Aerospace component routing where controlled tool movement is required.
- Woodworking and laminate routing with compatible 1/4" shank router bits.
- General fabrication tasks that require steadier router guidance.
FAQs:
- Q: What bit shank size does the Dotco 14-2421 support?
A: This router guide is intended for router bits with a 1/4" shank. - Q: Does this SKU include a router or router bit?
A: No. The 14-2421 is a router guide accessory only unless the product page or order details state otherwise. - Q: How does a router guide help during trimming?
A: A router guide helps keep the tool path controlled, making it easier to produce consistent trimming and edge-finishing results across repeated cuts.
| SKU | Dimension A | Dimension B | Dimension C | Dimension D |
|---|---|---|---|---|
| in | in | in | in | |
| 14-2400 | 1 | 3/8 | 1/8 | 1/8 |
| 14-2401 | 1 | 3/8 | 1/4 | 1/8 |
| 14-2402 | 1 | 3/8 | 3/8 | 1/8 |
| 14-2406 | 1 | 7/16 | 1/8 | 1/8 |
| 14-2407 | 1 | 7/16 | 1/4 | 1/8 |
| 14-2408 | 1 | 7/16 | 3/8 | 1/8 |
| 14-2411 | 1 | 1/2 | 1/4 | 1/8 |
| 14-2412 | 1 | 1/2 | 1/2 | 1/8 |
| 14-2413 | 1 | 1/2 | 5/8 | 1/8 |
| 14-2414 | 1 | 1/2 | 3/4 | 1/8 |
| 14-2417 | 1 | 9/16 | 1/8 | 1/8 |
| 14-2420 | 1 | 5/8 | 1/8 | 1/8 |
| 14-2421 | 1 | 5/8 | 5/8 | 1/8 |
| 14-2500 | 1-1/2 | 3/8 | 1/8 | 1/8 |
| 14-2501 | 1-1/2 | 3/8 | 1/4 | 1/8 |
| 14-2502 | 1-1/2 | 3/8 | 3/8 | 1/8 |
| 14-2505 | 1-1/2 | 7/16 | 1/8 | 1/8 |
| 14-2506 | 1-1/2 | 7/16 | 1/4 | 1/8 |
| 14-2507 | 1-1/2 | 7/16 | 3/8 | 1/8 |
| 14-2510 | 1-1/2 | 1/2 | 1/4 | 1/8 |
| 14-2511 | 1-1/2 | 1/2 | 3/8 | 1/8 |
| 14-2512 | 1-1/2 | 1/2 | 1/2 | 1/8 |
| 14-2600 | 2-1/2 | 1/2 | 1/2 | 3/16 |
| 14-2703 | 3/4 | 3/8 | 1/2 | 1/8 |
Looking for more information about Dotco Accessory? Click here to view the Catalog.
Need help selecting the correct Dotco Accessories for your application? Please call (800) 608-5210 or email info@intlairtool.com
