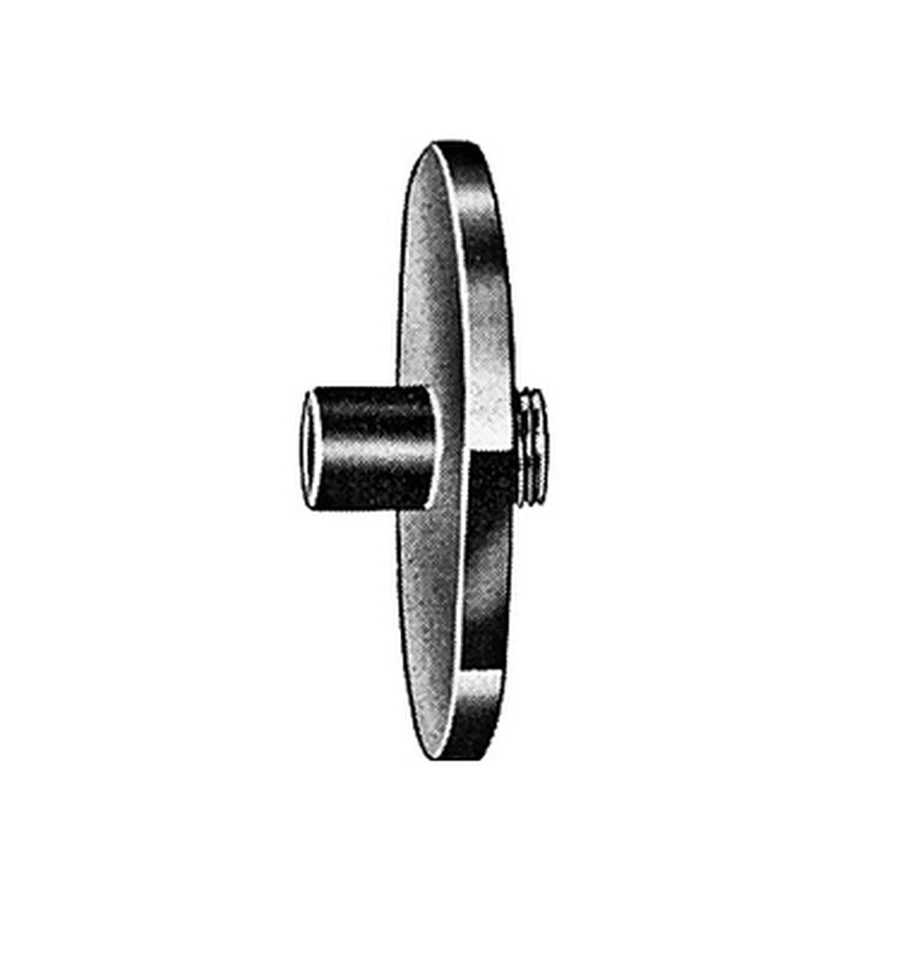

Built for controlled routing with compatible Dotco pneumatic routers, the Dotco 14-2501 Router Guide is designed for use with 1/4" shank router bits. This accessory helps maintain a smooth, consistent routing path during trimming, edge-finishing, and precision material-removal operations, making it easier to achieve repeatable results on a variety of workpieces.
The 14-2501 router guide is well suited for composite fabrication, aerospace manufacturing, woodworking, laminate trimming, and general industrial routing applications. Supplied as a router guide accessory only, it is intended for use with compatible Dotco routers and matching 1/4" shank router bits.
Type: Router Guide | Model: 14-2501 | Compatible Bit Shank: 1/4" | Application: Router Bit Guidance
|
Features:
Made in USA: |
|
Important: Insert the bit into the collet as far as possible, then pull out 1/16" and tighten the collet.
In an emergency: If it is necessary to pull out the bit more than 1/4", be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.
Applications:
- Precision trimming of composite panels and fabricated components.
- Controlled edge routing for aerospace parts and assemblies.
- Woodworking and laminate finishing with compatible 1/4" shank router bits.
- General fabrication and production routing requiring repeatable tool guidance.
FAQs:
- Q: What router bit size is compatible with the Dotco 14-2501?
A: The 14-2501 is designed for router bits with a 1/4" shank. - Q: Is this a complete router or an accessory?
A: This product is a router guide accessory only. Compatible routers and router bits are sold separately. - Q: Why use a router guide?
A: A router guide helps maintain a controlled routing path, improving consistency during trimming, edge-finishing, and precision routing operations.
| SKU | Dimension A | Dimension B | Dimension C | Dimension D |
|---|---|---|---|---|
| in | in | in | in | |
| 14-2400 | 1 | 3/8 | 1/8 | 1/8 |
| 14-2401 | 1 | 3/8 | 1/4 | 1/8 |
| 14-2402 | 1 | 3/8 | 3/8 | 1/8 |
| 14-2406 | 1 | 7/16 | 1/8 | 1/8 |
| 14-2407 | 1 | 7/16 | 1/4 | 1/8 |
| 14-2408 | 1 | 7/16 | 3/8 | 1/8 |
| 14-2411 | 1 | 1/2 | 1/4 | 1/8 |
| 14-2412 | 1 | 1/2 | 1/2 | 1/8 |
| 14-2413 | 1 | 1/2 | 5/8 | 1/8 |
| 14-2414 | 1 | 1/2 | 3/4 | 1/8 |
| 14-2417 | 1 | 9/16 | 1/8 | 1/8 |
| 14-2420 | 1 | 5/8 | 1/8 | 1/8 |
| 14-2421 | 1 | 5/8 | 5/8 | 1/8 |
| 14-2500 | 1-1/2 | 3/8 | 1/8 | 1/8 |
| 14-2501 | 1-1/2 | 3/8 | 1/4 | 1/8 |
| 14-2502 | 1-1/2 | 3/8 | 3/8 | 1/8 |
| 14-2505 | 1-1/2 | 7/16 | 1/8 | 1/8 |
| 14-2506 | 1-1/2 | 7/16 | 1/4 | 1/8 |
| 14-2507 | 1-1/2 | 7/16 | 3/8 | 1/8 |
| 14-2510 | 1-1/2 | 1/2 | 1/4 | 1/8 |
| 14-2511 | 1-1/2 | 1/2 | 3/8 | 1/8 |
| 14-2512 | 1-1/2 | 1/2 | 1/2 | 1/8 |
| 14-2600 | 2-1/2 | 1/2 | 1/2 | 3/16 |
| 14-2703 | 3/4 | 3/8 | 1/2 | 1/8 |
Looking for more information about Dotco Accessory? Click here to view the Catalog.
Need help selecting the correct Dotco Accessories for your application? Please call (800) 608-5210 or email info@intlairtool.com
