Ingersoll Rand QA8ASLS070NP41S08 Inline Air Nutrunner is configured for repetitive production fastening where direct fastener access and a higher torque range are required. Featuring a 1/2" drive, 25.8–51.6 ft-lbs torque range, 335–355 RPM operating speed, and lever start, this model combines controlled fastening capability with a measured rundown speed for assembly operations within its specified range.
Ingersoll Rand QA8ASLS070NP41S08 uses an inline configuration that keeps the tool body aligned with the fastening axis, making it suitable for workstations where the fastener can be approached directly. Its 1/2" square drive accepts compatible sockets, while lever-start operation gives the operator direct control over tool activation during each fastening cycle.
Type: Inline Air Nutrunner | Drive Size: 1/2" | Torque Range: 25.8–51.6 ft-lbs | Speed: 335–355 RPM | Start Type: Lever Start | Series: QA8 Series
|
Features:
Made in USA: |
 |
Applications:
- Production fastening operations requiring torque within the 25.8–51.6 ft-lbs range.
- Assembly workstations where fasteners can be reached through a direct, straight-line tool approach.
- Repetitive fastening of machinery components, fabricated assemblies, brackets, and similar parts using compatible 1/2" drive sockets.
- Manufacturing processes where lever-start operation provides direct operator control over recurring fastening cycles.
FAQs:
- Q: What torque range does the QA8ASLS070NP41S08 provide?
A: This model has a specified torque range of 25.8–51.6 ft-lbs. - Q: What drive size does this inline air nutrunner use?
A: The QA8ASLS070NP41S08 uses a 1/2" square drive for compatible sockets. - Q: How is this nutrunner activated?
A: This model uses lever-start operation, allowing the operator to control tool activation directly during the fastening cycle. - Q: What operating speed is specified for this model?
A: The provided product information lists an operating speed range of 335–355 RPM. - Q: What should be checked before selecting the QA8ASLS070NP41S08?
A: Confirm that the required fastening torque falls within the 25.8–51.6 ft-lbs range and that the 1/2" drive size, inline configuration, and specified operating speed match the requirements of the assembly process.

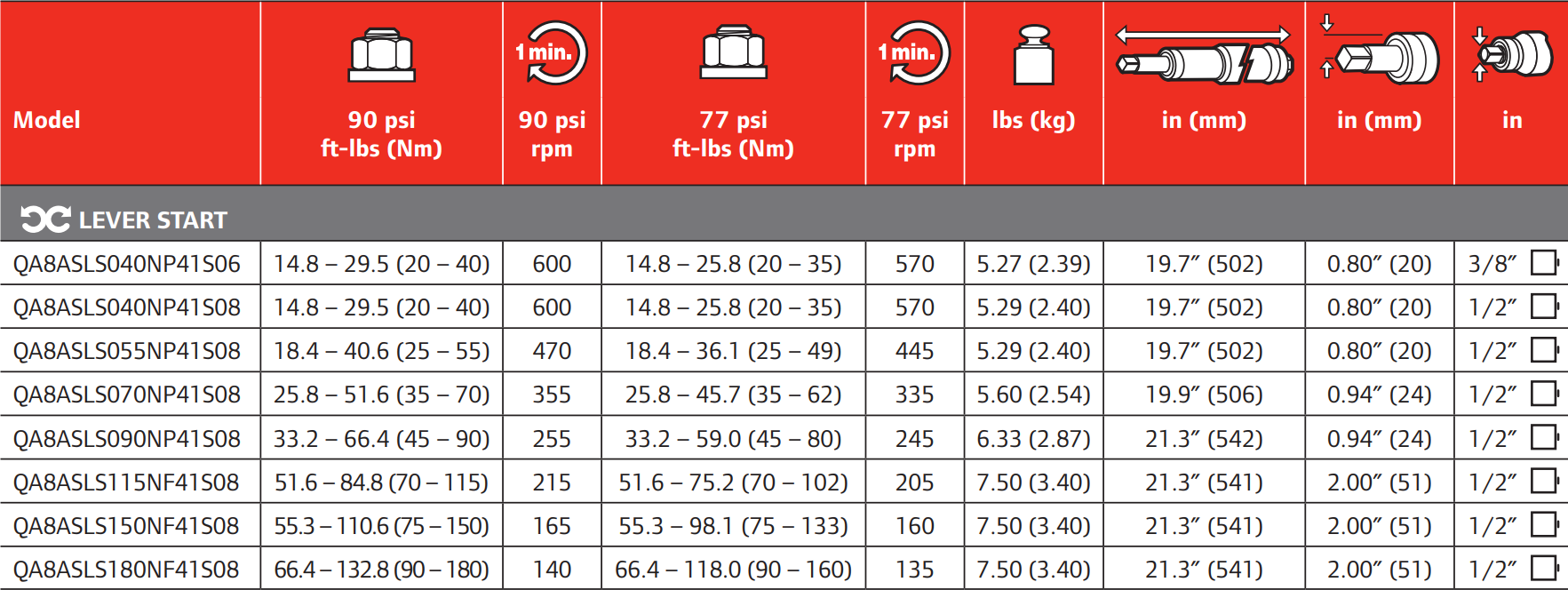

| SKU | 90 PSI FT-LBS (NM) | 90 PSI RPM | 77 PSI FT-LBS (NM) | 77 PSI RPM | LBS (KG) | IN (MM) | IN (MM) | IN |
|---|---|---|---|---|---|---|---|---|
| LEVER START | ||||||||
| QA8ASLS040NP41S06 | 14.8 – 29.5 (20 – 40) | 600 | 14.8 – 25.8 (20 – 35) | 570 | 5.27 (2.39) | 19.7" (502) | 0.80" (20) | 3/8" |
| QA8ASLS040NP41S08 | 14.8 – 29.5 (20 – 40) | 600 | 14.8 – 25.8 (20 – 35) | 570 | 5.29 (2.40) | 19.7" (502) | 0.80" (20) | 1/2" |
| QA8ASLS055NP41S08 | 18.4 – 40.6 (25 – 55) | 470 | 18.4 – 36.1 (25 – 49) | 445 | 5.29 (2.40) | 19.7" (502) | 0.80" (20) | 1/2" |
| QA8ASLS070NP41S08 | 25.8 – 51.6 (35 – 70) | 355 | 25.8 – 45.7 (35 – 62) | 335 | 5.60 (2.54) | 19.9" (506) | 0.94" (24) | 1/2" |
| QA8ASLS090NP41S08 | 33.2 – 66.4 (45 – 90) | 255 | 33.2 – 59.0 (45 – 80) | 245 | 6.33 (2.87) | 21.3" (542) | 0.94" (24) | 1/2" |
| QA8ASLS115NF41S08 | 51.6 – 84.8 (70 – 115) | 215 | 51.6 – 75.2 (70 – 102) | 205 | 7.50 (3.40) | 21.3" (541) | 2.00" (51) | 1/2" |
| QA8ASLS150NF41S08 | 55.3 – 110.6 (75 – 150) | 165 | 55.3 – 98.1 (75 – 133) | 160 | 7.50 (3.40) | 21.3" (541) | 2.00" (51) | 1/2" |
| QA8ASLS180NF41S08 | 66.4 – 132.8 (90 – 180) | 140 | 66.4 – 118.0 (90 – 160) | 135 | 7.50 (3.40) | 21.3" (541) | 2.00" (51) | 1/2" |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
