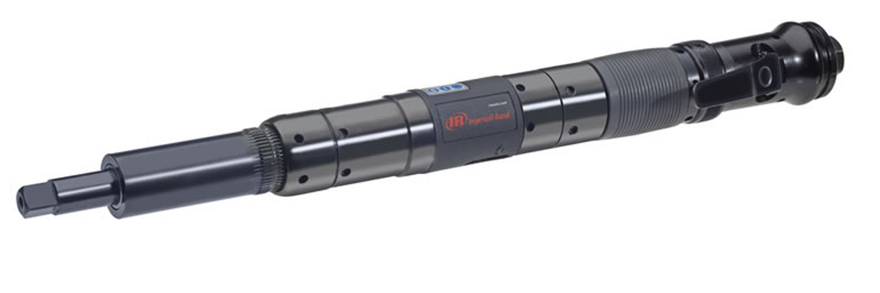

Ingersoll Rand QA6ASLS055NP41S08 Inline Air Nutrunner is configured for repetitive production assembly where direct fastener access and a broader fastening range are required. Featuring a 1/2" drive, 18.4–40.6 ft-lbs torque range, and 325 RPM operating speed, this model combines increased torque capability with a controlled rundown rate for fastening operations within its specified range.
Ingersoll Rand QA6ASLS055NP41S08 uses an inline configuration that keeps the tool body aligned with the fastening axis, making it suitable for workstations where the fastener can be approached directly. Its 1/2" square drive accepts compatible sockets, while the 18.4–40.6 ft-lbs torque range provides flexibility for assembly processes with varying fastening requirements within that specified range.
Type: Inline Air Nutrunner | Drive Size: 1/2" | Torque Range: 18.4–40.6 ft-lbs | Speed: 325 RPM | Series: QA6 Series
|
Features:
Made in USA: |
 |
Applications:
- Production fastening operations requiring torque within the 18.4–40.6 ft-lbs range.
- Assembly workstations where fasteners are accessible through a direct, straight-line tool approach.
- Repetitive fastening of machinery components, fabricated assemblies, brackets, and similar parts using compatible 1/2" drive sockets.
- Compressed-air-powered manufacturing processes where a 325 RPM operating speed suits the required fastening cycle.
FAQs:
- Q: What torque range does the QA6ASLS055NP41S08 provide?
A: This model has a specified torque range of 18.4–40.6 ft-lbs. - Q: What drive size does this inline air nutrunner use?
A: The QA6ASLS055NP41S08 is equipped with a 1/2" square drive for use with compatible sockets. - Q: What type of workstation is suited to an inline nutrunner?
A: An inline configuration is practical when the fastener can be approached directly along its fastening axis without surrounding components blocking the tool body. - Q: What is the operating speed of this model?
A: The QA6ASLS055NP41S08 has a rated operating speed of 325 RPM. - Q: What should be verified before selecting this nutrunner?
A: Confirm that the required fastening torque falls within the 18.4–40.6 ft-lbs range and that the 1/2" drive size, 325 RPM speed, and inline configuration match the requirements of the assembly process.
| SKU | 90 PSI FT-LBS (NM) | 90 PSI RPM | 77 PSI FT-LBS (NM) | 77 PSI RPM | LBS (KG) | IN (MM) | IN (MM) | IN |
|---|---|---|---|---|---|---|---|---|
| LEVER START | ||||||||
| QA6ASLS025NP41S06 | 8.9 – 18.4 (12 – 25) | 720 | 8.9 – 16.2 (12 – 22) | 685 | 5.07 (2.30) | 18.8" (478) | 0.80" (20) | 3/8" |
| QA6ASLS030NP41S06 | 11.1 – 22.1 (15 – 30) | 605 | 11.1 – 19.2 (15 – 26) | 575 | 5.07 (2.30) | 18.8" (478) | 0.80" (20) | 3/8" |
| QA6ASLS040NP41S06 | 14.8 – 29.5 (20 – 40) | 450 | 14.8 – 25.8 (20 – 35) | 425 | 5.07 (2.30) | 18.8" (478) | 0.80" (20) | 3/8" |
| QA6ASLS055NP41S08 | 18.4 – 40.6 (25 – 55) | 325 | 18.4 – 36.1 (25 – 49) | 310 | 5.09 (2.31) | 18.8" (478) | 0.80" (20) | 1/2" |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
