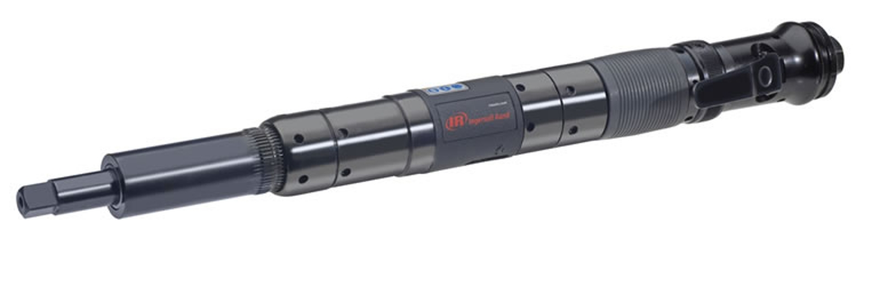

Ingersoll Rand QA6ASLS030NP41S06 Inline Air Nutrunner is configured for repetitive assembly operations requiring a straight tool approach and controlled fastening within a defined torque range. Featuring a 3/8" drive, 11.1–22.1 ft-lbs torque range, and 605 RPM operating speed, this model provides a practical balance of fastening capability and rundown speed for production assembly processes.
Ingersoll Rand QA6ASLS030NP41S06 uses an inline configuration that keeps the tool body aligned with the fastener, making it suitable for workstations with direct approach access. Its 3/8" square drive accepts compatible sockets, while the 11.1–22.1 ft-lbs range allows the tool to be matched to assembly requirements within its specified torque capability.
Type: Inline Air Nutrunner | Drive Size: 3/8" | Torque Range: 11.1–22.1 ft-lbs | Speed: 605 RPM | Series: QA6 Series
|
Features:
Made in USA: |
 |
Applications:
- Production fastening operations requiring torque within the 11.1–22.1 ft-lbs range.
- Assembly workstations where fasteners can be approached directly with an inline tool configuration.
- Repetitive fastening of machinery components, brackets, fabricated parts, and similar assemblies using compatible 3/8" drive sockets.
- Compressed-air-powered assembly processes where a 605 RPM operating speed suits the required fastening cycle.
FAQs:
- Q: What torque range does the QA6ASLS030NP41S06 provide?
A: This model has a specified torque range of 11.1–22.1 ft-lbs. - Q: What drive size does this inline air nutrunner use?
A: The QA6ASLS030NP41S06 is equipped with a 3/8" square drive for use with compatible sockets. - Q: What is the benefit of the inline configuration?
A: The inline layout keeps the tool body aligned with the fastener, making it a practical choice where the assembly provides direct approach access. - Q: What is the operating speed of this model?
A: The QA6ASLS030NP41S06 has a rated operating speed of 605 RPM. - Q: What should be checked before selecting this nutrunner?
A: Confirm that the required fastening torque falls within the 11.1–22.1 ft-lbs range and that the 3/8" drive size, 605 RPM speed, and inline configuration match the requirements of the assembly process.
| SKU | 90 PSI FT-LBS (NM) | 90 PSI RPM | 77 PSI FT-LBS (NM) | 77 PSI RPM | LBS (KG) | IN (MM) | IN (MM) | IN |
|---|---|---|---|---|---|---|---|---|
| LEVER START | ||||||||
| QA6ASLS025NP41S06 | 8.9 – 18.4 (12 – 25) | 720 | 8.9 – 16.2 (12 – 22) | 685 | 5.07 (2.30) | 18.8" (478) | 0.80" (20) | 3/8" |
| QA6ASLS030NP41S06 | 11.1 – 22.1 (15 – 30) | 605 | 11.1 – 19.2 (15 – 26) | 575 | 5.07 (2.30) | 18.8" (478) | 0.80" (20) | 3/8" |
| QA6ASLS040NP41S06 | 14.8 – 29.5 (20 – 40) | 450 | 14.8 – 25.8 (20 – 35) | 425 | 5.07 (2.30) | 18.8" (478) | 0.80" (20) | 3/8" |
| QA6ASLS055NP41S08 | 18.4 – 40.6 (25 – 55) | 325 | 18.4 – 36.1 (25 – 49) | 310 | 5.09 (2.31) | 18.8" (478) | 0.80" (20) | 1/2" |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
