Ingersoll Rand QA6ASLS025NP41S06 Inline Air Nutrunner is configured for repetitive assembly operations that require a straight tool orientation and an adjustable fastening range. Featuring a 3/8" drive, 8.9–18.4 ft-lbs torque range, and 720 RPM operating speed, this model combines controlled torque capability with efficient fastener rundown for production fastening processes.
Ingersoll Rand QA6ASLS025NP41S06 uses an inline configuration that aligns the tool body with the fastener, making it suitable for workstations where direct access is available. Its 3/8" square drive accepts compatible sockets, while the specified torque range allows the tool to be matched to fastening requirements from 8.9 to 18.4 ft-lbs.
Type: Inline Air Nutrunner | Drive Size: 3/8" | Torque Range: 8.9–18.4 ft-lbs | Speed: 720 RPM | Series: QA6 Series
|
Features:
Made in USA: |
 |
Applications:
- Repetitive production fastening requiring torque within the 8.9–18.4 ft-lbs range.
- Assembly workstations where the fastener can be approached directly with an inline tool configuration.
- Fastening of machinery components, brackets, fabricated parts, and similar assemblies using compatible 3/8" drive sockets.
- Compressed-air-powered production processes where a 720 RPM operating speed matches the required fastening cycle.
FAQs:
- Q: What torque range does the QA6ASLS025NP41S06 provide?
A: This model has a specified torque range of 8.9–18.4 ft-lbs. - Q: What drive size does this inline air nutrunner use?
A: The tool is equipped with a 3/8" square drive for use with compatible sockets. - Q: What is the advantage of an inline nutrunner configuration?
A: An inline configuration aligns the tool body with the fastener, making it practical for assembly stations where direct approach access is available. - Q: What is the operating speed of this model?
A: The QA6ASLS025NP41S06 is rated at 720 RPM. - Q: What should I verify before selecting this nutrunner?
A: Confirm that the required fastening torque falls within the 8.9–18.4 ft-lbs range and that the 3/8" drive size and inline configuration match the socket and access requirements of the application.

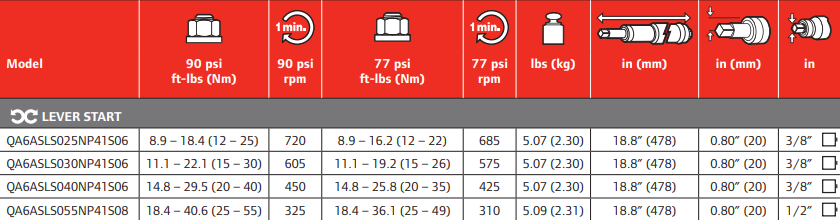

| SKU | 90 PSI FT-LBS (NM) | 90 PSI RPM | 77 PSI FT-LBS (NM) | 77 PSI RPM | LBS (KG) | IN (MM) | IN (MM) | IN |
|---|---|---|---|---|---|---|---|---|
| LEVER START | ||||||||
| QA6ASLS025NP41S06 | 8.9 – 18.4 (12 – 25) | 720 | 8.9 – 16.2 (12 – 22) | 685 | 5.07 (2.30) | 18.8" (478) | 0.80" (20) | 3/8" |
| QA6ASLS030NP41S06 | 11.1 – 22.1 (15 – 30) | 605 | 11.1 – 19.2 (15 – 26) | 575 | 5.07 (2.30) | 18.8" (478) | 0.80" (20) | 3/8" |
| QA6ASLS040NP41S06 | 14.8 – 29.5 (20 – 40) | 450 | 14.8 – 25.8 (20 – 35) | 425 | 5.07 (2.30) | 18.8" (478) | 0.80" (20) | 3/8" |
| QA6ASLS055NP41S08 | 18.4 – 40.6 (25 – 55) | 325 | 18.4 – 36.1 (25 – 49) | 310 | 5.09 (2.31) | 18.8" (478) | 0.80" (20) | 1/2" |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
