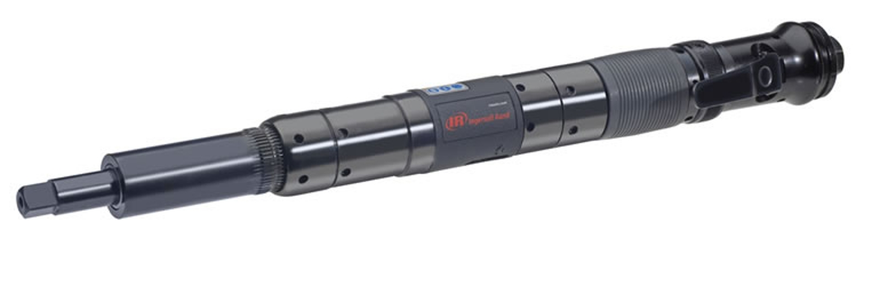

Ingersoll Rand QA6ASLS040NP41S06 Inline Air Nutrunner is configured for repetitive assembly operations requiring controlled fastening and direct, straight-line access to the fastener. Featuring a 3/8" drive, 14.8–29.5 ft-lbs torque range, and 450 RPM operating speed, this model provides increased torque capability at a controlled rundown speed for production fastening processes.
Ingersoll Rand QA6ASLS040NP41S06 uses an inline configuration that keeps the tool body aligned with the fastening axis, making it a practical choice for workstations where unobstructed approach access is available. Its 3/8" square drive accepts compatible sockets, while the specified torque range allows the tool to be matched to assembly requirements from 14.8 to 29.5 ft-lbs.
Type: Inline Air Nutrunner | Drive Size: 3/8" | Torque Range: 14.8–29.5 ft-lbs | Speed: 450 RPM | Series: QA6 Series
|
Features:
Made in USA: |
 |
Applications:
- Production fastening operations requiring torque within the 14.8–29.5 ft-lbs range.
- Assembly workstations where fasteners can be approached directly with an inline pneumatic tool.
- Repetitive fastening of machinery components, brackets, fabricated parts, and similar assemblies using compatible 3/8" drive sockets.
- Manufacturing processes where a 450 RPM operating speed matches the required fastening cycle and torque requirements.
FAQs:
- Q: What torque range does the QA6ASLS040NP41S06 provide?
A: This model has a specified torque range of 14.8–29.5 ft-lbs. - Q: What drive size is used on this inline air nutrunner?
A: The QA6ASLS040NP41S06 is equipped with a 3/8" square drive for compatible sockets. - Q: Where is an inline nutrunner configuration most practical?
A: An inline configuration is suited to assembly stations where the operator can approach the fastener directly along its fastening axis without surrounding components blocking tool access. - Q: What is the operating speed of the QA6ASLS040NP41S06?
A: This model has a rated operating speed of 450 RPM. - Q: What should I verify when selecting this model?
A: Confirm that the required fastening torque falls within the 14.8–29.5 ft-lbs range and that the 3/8" drive size, 450 RPM speed, and inline configuration suit the assembly process.
| SKU | 90 PSI FT-LBS (NM) | 90 PSI RPM | 77 PSI FT-LBS (NM) | 77 PSI RPM | LBS (KG) | IN (MM) | IN (MM) | IN |
|---|---|---|---|---|---|---|---|---|
| LEVER START | ||||||||
| QA6ASLS025NP41S06 | 8.9 – 18.4 (12 – 25) | 720 | 8.9 – 16.2 (12 – 22) | 685 | 5.07 (2.30) | 18.8" (478) | 0.80" (20) | 3/8" |
| QA6ASLS030NP41S06 | 11.1 – 22.1 (15 – 30) | 605 | 11.1 – 19.2 (15 – 26) | 575 | 5.07 (2.30) | 18.8" (478) | 0.80" (20) | 3/8" |
| QA6ASLS040NP41S06 | 14.8 – 29.5 (20 – 40) | 450 | 14.8 – 25.8 (20 – 35) | 425 | 5.07 (2.30) | 18.8" (478) | 0.80" (20) | 3/8" |
| QA6ASLS055NP41S08 | 18.4 – 40.6 (25 – 55) | 325 | 18.4 – 36.1 (25 – 49) | 310 | 5.09 (2.31) | 18.8" (478) | 0.80" (20) | 1/2" |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
