Ingersoll Rand QA4ASLS015NP41S06 Inline Air Nutrunner is configured for repetitive production fastening where direct, straight-line access to the fastener is available. Part of the QA4 Series, this model features a 3/8" drive, 5.2–11.1 ft-lbs torque range, 791–850 RPM speed range, and lever start, providing a practical combination of controlled fastening and operator-directed activation for assembly workstations.
Ingersoll Rand QA4ASLS015NP41S06 uses an inline configuration that keeps the tool body aligned with the fastener axis, making it suitable for applications with adequate straight-on clearance. Its 3/8" square drive accepts compatible sockets, while the specified torque and speed ranges allow buyers to match the tool to the requirements of the fastening process.
Type: Inline Air Nutrunner | Series: QA4 Series | Drive Size: 3/8" | Torque Range: 5.2–11.1 ft-lbs | Speed: 791–850 RPM | Start Type: Lever Start
|
Features:
Made in USA: |
 |
Applications:
- Production assembly requiring fastening within the 5.2–11.1 ft-lbs torque range.
- Repetitive fastening stations with sufficient straight-line clearance for an inline tool configuration.
- Assembly processes using compatible 3/8" drive sockets and operator-controlled lever activation.
- Machinery, component, and fabricated-product assembly where the specified torque and speed characteristics match the fastening requirement.
FAQs:
- Q: What torque range does the QA4ASLS015NP41S06 provide?
A: This model has a specified torque range of 5.2–11.1 ft-lbs. - Q: What drive size does this inline air nutrunner use?
A: It uses a 3/8" square drive for compatible sockets. - Q: How is this QA4 Series nutrunner activated?
A: The QA4ASLS015NP41S06 uses lever-start operation, giving the operator direct control over tool activation. - Q: What is the specified speed range of this model?
A: The provided product data specifies an operating speed range of 791–850 RPM. - Q: When should an inline nutrunner be considered instead of an angle model?
A: An inline configuration is suitable when the assembly provides sufficient direct access along the fastener axis and an angle head is not needed for clearance.

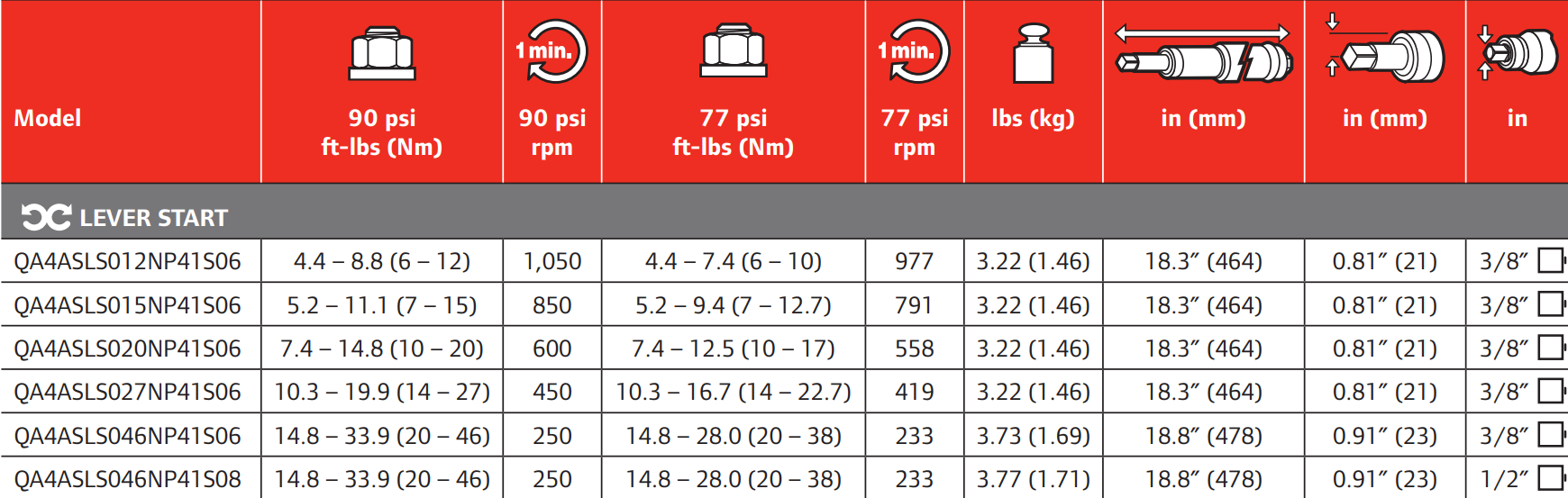

| SKU | 90 psi ft-lbs (Nm) | 90 psi rpm | 77 psi ft-lbs (Nm) | 77 psi rpm | lbs (kg) | in (mm) | in (mm) | in |
|---|---|---|---|---|---|---|---|---|
| Lever Start | ||||||||
| QA4ASLS012NP41S06 | 4.4 – 8.8 (6 – 12) | 1,050 | 4.4 – 7.4 (6 – 10) | 977 | 3.22 (1.46) | 18.3″ (464) | 0.81″ (21) | 3/8″ |
| QA4ASLS015NP41S06 | 5.2 – 11.1 (7 – 15) | 850 | 5.2 – 9.4 (7 – 12.7) | 791 | 3.22 (1.46) | 18.3″ (464) | 0.81″ (21) | 3/8″ |
| QA4ASLS020NP41S06 | 7.4 – 14.8 (10 – 20) | 600 | 7.4 – 12.5 (10 – 17) | 558 | 3.22 (1.46) | 18.3″ (464) | 0.81″ (21) | 3/8″ |
| QA4ASLS027NP41S06 | 10.3 – 19.9 (14 – 27) | 450 | 10.3 – 16.7 (14 – 22.7) | 419 | 3.22 (1.46) | 18.3″ (464) | 0.81″ (21) | 3/8″ |
| QA4ASLS046NP41S06 | 14.8 – 33.9 (20 – 46) | 250 | 14.8 – 28.0 (20 – 38) | 233 | 3.73 (1.69) | 18.8″ (478) | 0.91″ (23) | 3/8″ |
| QA4ASLS046NP41S08 | 14.8 – 33.9 (20 – 46) | 250 | 14.8 – 28.0 (20 – 38) | 233 | 3.77 (1.71) | 18.8″ (478) | 0.91″ (23) | 1/2″ |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Nutrunner
- Torque Range (ft-lbs)
- 5.2 - 11.1
- RPM
- 791 - 850
- Length (in.)
- 18.3
- Side to Center (in.)
- 0.81
- Drive Size (in.)
- 3/8
- Drive Type
- Square Drive
- Air Inlet
- 1/4" NPT
- Hose Size (in.)
- 3/8
- Air Consumption (CFM)
- 29
