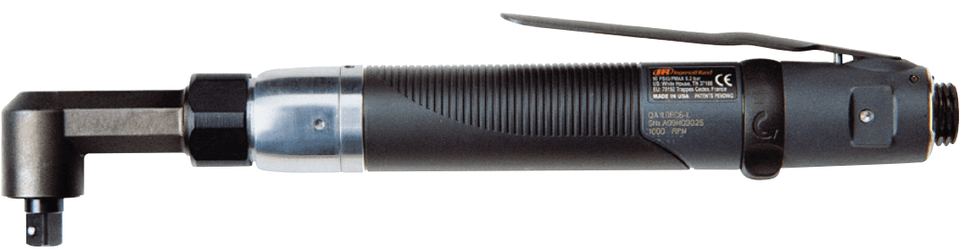

Ingersoll Rand QA1L18C4LD Angle Air Nutrunner is a pneumatic precision fastening tool engineered for controlled assembly applications where consistent low-torque performance is essential. Featuring a 1/4" square drive, a 3.5–26.1 in-lbs torque range, and a 1,750 RPM free speed, this angle nutrunner provides improved access to fasteners in confined workspaces while supporting repeatable fastening results on production lines.
Designed for general industrial assembly, the QA1L18C4LD combines a compact angle head with high operating speed to improve operator accessibility and productivity when working on hard-to-reach fasteners. Its controlled torque output helps reduce fastening variation, making it well suited for repetitive assembly tasks using compatible 1/4" drive sockets.
Tool Type: Angle Air Nutrunner | Drive Size: 1/4" Square Drive | Torque Range: 3.5–26.1 in-lbs | Free Speed: 1,750 RPM
|
Features:
Made in USA: |
 |
Applications:
- General industrial assembly requiring controlled low-torque fastening.
- Electronics, appliance, and light mechanical product assembly.
- Automotive component and subassembly production.
- Assembly stations where an angle head provides improved access to recessed or obstructed fasteners.
- Production environments requiring repeatable fastening with compatible 1/4" drive sockets.
FAQs:
- Q: What is the torque range of the QA1L18C4LD?
A: This nutrunner has an adjustable torque range of 3.5–26.1 in-lbs for controlled fastening applications. - Q: What size sockets does this tool accept?
A: The QA1L18C4LD features a 1/4" square drive for use with compatible 1/4" drive sockets. - Q: What advantage does the angle configuration provide?
A: The angle head allows easier access to fasteners located in tight spaces or around surrounding components where a straight tool may be difficult to position. - Q: What is the free speed of this nutrunner?
A: The tool operates at a free speed of 1,750 RPM. - Q: What types of applications is this nutrunner intended for?
A: It is designed for precision, repeatable fastening in general industrial assembly operations requiring low torque and controlled tightening.
| SKU | Soft Joint Torque Range | Medium Joint Torque Range | Hard Joint Torque Range | Free Speed | Weight | Overall Length | Head Height | Head Width | Drive Size |
|---|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | IN-LBS (NM) | IN-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | IN | |
| QA1L18C4LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 26.1 (1.05 – 2.95) | – | 1,750 | 2.0 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Square |
| QA1L18C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 26.1 (1.05 – 2.95) | – | 1,750 | 2.0 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Hex |
| QA1L12C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 32.7 (1.1 – 3.64) | – | 1,270 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Hex |
| QA1L12C6LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 32.2 (1.1 – 3.64) | – | 1,270 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 3/8" Square |
| QA1L08C4LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 47.2 (1.77 – 5.33) | 850 | 2.0 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Square |
| QA1L08C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 47.2 (1.77 – 5.33) | 850 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Hex |
| QA1L08C9LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 47.2 (1.77 – 5.33) | 850 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Spline |
| QA1L05C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 56.4 (1.77 – 6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.5" (12.7) | 1.3" (33) | 1/4" Hex |
| QA1L05C4LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 56.4 (1.77 – 6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.5" (12.7) | 1.3" (33) | 1/4" Square |
| QA1L05C6LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 56.4 (1.77 – 6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.5" (12.7) | 1.3" (33) | 3/8" Square |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
