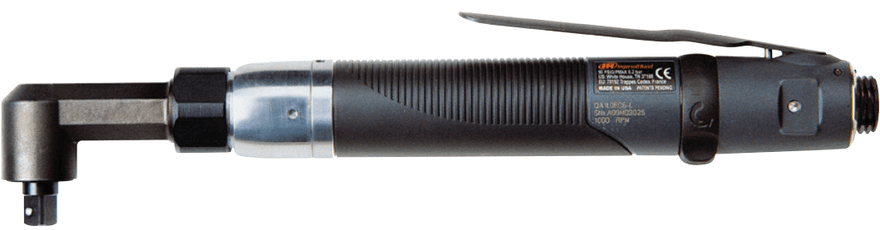

Ingersoll Rand QA1L08C4LD Angle Air Nutrunner is a pneumatic fastening tool designed for precision assembly operations where controlled low torque and repeatable performance are required. Featuring a 1/4" square drive, a 3.5–33.4 in-lbs torque range, and an 850 RPM free speed, this angle nutrunner provides dependable fastening control while allowing operators to access fasteners in confined or obstructed assembly locations.
QA1L08C4LD combines an ergonomic angle head with a compact design to improve maneuverability during repetitive production work. Its controlled torque output helps promote fastening consistency, while the 1/4" drive accepts compatible sockets for a variety of precision assembly applications in general industrial manufacturing.
Tool Type: Angle Air Nutrunner | Drive Size: 1/4" Square Drive | Torque Range: 3.5–33.4 in-lbs | Free Speed: 850 RPM
|
Features:
Made in USA: |
 |
Applications:
- General industrial assembly requiring controlled low-torque fastening.
- Electronics, appliance, and light mechanical equipment manufacturing.
- Automotive component and subassembly production.
- Assembly workstations where an angle tool improves access to recessed or obstructed fasteners.
- Repetitive fastening operations using compatible 1/4" drive sockets.
FAQs:
- Q: What torque range does the QA1L08C4LD provide?
A: This angle air nutrunner offers an adjustable torque range of 3.5–33.4 in-lbs. - Q: What drive size is used on this tool?
A: The QA1L08C4LD features a 1/4" square drive for use with compatible 1/4" drive sockets. - Q: What is the advantage of the angle head configuration?
A: The angle head allows easier access to fasteners located in confined spaces or around surrounding components, improving positioning during assembly. - Q: What is the free speed of this nutrunner?
A: The tool operates at a free speed of 850 RPM. - Q: What applications is this tool best suited for?
A: It is intended for precision fastening in general industrial assembly operations where controlled low torque and repeatable fastening performance are important.
| SKU | Soft Joint Torque Range | Medium Joint Torque Range | Hard Joint Torque Range | Free Speed | Weight | Overall Length | Head Height | Head Width | Drive Size |
|---|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | IN-LBS (NM) | IN-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | IN | |
| QA1L18C4LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 26.1 (1.05 – 2.95) | – | 1,750 | 2.0 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Square |
| QA1L18C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 26.1 (1.05 – 2.95) | – | 1,750 | 2.0 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Hex |
| QA1L12C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 32.7 (1.1 – 3.64) | – | 1,270 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Hex |
| QA1L12C6LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 32.2 (1.1 – 3.64) | – | 1,270 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 3/8" Square |
| QA1L08C4LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 47.2 (1.77 – 5.33) | 850 | 2.0 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Square |
| QA1L08C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 47.2 (1.77 – 5.33) | 850 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Hex |
| QA1L08C9LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 47.2 (1.77 – 5.33) | 850 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Spline |
| QA1L05C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 56.4 (1.77 – 6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.5" (12.7) | 1.3" (33) | 1/4" Hex |
| QA1L05C4LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 56.4 (1.77 – 6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.5" (12.7) | 1.3" (33) | 1/4" Square |
| QA1L05C6LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 56.4 (1.77 – 6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.5" (12.7) | 1.3" (33) | 3/8" Square |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
