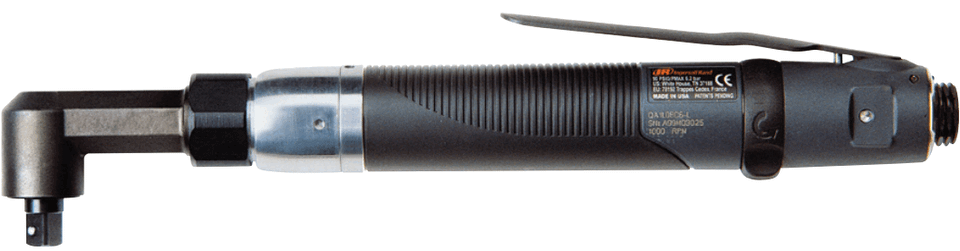

Ingersoll Rand QA1L08C9LD Angle Air Nutrunner is a pneumatic precision fastening tool developed for assembly operations where controlled low-torque output and repeatable fastening accuracy are essential. Featuring a 1/4" square drive, a 3.5–33.4 in-lbs torque range, and an 850 RPM free speed, this angle nutrunner enables operators to work efficiently in confined spaces while maintaining consistent fastening performance throughout repetitive production cycles.
QA1L08C9LD combines a compact angle head with a balanced operating speed to improve maneuverability and fastening control in general industrial assembly. Its 1/4" square drive is compatible with standard sockets, making it a practical choice for precision fastening applications where accessibility and repeatability are important.
Tool Type: Angle Air Nutrunner | Drive Size: 1/4" Square Drive | Torque Range: 3.5–33.4 in-lbs | Free Speed: 850 RPM
|
Features:
Made in USA: |
 |
Applications:
- General industrial assembly requiring precise low-torque fastening.
- Automotive component, electronics, and appliance manufacturing.
- Light mechanical equipment assembly requiring repeatable fastening performance.
- Assembly stations where an angle head improves access to recessed or obstructed fasteners.
- Production environments using compatible 1/4" drive sockets for repetitive fastening tasks.
FAQs:
- Q: What is the torque range of the QA1L08C9LD?
A: This angle air nutrunner provides an adjustable torque range of 3.5–33.4 in-lbs. - Q: What drive size does this tool use?
A: The QA1L08C9LD features a 1/4" square drive for use with compatible 1/4" drive sockets. - Q: Why is an angle nutrunner beneficial?
A: The angle head allows easier access to fasteners positioned in confined spaces or around nearby components, improving operator positioning during assembly. - Q: What is the free speed of this model?
A: The QA1L08C9LD operates at a free speed of 850 RPM. - Q: What types of applications is this nutrunner intended for?
A: It is designed for precision fastening in general industrial assembly operations where controlled low torque, repeatability, and accessibility are important.
| SKU | Soft Joint Torque Range | Medium Joint Torque Range | Hard Joint Torque Range | Free Speed | Weight | Overall Length | Head Height | Head Width | Drive Size |
|---|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | IN-LBS (NM) | IN-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | IN | |
| QA1L18C4LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 26.1 (1.05 – 2.95) | – | 1,750 | 2.0 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Square |
| QA1L18C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 26.1 (1.05 – 2.95) | – | 1,750 | 2.0 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Hex |
| QA1L12C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 32.7 (1.1 – 3.64) | – | 1,270 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Hex |
| QA1L12C6LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 32.2 (1.1 – 3.64) | – | 1,270 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 3/8" Square |
| QA1L08C4LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 47.2 (1.77 – 5.33) | 850 | 2.0 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Square |
| QA1L08C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 47.2 (1.77 – 5.33) | 850 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Hex |
| QA1L08C9LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 47.2 (1.77 – 5.33) | 850 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Spline |
| QA1L05C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 56.4 (1.77 – 6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.5" (12.7) | 1.3" (33) | 1/4" Hex |
| QA1L05C4LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 56.4 (1.77 – 6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.5" (12.7) | 1.3" (33) | 1/4" Square |
| QA1L05C6LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 56.4 (1.77 – 6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.5" (12.7) | 1.3" (33) | 3/8" Square |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Angle Air Nutrunner
- Actuation
- Lever Start
- Torque Range (nm)
- 3.5 - 33.4
- Torque Range (in-lbs)
- 0.4 - 1.05
- RPM
- 850
- Length (in.)
- 11.9
- Side to Center (in.)
- 0.52
- Spindle Type
- Hex Insert Bit Holder
- Spindle Size (in.)
- 1/4
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 16

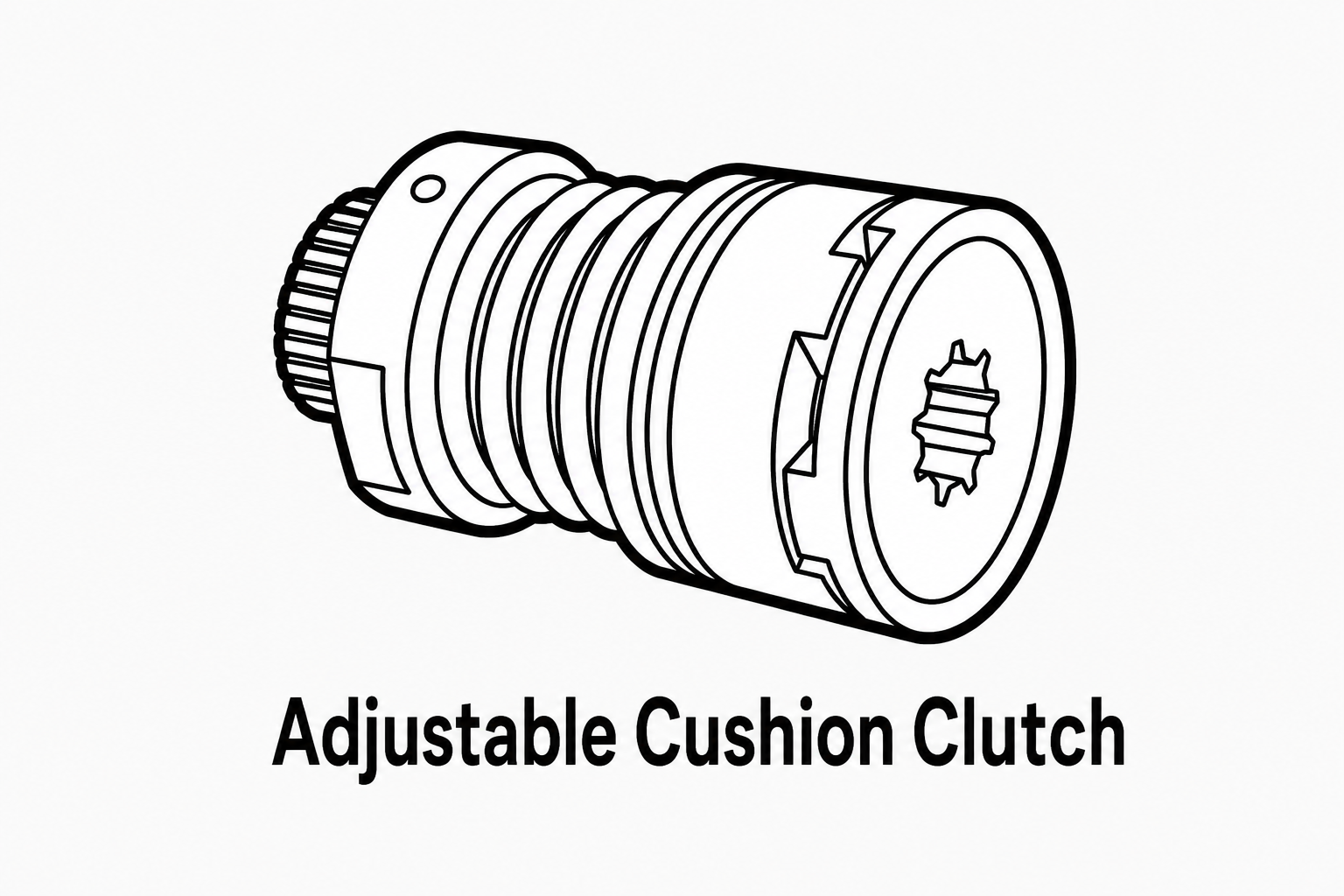

- Clutch Type
- Adjustable Cushion Clutch
- Series
- Q2
