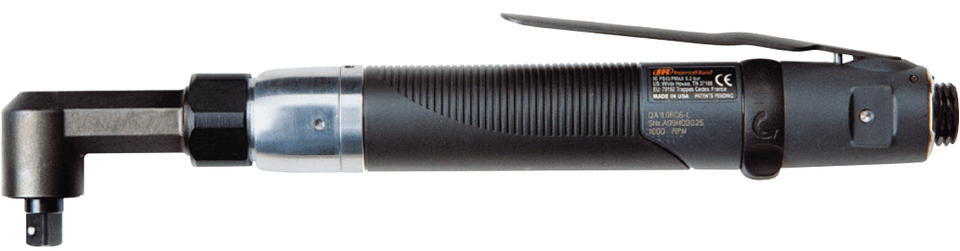

Ingersoll Rand QA1L12C6LD Angle Air Nutrunner is a pneumatic precision fastening tool designed for assembly operations that require controlled low-torque performance and repeatable fastening results. Equipped with a 3/8" square drive, a 3.5–32.2 in-lbs torque range, and a 1,270 RPM free speed, this angle nutrunner provides excellent accessibility in confined work areas while delivering consistent torque for production fastening applications.
QA1L12C6LD features an ergonomic angle head that allows operators to reach fasteners located around obstructions or inside assemblies where straight tools are less practical. Its controlled torque range and pneumatic operation make it well suited for repetitive fastening tasks using compatible 3/8" drive sockets in general industrial manufacturing environments.
Tool Type: Angle Air Nutrunner | Drive Size: 3/8" Square Drive | Torque Range: 3.5–32.2 in-lbs | Free Speed: 1,270 RPM
|
Features:
Made in USA: |
 |
Applications:
- General industrial assembly requiring controlled low-torque fastening.
- Automotive component and subassembly production.
- Appliance, electronics, and light mechanical equipment assembly.
- Assembly stations where an angle tool provides improved access around surrounding components.
- Repetitive fastening operations using compatible 3/8" drive sockets.
FAQs:
- Q: What is the torque range of the QA1L12C6LD?
A: This angle air nutrunner delivers an adjustable torque range of 3.5–32.2 in-lbs. - Q: What drive size does this tool use?
A: The QA1L12C6LD features a 3/8" square drive for use with compatible 3/8" drive sockets. - Q: Why choose an angle nutrunner instead of a straight model?
A: The angle head allows easier access to fasteners positioned in confined spaces or around nearby components, improving operator positioning during assembly. - Q: What is the free speed of this nutrunner?
A: The tool operates at a free speed of 1,270 RPM. - Q: What types of fastening applications is this tool intended for?
A: It is designed for precision, repeatable fastening in general industrial assembly operations where controlled low torque is required.
| SKU | Soft Joint Torque Range | Medium Joint Torque Range | Hard Joint Torque Range | Free Speed | Weight | Overall Length | Head Height | Head Width | Drive Size |
|---|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | IN-LBS (NM) | IN-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | IN | |
| QA1L18C4LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 26.1 (1.05 – 2.95) | – | 1,750 | 2.0 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Square |
| QA1L18C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 26.1 (1.05 – 2.95) | – | 1,750 | 2.0 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Hex |
| QA1L12C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 32.7 (1.1 – 3.64) | – | 1,270 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Hex |
| QA1L12C6LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 32.2 (1.1 – 3.64) | – | 1,270 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 3/8" Square |
| QA1L08C4LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 47.2 (1.77 – 5.33) | 850 | 2.0 (0.9) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Square |
| QA1L08C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 47.2 (1.77 – 5.33) | 850 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Hex |
| QA1L08C9LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 47.2 (1.77 – 5.33) | 850 | 2.1 (1.0) | 11.9" (302.3) | 0.52" (13.2) | 1.3" (33) | 1/4" Spline |
| QA1L05C1LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 56.4 (1.77 – 6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.5" (12.7) | 1.3" (33) | 1/4" Hex |
| QA1L05C4LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 56.4 (1.77 – 6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.5" (12.7) | 1.3" (33) | 1/4" Square |
| QA1L05C6LD | 3.5 – 11.5 (0.4 – 1.3) | 9.3 – 33.4 (1.05 – 3.77) | 15.7 – 56.4 (1.77 – 6.37) | 500 | 2.1 (1.0) | 11.9" (302.3) | 0.5" (12.7) | 1.3" (33) | 3/8" Square |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Angle Air Nutrunner
- Actuation
- Lever Start
- Torque Range (nm)
- 3.5 - 32.2
- Torque Range (in-lbs)
- 0.4 - 3.64
- RPM
- 1270
- Length (in.)
- 11.9
- Side to Center (in.)
- 0.52
- Spindle Type
- Square
- Spindle Size (in.)
- 3/8
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 16
- Clutch Type
- Adjustable Cushion Clutch
- Series
- Q2
