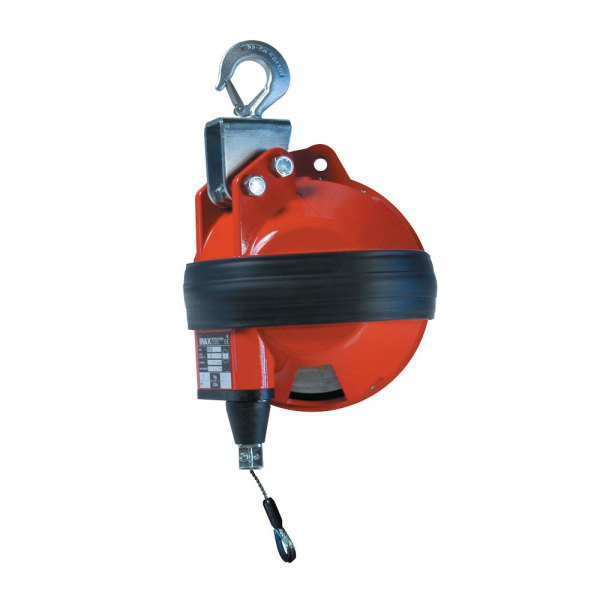

Built for high-capacity production workstations, industrial assembly operations, and heavy maintenance environments, the Ingersoll Rand BSDL-130 medium-duty locking spring balancer supports tools weighing 254–286 lbs. while providing a 9.85 ft. lift. Suspending large tools above the work area helps reduce repetitive lifting, minimizes operator fatigue, and keeps equipment properly positioned for safer, more efficient operation throughout the workday.
As part of the BSDL Series, this locking spring balancer features an integrated cable locking mechanism that secures the suspended load at the desired working height, allowing operators to maintain precise tool positioning during assembly, inspection, and maintenance tasks. Its aluminum housing, stainless steel cable, and precision-guided cable winding system provide smooth, controlled cable movement while helping protect valuable equipment from accidental drops and unnecessary cable wear.
Type: Locking Spring Balancer | Series: BSDL | Load Capacity: 254–286 lbs. (115–130 kg) | Lift: 9.85 ft. (3000 mm) | Housing Material: Aluminum | Cable Material: Stainless Steel
Features:
- Integrated locking mechanism securely holds the suspended load at the selected working height for improved tool positioning during production and maintenance tasks.
- Built-in safety device helps prevent the supported load from falling in the event of spring failure.
- Rotary upper suspension safety hook provides secure installation while allowing smooth balancer movement throughout the work area.
- Precision-guided cable winding system minimizes cable overlap and helps prevent cable binding during extension and retraction.
- Anti-friction cable guide promotes smooth cable travel while reducing cable wear during continuous industrial use.
- Worm screw adjustment allows spring tension to be precisely matched to the supported equipment weight for balanced operation.
- Cable can be visually inspected without disassembling the balancer, simplifying routine preventive maintenance.
- Replacement cable can be installed without complete balancer disassembly, helping minimize equipment downtime.
Made in Italy:
Applications:
- Supports high-capacity pneumatic and electric tools used on heavy manufacturing and production assembly lines.
- Reduces operator fatigue during repetitive fastening, machining, grinding, and industrial processing operations.
- Improves workstation ergonomics in fabrication facilities, heavy equipment manufacturing, and maintenance departments.
- Keeps large handheld equipment suspended, organized, and positioned within easy reach to improve workflow efficiency.
- Suitable for industrial applications where reliable suspended tool support and precise equipment positioning are essential.
FAQs:
- Q: What is the benefit of the locking mechanism?
A: The locking mechanism allows the suspended tool to remain at a selected working height, providing greater control and positioning accuracy during assembly, maintenance, and inspection tasks. - Q: How do I determine whether the BSDL-130 is the correct balancer?
A: The combined weight of the tool and any attached accessories should fall within the balancer's rated capacity. The BSDL-130 is intended for loads between 254 and 286 lbs. - Q: Can the cable be replaced if it becomes worn?
A: Yes. The BSDL Series is designed so the cable can be replaced without fully disassembling the balancer, helping reduce maintenance time and service interruptions. - Q: What types of equipment can this balancer support?
A: It is intended for heavier pneumatic tools, electric tools, and similar industrial equipment weighing between 254 and 286 lbs. that benefit from ergonomic suspended operation.
| SKU | Capacity lb (kg) |
Weight lb (kg) |
Lift ft (mm) |
NPT in |
CFM |
|---|---|---|---|---|---|
| Super Duty | |||||
| BSD-20 | 33 - 44 (15 - 20) | 41.9 (18.6) | 8.2 (2,500) | - | - |
| BSD-30 | 44 - 66 (20 - 30) | 43.7 (19.8) | 8.2 (2,500) | - | - |
| BSD-40 | 66 - 88 (30 - 40) | 45.9 (20.8) | 8.2 (2,500) | - | - |
| BSD-50 | 88 - 110 (40 - 50) | 52.7 (23.9) | 8.2 (2,500) | - | - |
| BSD-60 | 110 - 132 (50 - 60) | 56 (25.4) | 8.2 (2,500) | - | - |
| BSD-70 | 132 - 154 (60 - 70) | 59.1 (26.8) | 8.2 (2,500) | - | - |
| BSD-80 | 154 - 176 (70 - 80) | 61.3 (27.8) | 8.2 (2,500) | - | - |
| BSD-90 | 176 - 198 (80 - 90) | 63.5 (28.8) | 8.2 (2,500) | - | - |
| BSD-100 | 198 - 220 (90 - 100) | 78.5 (35.6) | 8.2 (2,500) | - | - |
| BSD-120 | 220 - 265 (100 - 120) | 85.3 (38.8) | 8.2 (2,500) | - | - |
| BSD-140 | 265 - 309 (120 - 140) | 92.2 (41.8) | 8.2 (2,500) | - | - |
| BSD-150 | 287 - 330 (130 - 150) | 98.1 (44.5) | 8.2 (2,500) | - | - |
| BSD-165 | 330 - 363 (150 - 165) | 106.3 (48.2) | 8.2 (2,500) | - | - |
| BSDL-20 | 33 - 44 (15 - 20) | 42.1 (19.1) | 9.8 (3,000) | - | - |
| BSDL-25 | 44 - 55 (20 - 25) | 43.9 (19.9) | 9.8 (3,000) | - | - |
| BSDL-35 | 55 - 77 (25 - 35) | 46.1 (20.9) | 9.8 (3,000) | - | - |
| BSDL-45 | 77 - 99 (35 - 45) | 52.5 (23.8) | 9.8 (3,000) | - | - |
| BSDL-50 | 99 - 110 (40 - 50) | 52.7 (23.9) | 9.8 (3,000) | - | - |
| BSDL-60 | 110 - 132 (50 - 60) | 55.8 (25.3) | 9.8 (3,000) | - | - |
| BSDL-70 | 132 - 154 (60 - 70) | 58.9 (26.7) | 9.8 (3,000) | - | - |
| BSDL-80 | 154 - 176 (70 - 80) | 61.7 (28.0) | 9.8 (3,000) | - | - |
| BSDL-90 | 176 - 198 (80 - 90) | 64 (29.0) | 9.8 (3,000) | - | - |
| BSDL-100 | 198 - 220 (90 - 100) | 81.1 (36.8) | 9.8 (3,000) | - | - |
| BSDL-115 | 220 - 254 (100 - 115) | 85.3 (38.7) | 9.8 (3,000) | - | - |
| BSDL-130 | 254 - 286 (115 - 130) | 88 (39.9) | 9.8 (3,000) | - | - |
| BSDL-140 | 286 - 309 (130 - 140) | 94.4 (42.8) | 9.8 (3,000) | - | - |
| BSDL-150 | 309 - 330 (140 - 150) | 100.6 (45.6) | 9.8 (3,000) | - | - |
For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Balancer
- Capacity (lbs)
- 254-286
- Capacity (kg)
- 115-130
- Lift (ft.)
- 9.85
- Lift (mm)
- 3000
- Housing Material
- Aluminum
- Cable Material
- Stainless Steel
