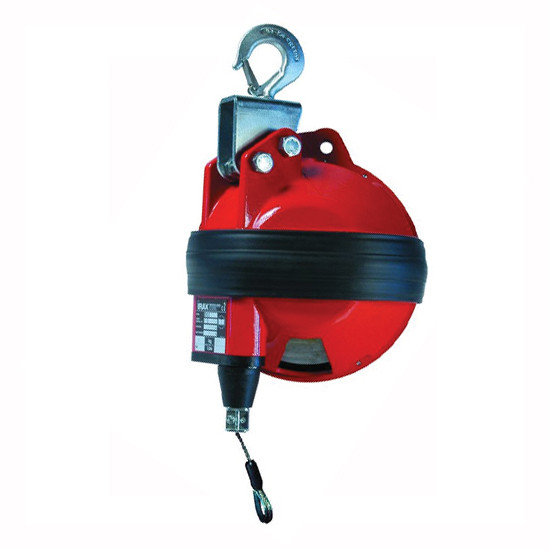

The Ingersoll Rand BSD-90 Super Duty Spring Balancer with Safety Hook is designed to support heavier power tools and manufacturing equipment where repetitive or prompt vertical movement of a fixed load is required. It provides a 176–198 lbs load capacity and 8.2 ft lift, helping compensate for the weight of supported equipment so operators can move compatible loads with less effort along the cable travel.
The BSD-90 is part of the BSD Series and has a listed 63.5 lbs balancer weight. It uses an aluminum housing and stainless-steel cable, with a dimension type B configuration. The BSD Series includes gravity-free suspension capability, a safety device against load dropping due to spring breakage, upper rotary suspension with safety hook, a locking device to block the load at any height, adjustable stroke limiting, an anti-friction cable guide, precision-guided cable winding, and visible cable for inspection.
Type: Super-Duty Spring Balancer | Series: BSD Series | Model: BSD-90 | Load Capacity: 176–198 lbs | Lift: 8.2 ft | Balancer Weight: 63.5 lbs | Housing Material: Aluminum | Cable Material: Stainless Steel | Dimension Type: B | Suspension: Safety Hook
Features:
- Super Duty spring-balancer design provides gravity-free suspension capability for compatible tools and equipment.
- 176–198 lbs load capacity accommodates supported equipment within the specified operating range.
- 8.2 ft lift provides extended vertical travel for supported equipment.
- Ribbed and sealed monobloc construction in aluminum alloy provides the specified housing construction.
- Stainless-steel cable provides the specified cable construction.
- Anti-friction cable guide helps guide the cable during operation.
- Precision-guided cable winding helps prevent jamming during cable movement.
- Safety device helps prevent load dropping due to spring breakage.
- Upper rotary suspension with safety hook provides the specified overhead suspension arrangement.
- Locking device allows the supported load to be blocked at any height.
- Adjustable stroke-limiting device allows the available cable travel to be controlled.
- Visible cable allows the cable condition to be inspected during use.
Made in Italy:
Applications:
- Assembly workstations requiring overhead support for tools weighing within the 176–198 lbs capacity range.
- Production stations where heavier tools or manufacturing equipment are repeatedly raised, lowered, and repositioned.
- Automotive service and maintenance applications requiring supported vertical movement of compatible equipment.
- Industrial MRO workstations using equipment within the balancer's rated capacity.
- Workstations requiring an extended 8.2 ft vertical range for suspended tools or equipment.
FAQs:
- Q: What is the load capacity of the BSD-90?
A: The BSD-90 is specified for loads from 176 to 198 lbs. - Q: How much lift does the BSD-90 provide?
A: The BSD-90 provides 8.2 ft of vertical lift, equivalent to 2,500 mm. - Q: What is the weight of the BSD-90 balancer?
A: The manufacturer lists the BSD-90 balancer weight as 63.5 lbs. - Q: Does the BSD-90 include a safety hook?
A: Yes. The BSD-90 uses an upper rotary suspension with a safety hook. - Q: Can the BSD-90 hold a supported load at a selected height?
A: Yes. The BSD Series includes a locking device designed to block the load at any height. - Q: What is the purpose of the visible cable?
A: The visible cable allows the cable condition to be inspected during use. - Q: Can the BSD-90 support more than 198 lbs?
A: No. The specified load capacity is 176–198 lbs, so the complete supported load should remain within that range.
| SKU | Capacity lb (kg) |
Weight lb (kg) |
Lift ft (mm) |
NPT in |
CFM |
|---|---|---|---|---|---|
| Super Duty | |||||
| BSD-20 | 33 - 44 (15 - 20) | 41.9 (18.6) | 8.2 (2,500) | - | - |
| BSD-30 | 44 - 66 (20 - 30) | 43.7 (19.8) | 8.2 (2,500) | - | - |
| BSD-40 | 66 - 88 (30 - 40) | 45.9 (20.8) | 8.2 (2,500) | - | - |
| BSD-50 | 88 - 110 (40 - 50) | 52.7 (23.9) | 8.2 (2,500) | - | - |
| BSD-60 | 110 - 132 (50 - 60) | 56 (25.4) | 8.2 (2,500) | - | - |
| BSD-70 | 132 - 154 (60 - 70) | 59.1 (26.8) | 8.2 (2,500) | - | - |
| BSD-80 | 154 - 176 (70 - 80) | 61.3 (27.8) | 8.2 (2,500) | - | - |
| BSD-90 | 176 - 198 (80 - 90) | 63.5 (28.8) | 8.2 (2,500) | - | - |
| BSD-100 | 198 - 220 (90 - 100) | 78.5 (35.6) | 8.2 (2,500) | - | - |
| BSD-120 | 220 - 265 (100 - 120) | 85.3 (38.8) | 8.2 (2,500) | - | - |
| BSD-140 | 265 - 309 (120 - 140) | 92.2 (41.8) | 8.2 (2,500) | - | - |
| BSD-150 | 287 - 330 (130 - 150) | 98.1 (44.5) | 8.2 (2,500) | - | - |
| BSD-165 | 330 - 363 (150 - 165) | 106.3 (48.2) | 8.2 (2,500) | - | - |
| BSDL-20 | 33 - 44 (15 - 20) | 42.1 (19.1) | 9.8 (3,000) | - | - |
| BSDL-25 | 44 - 55 (20 - 25) | 43.9 (19.9) | 9.8 (3,000) | - | - |
| BSDL-35 | 55 - 77 (25 - 35) | 46.1 (20.9) | 9.8 (3,000) | - | - |
| BSDL-45 | 77 - 99 (35 - 45) | 52.5 (23.8) | 9.8 (3,000) | - | - |
| BSDL-50 | 99 - 110 (40 - 50) | 52.7 (23.9) | 9.8 (3,000) | - | - |
| BSDL-60 | 110 - 132 (50 - 60) | 55.8 (25.3) | 9.8 (3,000) | - | - |
| BSDL-70 | 132 - 154 (60 - 70) | 58.9 (26.7) | 9.8 (3,000) | - | - |
| BSDL-80 | 154 - 176 (70 - 80) | 61.7 (28.0) | 9.8 (3,000) | - | - |
| BSDL-90 | 176 - 198 (80 - 90) | 64 (29.0) | 9.8 (3,000) | - | - |
| BSDL-100 | 198 - 220 (90 - 100) | 81.1 (36.8) | 9.8 (3,000) | - | - |
| BSDL-115 | 220 - 254 (100 - 115) | 85.3 (38.7) | 9.8 (3,000) | - | - |
| BSDL-130 | 254 - 286 (115 - 130) | 88 (39.9) | 9.8 (3,000) | - | - |
| BSDL-140 | 286 - 309 (130 - 140) | 94.4 (42.8) | 9.8 (3,000) | - | - |
| BSDL-150 | 309 - 330 (140 - 150) | 100.6 (45.6) | 9.8 (3,000) | - | - |
For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
