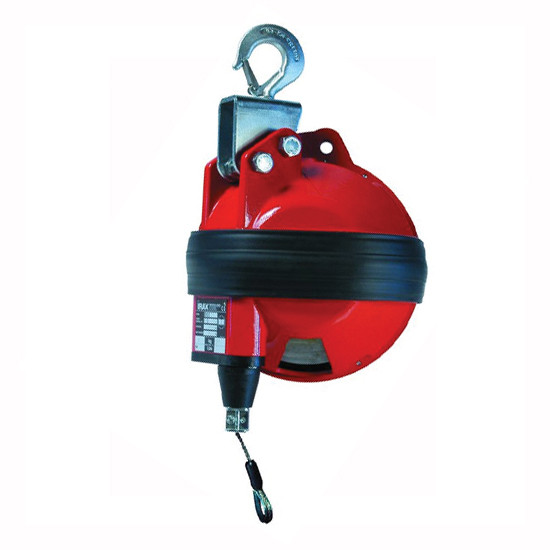

Ingersoll Rand BSD-70 Super Duty Spring Balancer with Safety Hook is designed to support heavier tools and equipment during repetitive assembly, production, service, maintenance, and MRO operations. It provides a 132–154 lbs load capacity and 8.2 ft lift, helping counter the weight of supported equipment while allowing compatible loads to move through the available vertical travel.
The BSD-70 is part of the BSD Series of Super Duty Spring Balancers and has a listed 59.1 lbs balancer weight. Manufacturer specifications identify an aluminum housing and stainless-steel cable, with the BSD-70 using dimension type B. The BSD Series includes a safety device against load dropping, upper suspension with rotary safety hook, precision-guided cable winding, anti-friction cable guidance, worm-screw capacity adjustment, an alignable rotating upper hook, cable replacement without balancer disassembly, and visible cable for inspection.
Type: Super-Duty Spring Balancer | Series: BSD Series | Model: BSD-70 | Load Capacity: 132–154 lbs | Lift: 8.2 ft | Balancer Weight: 59.1 lbs | Housing Material: Aluminum | Cable Material: Stainless Steel | Dimension Type: B | Suspension: Safety Hook
Features:
- Super Duty spring-balancer design provides spring-assisted overhead support for compatible tools and equipment.
- 132–154 lbs load capacity accommodates supported equipment within the specified operating range.
- 8.2 ft lift provides extended vertical travel for supported equipment.
- Ribbed and sealed monobloc construction in aluminum alloy provides the specified housing construction.
- Stainless-steel cable provides the specified cable construction.
- Anti-friction cable guide helps guide the cable during operation.
- Safety device helps prevent load dropping.
- Upper suspension with rotary safety hook provides the specified overhead suspension arrangement.
- Precision-guided cable winding helps prevent jamming during cable movement.
- Worm-screw capacity adjustment provides adjustment for the supported load.
- Alignable rotating upper hook allows the upper suspension to be positioned as specified for the BSD Series.
- Visible cable allows the cable condition to be inspected during use.
- Cable replacement can be performed without balancer disassembly.
Made in Italy:
Applications:
- Assembly workstations requiring overhead support for tools weighing within the 132–154 lbs capacity range.
- Production stations where heavier tools or equipment are repeatedly raised, lowered, and repositioned.
- Automotive service and maintenance applications requiring supported vertical movement of compatible equipment.
- Industrial MRO workstations using equipment within the balancer's rated capacity.
- Workstations requiring an extended 8.2 ft vertical range for suspended tools or equipment.
FAQs:
- Q: What is the load capacity of the BSD-70?
A: The BSD-70 is specified for loads from 132 to 154 lbs. - Q: How much lift does the BSD-70 provide?
A: The BSD-70 provides 8.2 ft of vertical lift, equivalent to 2,500 mm. - Q: What is the weight of the BSD-70 balancer?
A: The manufacturer lists the BSD-70 balancer weight as 59.1 lbs. - Q: Does the BSD-70 include a safety hook?
A: Yes. The BSD-70 uses an upper suspension with a rotary safety hook. - Q: What type of cable does the BSD-70 use?
A: The BSD-70 uses a stainless-steel cable with an anti-friction cable guide. - Q: What is the purpose of the visible cable?
A: The visible cable allows its condition to be inspected during use. - Q: Can the BSD-70 support more than 154 lbs?
A: No. The specified load capacity is 132–154 lbs, so the complete supported load should remain within that range.
| SKU | Capacity lb (kg) |
Weight lb (kg) |
Lift ft (mm) |
NPT in |
CFM |
|---|---|---|---|---|---|
| Super Duty | |||||
| BSD-20 | 33 - 44 (15 - 20) | 41.9 (18.6) | 8.2 (2,500) | - | - |
| BSD-30 | 44 - 66 (20 - 30) | 43.7 (19.8) | 8.2 (2,500) | - | - |
| BSD-40 | 66 - 88 (30 - 40) | 45.9 (20.8) | 8.2 (2,500) | - | - |
| BSD-50 | 88 - 110 (40 - 50) | 52.7 (23.9) | 8.2 (2,500) | - | - |
| BSD-60 | 110 - 132 (50 - 60) | 56 (25.4) | 8.2 (2,500) | - | - |
| BSD-70 | 132 - 154 (60 - 70) | 59.1 (26.8) | 8.2 (2,500) | - | - |
| BSD-80 | 154 - 176 (70 - 80) | 61.3 (27.8) | 8.2 (2,500) | - | - |
| BSD-90 | 176 - 198 (80 - 90) | 63.5 (28.8) | 8.2 (2,500) | - | - |
| BSD-100 | 198 - 220 (90 - 100) | 78.5 (35.6) | 8.2 (2,500) | - | - |
| BSD-120 | 220 - 265 (100 - 120) | 85.3 (38.8) | 8.2 (2,500) | - | - |
| BSD-140 | 265 - 309 (120 - 140) | 92.2 (41.8) | 8.2 (2,500) | - | - |
| BSD-150 | 287 - 330 (130 - 150) | 98.1 (44.5) | 8.2 (2,500) | - | - |
| BSD-165 | 330 - 363 (150 - 165) | 106.3 (48.2) | 8.2 (2,500) | - | - |
| BSDL-20 | 33 - 44 (15 - 20) | 42.1 (19.1) | 9.8 (3,000) | - | - |
| BSDL-25 | 44 - 55 (20 - 25) | 43.9 (19.9) | 9.8 (3,000) | - | - |
| BSDL-35 | 55 - 77 (25 - 35) | 46.1 (20.9) | 9.8 (3,000) | - | - |
| BSDL-45 | 77 - 99 (35 - 45) | 52.5 (23.8) | 9.8 (3,000) | - | - |
| BSDL-50 | 99 - 110 (40 - 50) | 52.7 (23.9) | 9.8 (3,000) | - | - |
| BSDL-60 | 110 - 132 (50 - 60) | 55.8 (25.3) | 9.8 (3,000) | - | - |
| BSDL-70 | 132 - 154 (60 - 70) | 58.9 (26.7) | 9.8 (3,000) | - | - |
| BSDL-80 | 154 - 176 (70 - 80) | 61.7 (28.0) | 9.8 (3,000) | - | - |
| BSDL-90 | 176 - 198 (80 - 90) | 64 (29.0) | 9.8 (3,000) | - | - |
| BSDL-100 | 198 - 220 (90 - 100) | 81.1 (36.8) | 9.8 (3,000) | - | - |
| BSDL-115 | 220 - 254 (100 - 115) | 85.3 (38.7) | 9.8 (3,000) | - | - |
| BSDL-130 | 254 - 286 (115 - 130) | 88 (39.9) | 9.8 (3,000) | - | - |
| BSDL-140 | 286 - 309 (130 - 140) | 94.4 (42.8) | 9.8 (3,000) | - | - |
| BSDL-150 | 309 - 330 (140 - 150) | 100.6 (45.6) | 9.8 (3,000) | - | - |
For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
