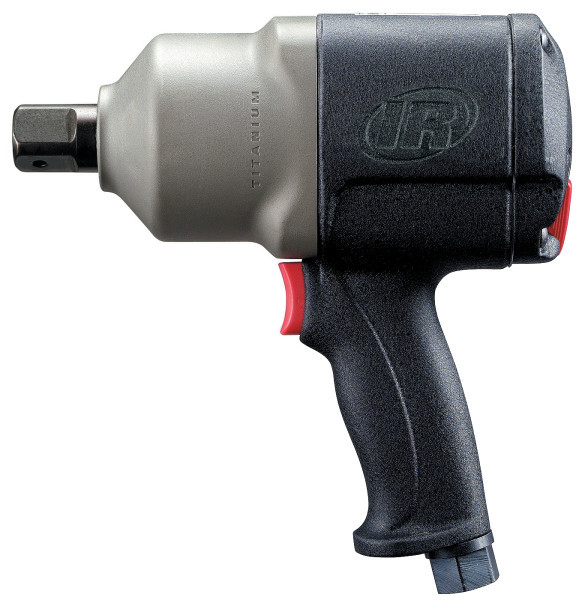

Ingersoll Rand 2925RBP3Ti Super Duty Impact Wrench | 1" Drive | 5200 RPM | 1600 (ft-lbs) Max Torque

For demanding large-fastener removal where a 1"-drive pistol-grip wrench provides the preferred socket capacity and handling profile, the Ingersoll Rand 2925RBP3Ti Super Duty Impact Wrench delivers 1,300 ft-lbs of forward torque for fastening and up to 1,600 ft-lbs of maximum reverse torque for breaking loose resistant connections. Its 1" square drive with thru-hole accommodates compatible impact-rated sockets and positive retention hardware, while the 5,200 RPM free speed helps reduce fastener run-down time between impact cycles.

The 2925RBP3Ti combines a reverse-biased motor with a twin hammer impact mechanism (two hammers that deliver balanced impacts to the anvil for consistent torque transfer), providing higher output in reverse for removal-focused applications. A titanium hammer case protects the impact system while helping control tool weight, and bronze endplates with corrosion-preventative treatment help protect internal components in wet and outdoor working environments. Pressure-fed mechanism lubrication distributes lubricant throughout the impact system, while the integral muffler helps manage exhaust noise during operation.

Type: Air Impact Wrench | Series: 2925 Series | Model: 2925RBP3Ti | Configuration: Pistol | Actuation: Trigger | Drive Size: 1" | Drive Type: Square, Thru-Hole | Impact Mechanism: Twin Hammer | Motor Configuration: Reverse Biased | Forward Torque: 1,300 ft-lbs | Max Reverse Torque: 1,600 ft-lbs | Free Speed: 5,200 RPM | Hammer Case: Titanium

Features:

• Reverse-biased motor provides increased reverse output for demanding fastener-removal applications.
• Twin hammer impact mechanism delivers balanced impacts for consistent torque transfer under load.
• Titanium hammer case provides durable protection around the impact mechanism while helping reduce tool weight.
• Bronze endplates and corrosion-preventative treatment help protect internal components against corrosion and wear in wet or outdoor environments.
• Pressure-fed mechanism lubrication provides lubricant coverage throughout the impact system.
• 1" square drive with thru-hole accommodates compatible impact-rated sockets and positive socket-retention hardware.
• Integral muffler helps manage exhaust noise during pneumatic tool operation.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Heavy machinery maintenance — breaking loose and servicing large fasteners on construction, mining, agricultural, and industrial equipment.
• Rail maintenance — handling substantial bolted connections during rolling-stock and railway equipment repair.
• Oil and gas operations — completing large-fastener removal and installation during field equipment and facility maintenance.
• Shipbuilding and marine service — working on heavy mechanical assemblies where corrosion-resistant tool construction is beneficial.
• Industrial maintenance and MRO — removing stubborn 1"-drive fasteners from production machinery, structural assemblies, and plant equipment.

FAQs:

• Q: Is 1,600 ft-lbs the tightening torque of the Ingersoll Rand 2925RBP3Ti?
  A: No. The 1,600 ft-lbs figure is the maximum reverse torque rating for fastener removal. The manufacturer lists 1,300 ft-lbs of forward torque for fastening.
• Q: What does the reverse-biased configuration mean?
  A: The motor is configured to provide greater torque output in reverse than in forward operation. This makes the 2925RBP3Ti particularly useful for applications where breaking loose stubborn fasteners is a primary requirement.
• Q: What is the difference between the 2925RBP3Ti and 2925RBP1Ti?
  A: The primary difference is drive size. The 2925RBP3Ti uses a 1" square drive with thru-hole, while the 2925RBP1Ti uses a 3/4" square drive with thru-hole. Both reverse-biased configurations are rated at 5,200 RPM, 1,300 ft-lbs of forward torque, and 1,600 ft-lbs of maximum reverse torque.
• Q: What sockets should be used with this impact wrench?
  A: Use compatible 1"-drive impact-rated sockets. The thru-hole in the square drive allows appropriate positive socket-retention hardware to be used when required by the application.
• Q: Why are bronze endplates and corrosion-preventative treatment used on the 2925 Series?
  A: These design features help protect internal components against corrosion and wear, making the tool better suited to wet, outdoor, and other demanding working environments when properly maintained.

Ingersoll Rand 2925RBP3Ti Impact Wrench Parts List
