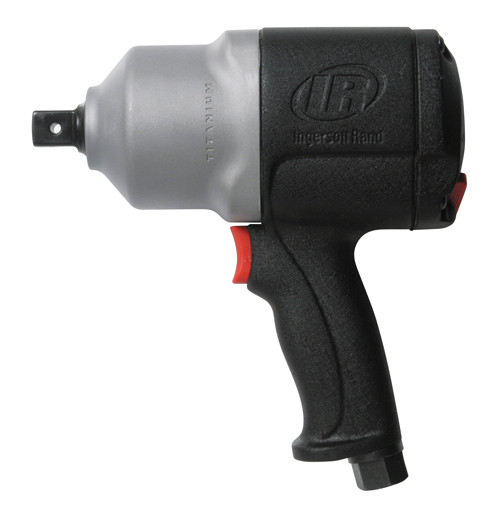

Ingersoll Rand 2925RBP1Ti Super Duty Impact Wrench | 3/4" Drive | 5200 RPM | 1600 (ft-lbs) Max Torque

When large industrial fasteners require strong removal power in a compact pistol-grip configuration, the Ingersoll Rand 2925RBP1Ti Super Duty Impact Wrench delivers 1,300 ft-lbs of forward torque for fastening and up to 1,600 ft-lbs of maximum reverse torque for breaking loose resistant connections. Its 3/4" square drive with thru-hole accommodates compatible impact-rated sockets and positive retention hardware, while the 5,200 RPM free speed supports efficient fastener run-down before the impact mechanism begins delivering torque under load.

The 2925RBP1Ti uses a twin hammer impact mechanism (two hammers that deliver balanced impacts to the anvil for consistent torque transfer) and a reverse-biased motor configuration that provides greater reverse output for demanding fastener removal. A titanium hammer case helps reduce weight while protecting the impact mechanism, and bronze endplates with a corrosion-preventative treatment help protect internal components in wet and outdoor environments. Pressure-fed mechanism lubrication provides coverage throughout the tool, while the integral muffler helps manage exhaust noise during operation. These features make the 2925RBP1Ti well suited to general industrial work, rail maintenance, heavy machinery service, oil and gas operations, and shipbuilding.

Type: Air Impact Wrench | Series: 2925 Series | Model: 2925RBP1Ti | Configuration: Pistol | Actuation: Trigger | Drive Size: 3/4" | Drive Type: Square, Thru-Hole | Impact Mechanism: Twin Hammer | Forward Torque: 1,300 ft-lbs / 1,763 Nm | Max Reverse Torque: 1,600 ft-lbs / 2,169 Nm | Blows Per Minute: 1,050 BPM | Free Speed: 5,200 RPM | Impacting Sound Level: 95.9 / 106.9 dB(A) pressure/power | Free Speed Sound Level: 99.6 / 110.6 dB(A) pressure/power | Vibration Level: 10.5 m/s² (K: 1) | Weight: 12 lbs / 5.44 kg | Width: 3.5" / 89 mm | Height: 9.6" / 244 mm | Length: 8.9" / 226 mm | Air Inlet: 3/8" | Minimum Hose Size: 1/2" / 13 mm | Air Consumption at Load: 60 CFM / 1,699 L/min | Average Air Consumption: 12 CFM / 340 L/min | Operating Pressure: 90 PSI / 6.2 bar

Features:

• Twin hammer impact mechanism delivers consistent power while remaining less sensitive to air pressure fluctuations.
• Reverse-biased motor provides higher reverse torque for loosening stubborn and heavily loaded fasteners.
• Titanium hammer case combines reduced weight with durable protection around the impact mechanism.
• Bronze endplates and a corrosion-preventative treatment help protect internal components in outdoor and wet working environments.
• Pressure-fed mechanism lubrication ensures complete lubrication coverage throughout the tool.
• Integral muffler helps manage exhaust noise during pneumatic tool operation.
• 3/4" square drive with thru-hole supports compatible impact sockets and positive socket-retention hardware.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Heavy machinery maintenance — removing and installing large fasteners on construction, mining, agricultural, and industrial equipment.
• Rail maintenance — handling high-torque bolted connections during rolling-stock and railway equipment service.
• Oil and gas operations — completing fastening and removal tasks in field and facility maintenance environments.
• Shipbuilding and marine work — servicing large mechanical assemblies where corrosion-resistant tool construction is beneficial.
• General industrial maintenance and MRO — removing stubborn fasteners and completing large-bolt work on production machinery and plant equipment.

FAQs:

• Q: Is 1,600 ft-lbs the tightening torque of the Ingersoll Rand 2925RBP1Ti?
  A: No. Ingersoll Rand lists 1,600 ft-lbs as the maximum reverse torque for fastener removal. The manufacturer specifies 1,300 ft-lbs of forward torque for fastening.
• Q: What is the difference between the 2925RBP1Ti and 2925P1Ti?
  A: Both models use a 3/4" square thru-hole drive, pistol configuration, trigger actuation, and 5,200 RPM free speed. The 2925RBP1Ti uses a reverse-biased motor and produces 1,300 ft-lbs forward and 1,600 ft-lbs maximum reverse torque, compared with 1,100 ft-lbs forward and 1,450 ft-lbs maximum reverse torque for the 2925P1Ti.
• Q: How much compressed air does the 2925RBP1Ti require?
  A: Ingersoll Rand specifies 60 CFM air consumption at load and 12 CFM average air consumption at 90 PSI. Size the compressor and air-delivery system for the expected duty cycle and the higher airflow required while the wrench is operating under load.
• Q: What air hose size should be used with this impact wrench?
  A: The manufacturer specifies a minimum 1/2" or 13 mm air hose and a 3/8" air inlet. Restrictive fittings or undersized supply lines can reduce airflow and limit tool performance.
• Q: What sockets fit the 2925RBP1Ti?
  A: This wrench uses a 3/4" square drive with a thru-hole and requires compatible 3/4"-drive impact-rated sockets. The thru-hole permits use of appropriate positive socket-retention hardware.

Ingersoll Rand 2925RBP1Ti Impact Wrench Parts List

Looking for more information about Ingersoll Rand Impact Wrench? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Impact Wrenches, please call (800) 608-5210 or email info@intlairtool.com
