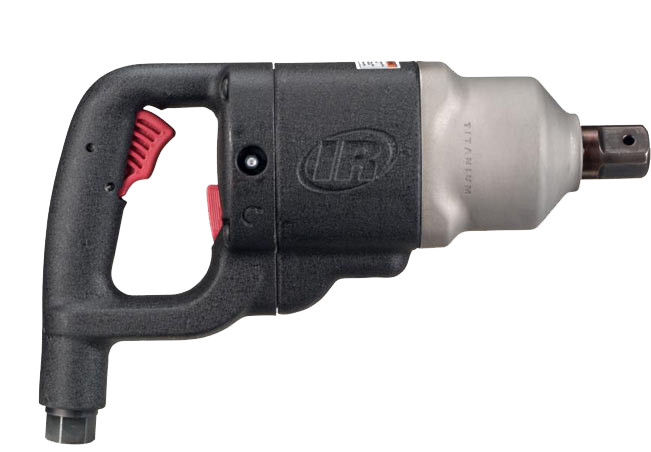

Built for demanding large-fastener work where 1"-drive socket capacity and two-handed tool control are required, the Ingersoll Rand 2925B2Ti Super Duty Air Impact Wrench combines a D-handle configuration with a 1" square drive for heavy bolting applications. Its 6,500 RPM free speed supports efficient fastener run-down, while the high-output impact system provides the power needed for large connections encountered in heavy machinery, rail, energy, marine, and general industrial maintenance.
The 2925B2Ti uses a twin hammer impact mechanism (two hammers that deliver balanced impacts to the anvil for consistent torque transfer) and a titanium hammer case that protects the impact system while helping control overall tool weight. Its D-handle layout provides multiple gripping points for positioning the wrench under load, while pressure-fed mechanism lubrication distributes lubricant throughout the impact system. Bronze endplates and corrosion-preventative treatment further support operation in wet and outdoor working environments when the tool is properly maintained.
Type: Air Impact Wrench | Series: 2925 Series | Model: 2925B2Ti | Configuration: D-Handle | Drive Size: 1" | Drive Type: Square Drive | Impact Mechanism: Twin Hammer | Free Speed: 6,500 RPM | Hammer Case: Titanium
Features:
- Twin hammer impact mechanism delivers balanced impacts for consistent torque transfer during large-fastener work.
- Titanium hammer case provides durable protection around the impact mechanism while helping control tool weight.
- D-handle configuration provides multiple gripping points for positioning and controlling the wrench under load.
- Pressure-fed mechanism lubrication provides lubricant coverage throughout the impact system.
- Bronze endplates and corrosion-preventative treatment help protect internal components against corrosion and wear in wet or outdoor environments.
- 1" square drive accepts compatible impact-rated sockets for large industrial and heavy-equipment fasteners.
- Integral muffler helps manage exhaust noise during pneumatic tool operation.
Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)
Applications:
- Heavy machinery maintenance — removing and installing large fasteners on construction, mining, agricultural, and industrial equipment.
- Rail maintenance — servicing substantial bolted connections on rolling stock and railway equipment.
- Oil and gas operations — completing large-fastener work during equipment, pipeline-support, and facility maintenance.
- Shipbuilding and marine service — handling heavy mechanical connections where corrosion-resistant tool features are beneficial.
- General industrial MRO — maintaining production machinery, structural assemblies, and plant equipment that require 1"-drive impact sockets.
FAQs:
- Q: What drive size does the Ingersoll Rand 2925B2Ti use?
A: The 2925B2Ti uses a 1" square drive and should be paired with compatible 1"-drive impact-rated sockets. - Q: What is the benefit of the D-handle configuration?
A: The D-handle provides additional gripping positions compared with a conventional pistol-grip layout, helping the operator position and control a larger impact wrench during demanding bolting work. - Q: Why does the 2925B2Ti use a titanium hammer case?
A: The titanium hammer case protects the impact mechanism while helping reduce unnecessary weight compared with heavier conventional materials. - Q: What does pressure-fed mechanism lubrication do?
A: The system distributes lubricant throughout the impact mechanism to support proper lubrication of internal components during operation. - Q: What sockets should be used with this impact wrench?
A: Use correctly sized 1"-drive impact-rated sockets and the appropriate socket-retention components specified for the tool's anvil configuration. Standard chrome hand-tool sockets should not be used with an impact wrench.
| SKU | Description | Actuation | Details | Handle | rpm | bpm | ft-lbs (Nm) | ft-lb (Nm) | lb (kg) | in (mm) | in (mm) | cfm (l/s) | m/s² (K²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4"-1" | |||||||||||||
| 2925P1TI | 3/4" Square | Trigger | Thru-Hole | Pistol | 5200 | 1050 | 1450 (1966) | 350-1100 (475-1492) | 12 (5.44) | 8.9 (226) | 1.75 (44) | 60 (1699) | 10.5 (1) |
| 2925RBP1TI | 3/4" Square | Trigger | Thru-Hole | Pistol | 5200 | 1050 | 1600 (2169) | 400-1400 (542-1898) | 12 (5.44) | 8.9 (226) | 1.75 (44) | 60 (1699) | 10.5 (1) |
| 2925RBP1TIEX | 3/4" Square | Trigger Inside | Thru-Hole | Pistol | 5200 | 1050 | 1600 (2169) | 400-1400 (542-1898) | 12 (5.44) | 8.9 (226) | 1.75 (44) | 60 (1699) | 10.5 (1) |
| 2925P3Ti | 1" Square | Trigger | Thru-Hole | Pistol | 5200 | 1050 | 1450 (1966) | 350-1100 (475-1492) | 12.2 (5.54) | 9.04 (230) | 1.75 (44) | 60 (1699) | 10.5 (1) |
| 2925B2Ti | 1" Square | Trigger Inside | Thru-Hole | D-Handle | 6500 | 900 | 1700 (2304) | 350-1100 (475-1492) | 15.2 (6.89) | 13.3 (337) | 1.75 (44) | 60 (1699) | 9.8 (1.3) |
| 2925RB2Ti | 1" Square | Trigger Inside | Thru-Hole | D-Handle | 6500 | 900 | 1700 (2304) | 400-1400 (542-1898) | 15.2 (6.89) | 13.3 (337) | 1.75 (44) | 60 (1699) | 9.8 (1.3) |
| 2925RBP3Ti | 1" Square | Trigger | Thru-Hole | Pistol | 5200 | 1050 | 1600 (2169) | 400-1400 (542-1898) | 12.2 (5.54) | 9 (230) | 1.75 (44) | 60 (1699) | 10.5 (1) |
Ingersoll Rand 2925B2TI Impact Wrench Parts List
Looking for more information about Ingersoll Rand Impact Wrench? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Impact Wrenches, please call (800) 608-5210 or email info@intlairtool.com
