Coxreels LG-LPL-125 Compact Efficient Spring Rewind Hose Reel | LG Series | 1/4" Hose Diameter | 25' Hose Length | 300 Max PSI | Less Hose

When mounting space is limited, the Coxreels LG-LPL-125 Spring Rewind Hose Reel provides compact storage for up to 25 ft of 1/4 in. I.D. hose. The LG Series "Little Giant" is lightweight and compact enough to install in restricted work areas while accepting hose and tubing for commercial or industrial use. Its enclosed, factory-tuned cartridge-style spring motor automatically retrieves the hose, helping keep benches, machines, and service areas organized.

Rated for a 300 PSI maximum working pressure, the LG-LPL-125 is supplied without hose and may be used for air, water, or oil service when fitted with a compatible hose. A CoxComposite™ grommet uses a continuous-radius design to help prevent pinching or catching during operation, while the non-corrosive CoxComposite ratchet hub secures the hose at the desired working length. The one-piece 12-gauge steel base and support post provide stability in a compact footprint.

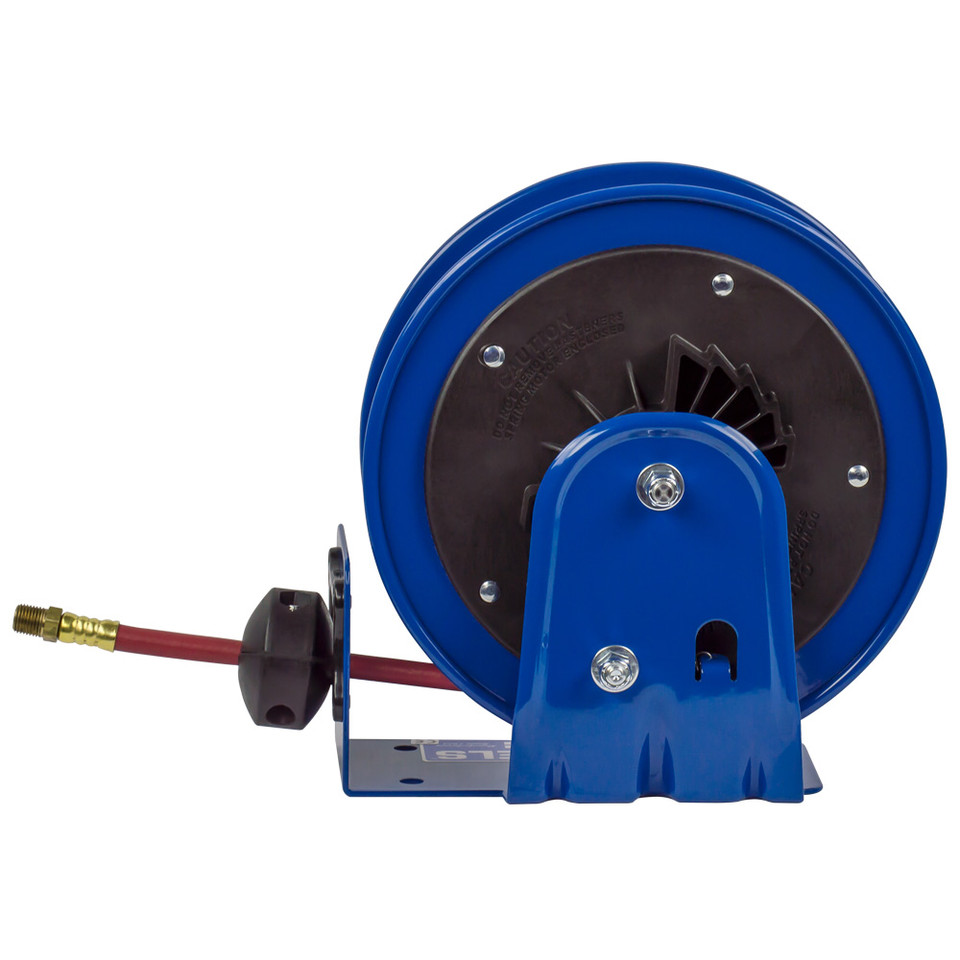

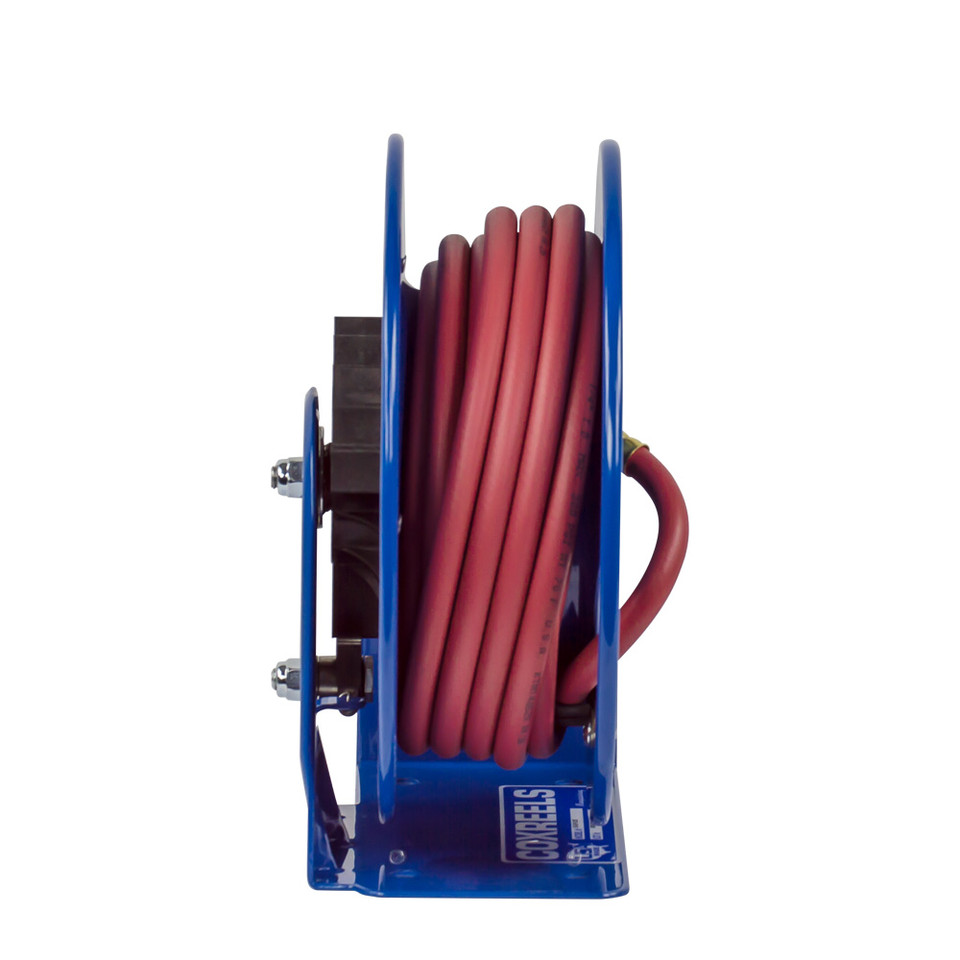

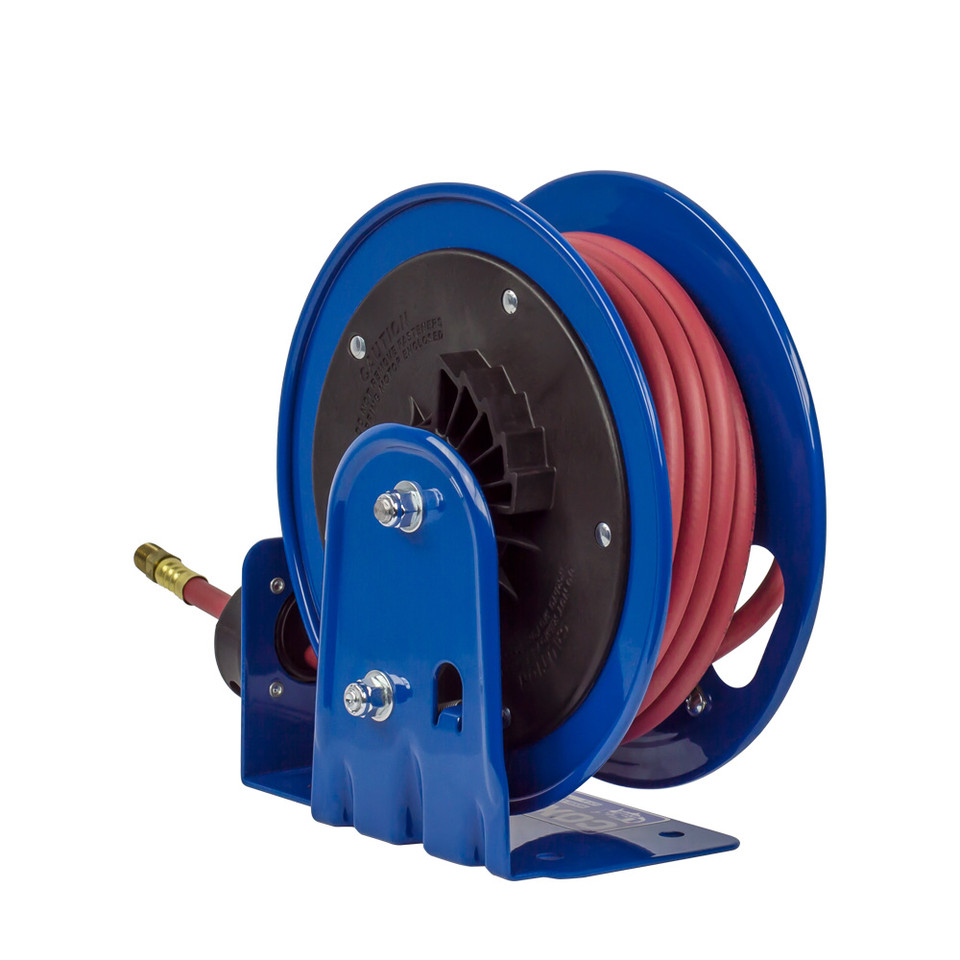

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Spring Rewind Hose Reel | Series: LG Series | Model: LG-LPL-125 | Configuration: Less Hose | Hose I.D.: 1/4 in. | Hose O.D.: 1/2 in. | Hose Capacity: 25 ft | Maximum Working Pressure: 300 PSI | Service: Air, Water, Oil

Features:

• Compact and lightweight spring-driven configuration saves mounting space and supports workplace organization.
• External fluid path incorporates a machined solid-brass 90-degree full-flow NPT swivel.
• NITRILE seals are used in the swivel assembly.
• CoxComposite grommet has a continuous-radius design that helps prevent the hose from pinching or catching during operation.
• One-piece 12-gauge steel base and support post provide stability.
• 1/2 in. solid-steel axle and lubricated precision bearings support smooth rotation.
• Enclosed, factory-tuned and matched cartridge-style spring motor provides automatic hose retrieval.
• Non-corrosive CoxComposite ratchet hub with self-lubricating bronze bearings secures the hose at the desired length.
• Designed for lightweight PVC hose and tubing.
• Rolled edges, ribbed discs, and the proprietary CPC powder coat process contribute strength, safety, and finish protection.

Made in USA:

2 Year Warranty

Applications:

• Pneumatic tool hose management.
• Lightweight tubing applications.
• Washdown operations.
• General commercial and industrial use.
• Bench-mounted installations.
• Machine shops and maintenance, repair, and operations work areas.
• Service, mechanic, and utility vehicles.

FAQs:

• Q: Does the Coxreels LG-LPL-125 include hose?
  A: No. This model is supplied less hose. A compatible hose or tubing assembly must be selected and installed separately.
• Q: What hose size and length will this reel hold?
  A: The reel accommodates up to 25 ft of 1/4 in. I.D. hose with a maximum 1/2 in. O.D. Coxreels states that the listed hose O.D. must not be exceeded to obtain the maximum capacity.
• Q: Which services can be used with this less-hose reel?
  A: Coxreels lists less-hose LG Series models for air, water, or oil service. The installed hose must also be compatible with the selected service.
• Q: How does the reel hold the hose at a working length?
  A: The CoxComposite ratchet hub secures the hose at the desired extension before the spring motor retracts it.
• Q: Is the LG-LPL-125 suitable for a confined mounting area?
  A: The reel measures 5-1/4 in. wide by 10-5/8 in. high by 10-1/2 in. long, and Coxreels describes the LG Series as compact enough to install where space is limited.
