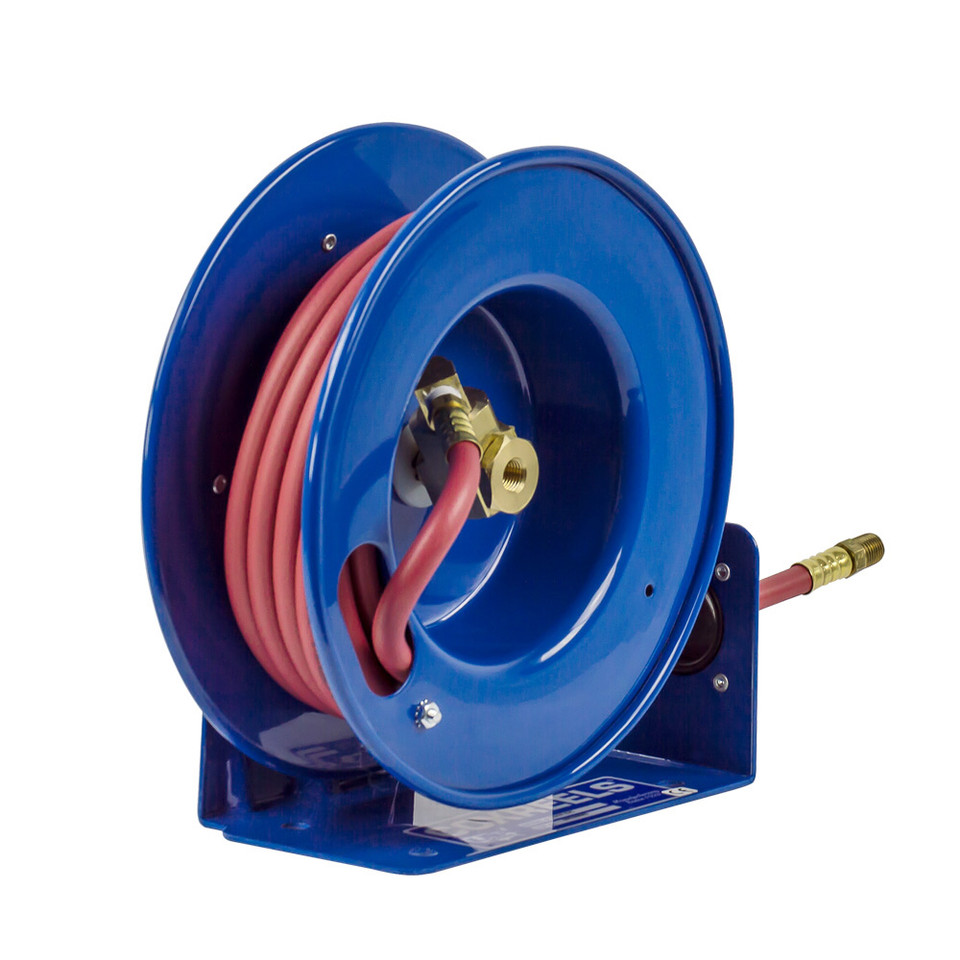

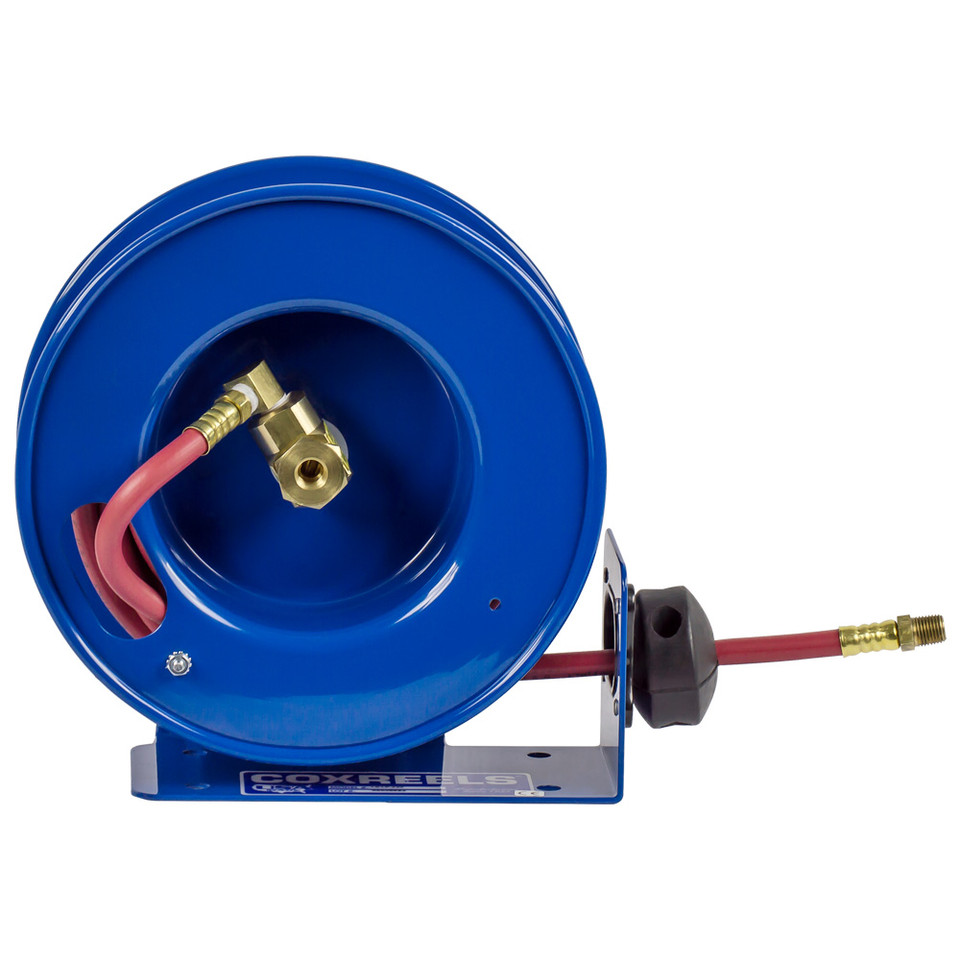

Coxreels LG-LP-310 Low Pressure Spring Rewind Hose Reel is a compact hose management solution designed for commercial and industrial applications where mounting space is limited. As part of the LG Series "Little Giant", this reel includes 10 ft of 3/8 in. I.D. hose and is rated for a 300 PSI maximum working pressure. Its enclosed, factory-tuned cartridge-style spring motor automatically retracts the hose after use, helping keep work areas clean and organized.
The LG-LP-310 features a machined solid-brass 90° full-flow NPT swivel fitted with NITRILE seals to provide unrestricted flow. A continuous-radius CoxComposite hose guide helps prevent the hose from pinching or catching during operation, while the non-corrosive CoxComposite ratchet hub securely locks the hose at the desired working length. The one-piece CNC robotically welded 12-gauge steel base and support post provide structural stability, and the CPC powder coat finish helps resist corrosion and wear.
Type: Spring Rewind Hose Reel | Series: LG Series | Model: LG-LP-310 | Hose Included: Yes | Hose I.D.: 3/8 in. | Hose O.D.: 5/8 in. | Hose Length: 10 ft | Maximum Working Pressure: 300 PSI | Service: Air, Water, Oil
Features:
- Compact, lightweight reel design for installations where mounting space is limited.
- Supplied with 10 ft of 3/8 in. I.D. hose.
- Enclosed, factory-tuned cartridge-style spring motor provides automatic hose rewind.
- Machined solid-brass 90° full-flow NPT swivel supports unrestricted flow.
- NITRILE seals are used in the swivel assembly.
- CoxComposite hose guide features a continuous-radius opening that helps prevent hose pinching or catching.
- High-strength CoxComposite ratchet hub securely locks the hose at the desired working length.
- One-piece CNC robotically welded 12-gauge steel base and support post provide structural strength.
- 1/2 in. solid steel axle and permanently lubricated precision bearings promote smooth reel rotation.
- Chip-resistant CPC powder coat finish helps resist corrosion and extends reel service life.
Made in USA:
Applications:
- Compressed air hose management.
- Water service applications.
- Oil transfer systems using compatible hose.
- Maintenance and repair facilities.
- Automotive service bays.
- Machine shops and manufacturing workstations.
- Service trucks and mobile maintenance equipment.
FAQs:
- Q: Does the Coxreels LG-LP-310 include hose?
A: Yes. According to the manufacturer, this model is supplied with 10 ft of 3/8 in. I.D. hose. - Q: What services is this reel designed for?
A: Coxreels lists this model for air, water, and oil service when used within the published pressure rating. - Q: What is the maximum working pressure?
A: The LG-LP-310 is rated for a maximum working pressure of 300 PSI. - Q: How does the reel help protect the hose during operation?
A: The continuous-radius CoxComposite hose guide helps prevent the hose from pinching or catching during extension and retraction. - Q: How is the hose held at the desired working length?
A: The CoxComposite ratchet hub securely locks the hose until it is released for automatic spring rewind.
| HOSE | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
||||||||
| LG-LP-115 | 1/4" | 1/2" | 15 | 300 | 9 | LG-LPL-115 | 8 | 1 |
| LG-LP-125 | 1/4" | 1/2" | 25 | 300 | 11 | LG-LPL-125 | 8 | 1 |
| LG-LP-310 | 3/8" | 5/8" | 10 | 300 | 9 | LG-LPL-310 | 8 | 1 |
| LG-LP-320 | 3/8" | 5/8" | 20 | 300 | 11 | LG-LPL-320 | 8 | 1 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
