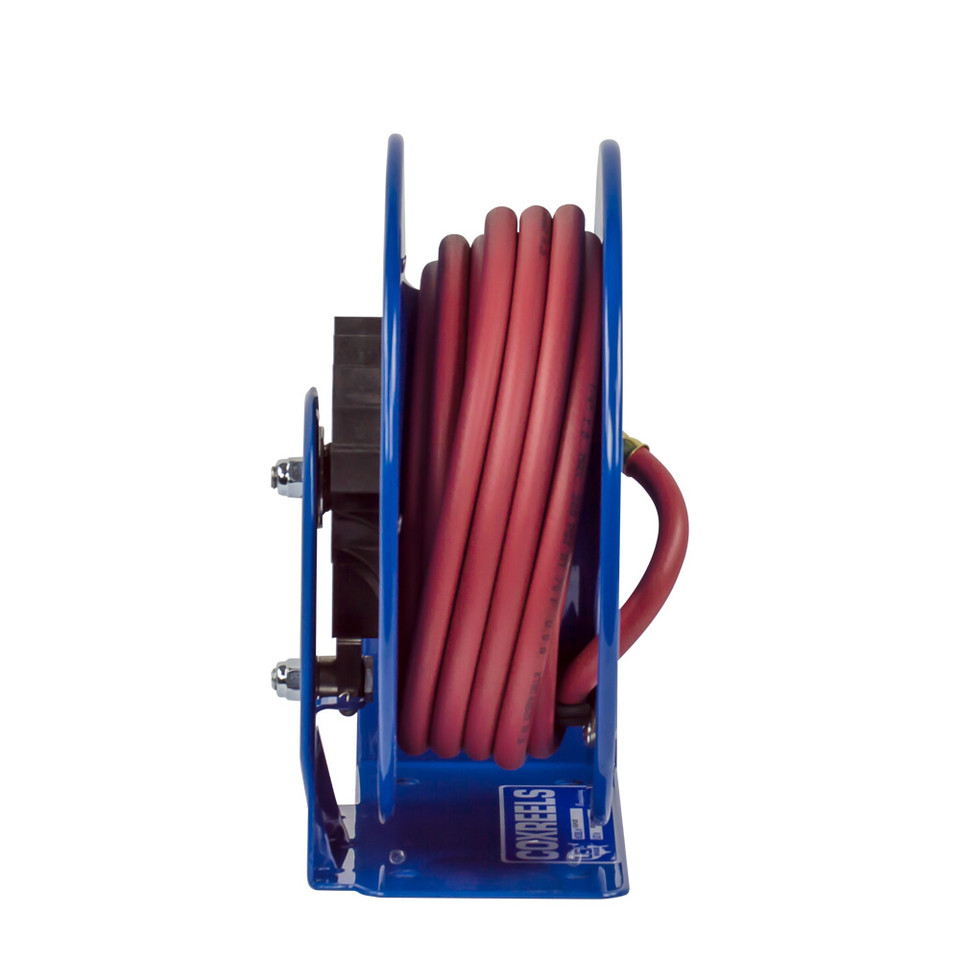

Coxreels LG-LP-320 Compact Efficient Spring Rewind Hose Reel | LG Series | 3/8" Hose Diameter | 20' Hose Length | 300 Max PSI

When mounting space is limited, the Coxreels LG-LP-320 Spring Rewind Hose Reel provides compact storage and automatic retrieval for 20 ft of 3/8 in. I.D. hose. Part of the LG Series 'Little Giant', this lightweight reel is built for commercial and industrial applications where available space or budget is restricted. Its enclosed, factory-tuned cartridge-style spring motor retracts the hose after use, helping maintain a more organized work area.

The LG-LP-320 is rated for a 300 PSI maximum working pressure and includes hose measuring 3/8 in. I.D. x 5/8 in. O.D. A machined solid-brass 90-degree full-flow NPT swivel supports the external fluid path, while the CoxComposite ratchet hub secures the hose at the desired working length. The continuous-radius CoxComposite grommet helps prevent the hose from pinching or catching during operation, and the one-piece 12-gauge steel base and support post provide stability within a compact footprint.

Type: Spring Rewind Hose Reel | Series: LG Series | Model: LG-LP-320 | Hose Included: Yes | Hose I.D.: 3/8 in. | Hose O.D.: 5/8 in. | Hose Length: 20 ft | Maximum Working Pressure: 300 PSI

Features:

• Compact and lightweight spring-driven configuration saves mounting space and supports workplace organization.
• Includes 20 ft of 3/8 in. I.D. hose with a 5/8 in. O.D.
• External fluid path uses a machined solid-brass 90-degree full-flow NPT swivel.
• NITRILE seals are used in the swivel assembly.
• Enclosed, factory-tuned and matched cartridge-style spring motor provides automatic hose retrieval.
• Non-corrosive, high-strength CoxComposite ratchet hub with self-lubricating bronze bearings secures the hose at the desired length.
• CoxComposite grommet uses a continuous-radius design that does not pinch or catch the hose during operation.
• Solid one-piece 12-gauge steel base and support post provide maximum stability.
• CNC-spun ribbed discs with rolled edges provide strength, durability, hose protection, and operator safety.
• Chip-resistant and rust-inhibiting CPC powder coat finish and permanently lubricated precision bearings support lasting reel operation.

Made in USA:

2 Year Warranty

Applications:

• Commercial hose-management installations where mounting space is limited.
• Industrial work areas requiring compact automatic hose retrieval.
• Bench, wall, equipment, or vehicle installations that accommodate the published mounting dimensions.
• Workplace organization applications operating within the included hose and reel pressure ratings.

FAQs:

• Q: Does the Coxreels LG-LP-320 include hose?
  A: Yes. Coxreels lists this model with 20 ft of hose measuring 3/8 in. I.D. and 5/8 in. O.D.
• Q: What is the maximum working pressure?
  A: The manufacturer rates the LG-LP-320 for a maximum working pressure of 300 PSI.
• Q: How does the reel hold the hose at the desired working length?
  A: The CoxComposite ratchet hub secures the hose at the selected extension before the spring motor retracts it.
• Q: How does the reel help prevent the hose from catching?
  A: Its CoxComposite grommet uses a continuous-radius design that does not pinch or catch the hose during operation.
• Q: How much mounting space does the LG-LP-320 require?
  A: The reel measures 5.25 in. wide by 10.63 in. high by 10.5 in. long and uses a 2.5 in. by 6 in. mounting pattern.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
