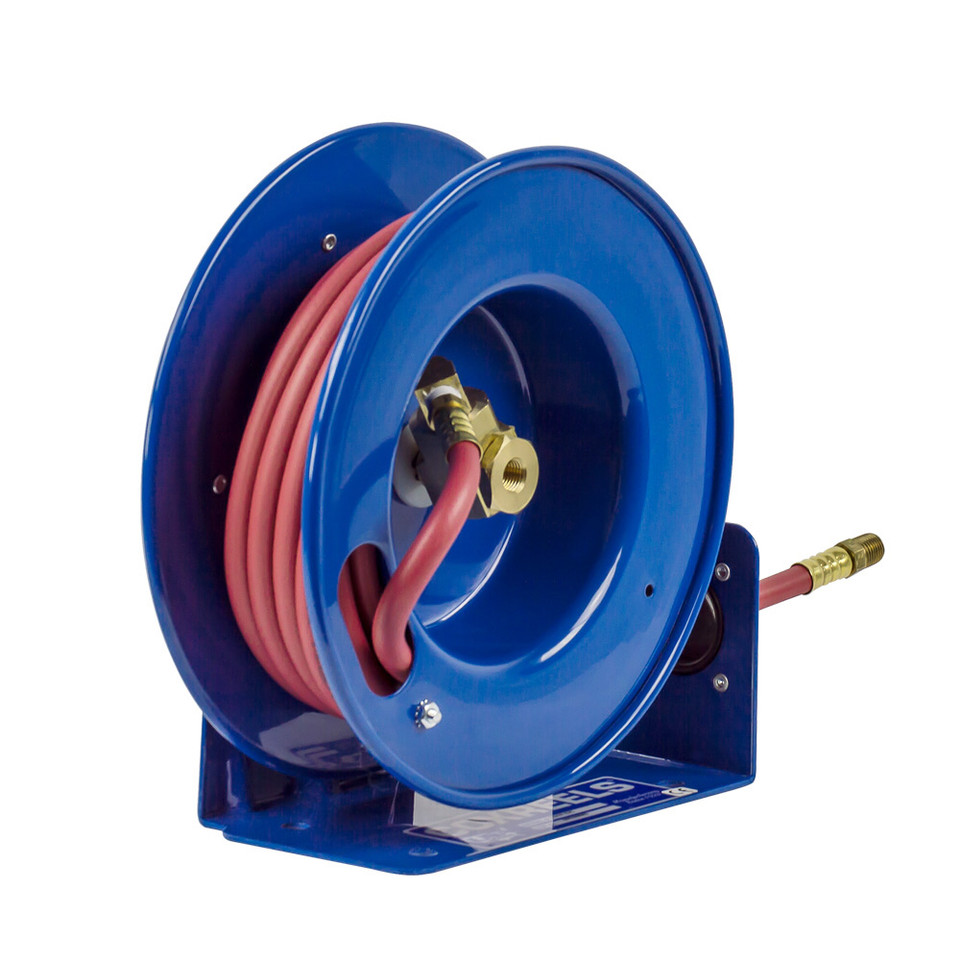

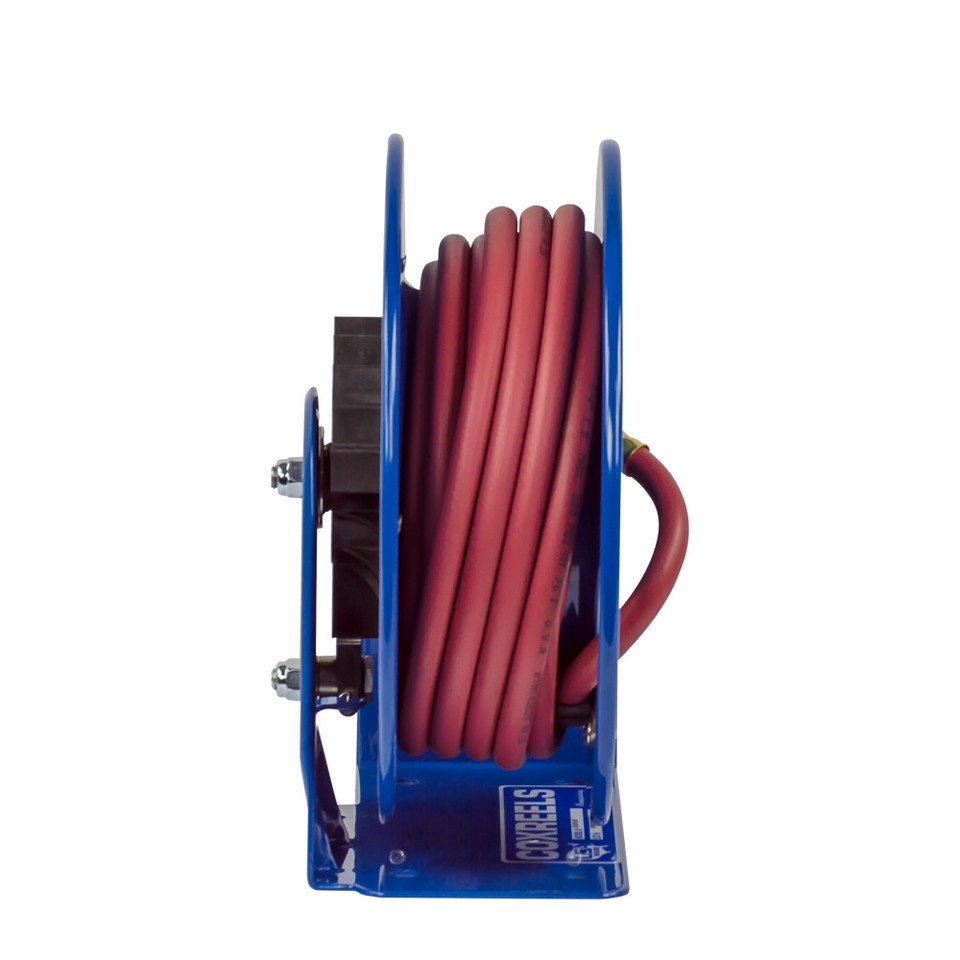

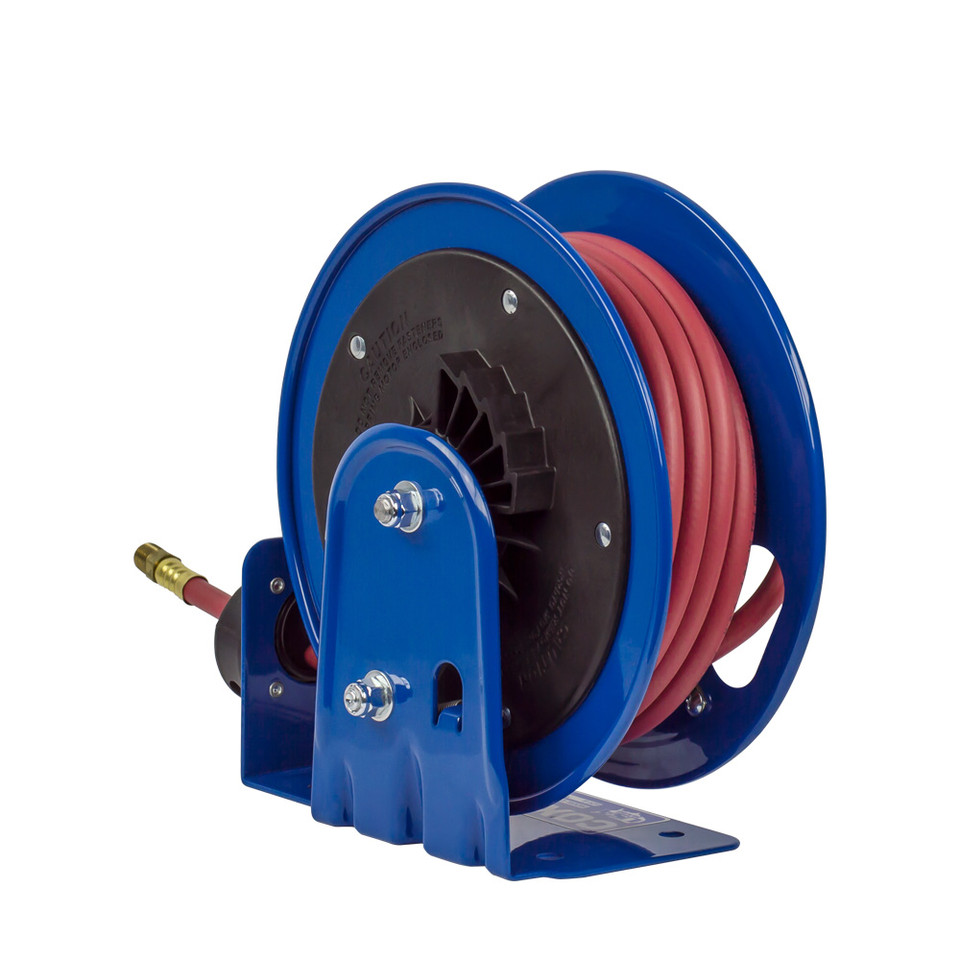

When workspace is limited, the Coxreels LG-LP-125 Spring Rewind Hose Reel provides compact hose storage without requiring the mounting space of a larger reel. Part of the LG Series 'Little Giant', this model includes 25 ft of 1/4 in. I.D. hose and is rated for a 300 PSI maximum working pressure. Its enclosed, factory-tuned cartridge-style spring motor automatically retrieves the hose, helping keep commercial and industrial work areas organized between uses.
The LG-LP-125 uses a machined solid-brass 90-degree full-flow NPT swivel with NITRILE seals. A CoxComposite grommet incorporates a continuous-radius design that helps prevent the hose from pinching or catching during operation, while the CoxComposite ratchet hub secures the hose at the desired working length. The solid one-piece 12-gauge steel base and support post provide stability in a lightweight reel measuring only 5.25 in. wide.
Type: Spring Rewind Hose Reel | Series: LG Series | Model: LG-LP-125 | Hose Included: Yes | Hose I.D.: 1/4 in. | Hose O.D.: 1/2 in. | Hose Length: 25 ft | Maximum Working Pressure: 300 PSI
Features:
- Compact and lightweight spring-driven configuration saves mounting space and supports workplace organization.
- Includes 25 ft of 1/4 in. I.D. hose with a 1/2 in. O.D.
- Machined solid-brass 90-degree full-flow NPT swivel provides an external fluid path.
- NITRILE seals are used in the swivel assembly.
- Enclosed, factory-tuned and matched cartridge-style spring motor provides automatic hose retrieval.
- Non-corrosive, high-strength CoxComposite ratchet hub with self-lubricating bronze bearings secures the hose at the desired length.
- CoxComposite grommet uses a continuous-radius design that helps prevent the hose from pinching or catching during operation.
- Solid one-piece 12-gauge steel base and support post provide stability.
- CNC-spun ribbed discs with rolled edges add strength, hose protection, and operator safety.
- Chip-resistant and rust-inhibiting CPC powder coat finish and permanently lubricated precision bearings support lasting reel operation.
Made in USA:
Applications:
- Commercial hose-management installations where available mounting space is limited.
- Industrial work areas requiring compact, automatic hose retrieval.
- Bench, wall, or equipment-mounted installations that can accommodate the published mounting dimensions.
- Workplace organization applications operating within the included hose and reel pressure ratings.
FAQs:
- Q: Does the Coxreels LG-LP-125 include hose?
A: Yes. Coxreels lists this model with 25 ft of 1/4 in. I.D. hose with a 1/2 in. O.D. - Q: What is the maximum working pressure?
A: The manufacturer rates the LG-LP-125 for a maximum working pressure of 300 PSI. - Q: How does the reel hold the hose at the desired length?
A: The CoxComposite ratchet hub secures the hose at the selected working length before the spring motor retracts it. - Q: How does the reel help prevent the hose from catching?
A: Its CoxComposite grommet uses a continuous-radius design that helps prevent pinching or catching during operation. - Q: How much mounting space does the reel require?
A: The reel measures 5.25 in. wide by 10.63 in. high by 10.5 in. long and uses a 2.5 in. by 6 in. mounting pattern.
| HOSE | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
||||||||
| LG-LP-115 | 1/4" | 1/2" | 15 | 300 | 9 | LG-LPL-115 | 8 | 1 |
| LG-LP-125 | 1/4" | 1/2" | 25 | 300 | 11 | LG-LPL-125 | 8 | 1 |
| LG-LP-310 | 3/8" | 5/8" | 10 | 300 | 9 | LG-LPL-310 | 8 | 1 |
| LG-LP-320 | 3/8" | 5/8" | 20 | 300 | 11 | LG-LPL-320 | 8 | 1 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
