Coxreels LG-LPL-310 Compact Low Pressure Spring Rewind Hose Reel | LG Series | 3/8" Hose Diameter | 10' Hose Length | 300 Max PSI | Less Hose

Built for compact hose storage in tight work areas, the Coxreels LG-LPL-310 gives commercial shops, service vehicles, machine areas, and maintenance benches a small-footprint spring rewind reel without factory-installed hose. This LG Series “Little Giant” model is sized for 3/8" I.D. hose with a 10 ft hose capacity and a 300 PSI maximum pressure rating, making it a practical choice where short hose runs are needed for air, water, or oil service and floor space is limited.

The LG-LPL-310 uses a compact spring driven design, meaning the reel retracts hose by spring tension instead of a hand crank or motor. Its 12GA steel base and support post provide a stable mounting platform, while the CoxComposite grommet uses a continuous-radius shape to help guide hose or tubing without pinching or catching during operation. Because this is the less-hose version, buyers can pair the reel with a compatible hose that meets their preferred material, fitting, and service requirements.

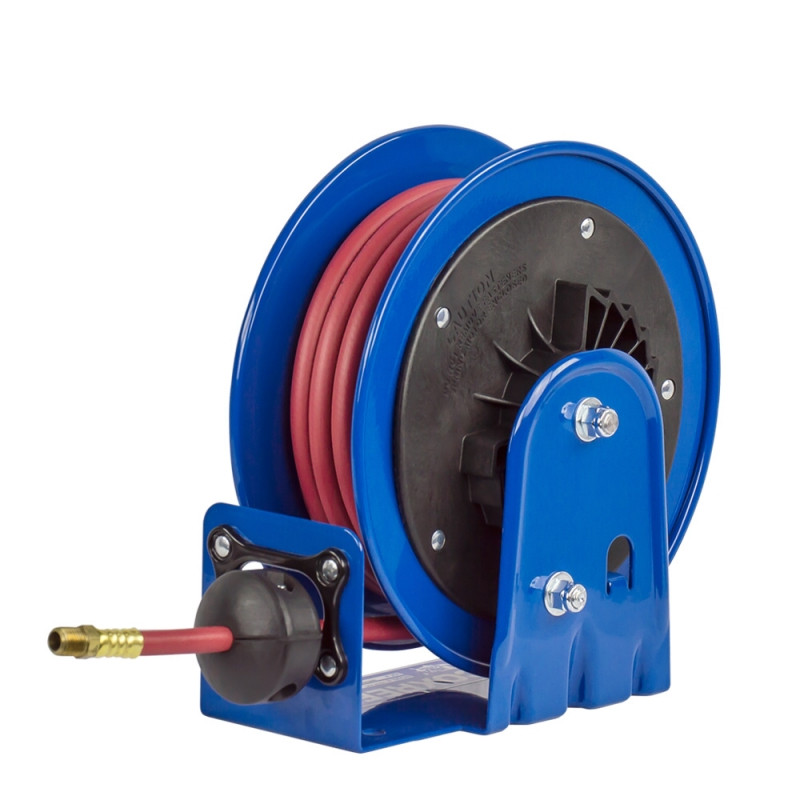

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Compact Low Pressure Spring Rewind Hose Reel | Series: LG Series | Model: LG-LPL-310 | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 10 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Hose Included: No | Approx. Weight: 8 lbs | Overall Dimensions: 5-1/4" W x 10-5/8" H x 10-1/2" L | Base: 4-11/16" X x 8-3/8" Y | Mounting Pattern: 2-1/2" M x 6" N

Features:

• Compact, lightweight spring driven hose reel saves space and helps keep short hose runs organized at the workstation.
• External fluid path with machined from solid brass 90° full-flow NPT swivel supports smooth flow through the reel connection.
• Nitrile swivel seals are used for low pressure service compatibility with air, water, or oil applications.
• CoxComposite grommet with continuous-radius design helps prevent hose pinching and provides a clean hose exit path.
• Solid one-piece 12GA steel base and support post provide mounting stability in bench, wall, or vehicle installations.
• 1/2" solid steel axle and lubricated precision bearings support smooth reel rotation during pull-out and rewind.
• Enclosed factory tuned and matched cartridge-style spring motor supports reliable spring rewind operation.
• Non-corrosive CoxComposite™ ratchet hub with self-lubricating bronze bearings secures the hose at the desired working length.

Made in USA:

2 Year Warranty

Applications:

• Machine shops — managing short air or fluid hose runs at compact workstations, tool benches, and small equipment areas.
• Maintenance, repair, and operations — keeping low pressure air, water, or oil hose accessible for routine service tasks.
• Service and utility vehicles — adding a compact reel where storage space is limited and hose control is still needed.
• Bench mount installations — placing a reel under a counter, on a bench, or near a dedicated workstation for short-reach use.
• General commercial and industrial facilities — organizing light hose or tubing applications in shops, garages, and plant support areas.

FAQs:

• Q: What does “less hose” mean for the LG-LPL-310?
  A: It means the reel is supplied without hose installed. This model is built to accept compatible 3/8" I.D. hose up to 10 ft long, but the hose must be purchased or supplied separately.
• Q: Can this reel be used for air, water, or oil?
  A: Yes. Coxreels lists less-hose LG Series low pressure models for air, water, or oil service. Confirm hose material, fittings, temperature, and system pressure before installation.
• Q: Why choose the LG Series instead of a larger hose reel?
  A: The LG Series is built for installations where space or budget is limited. It is a compact reel for short hose lengths, making it useful at benches, small work cells, and mobile service setups where a larger reel would take up unnecessary space.
• Q: What hose outside diameter should be used?
  A: Coxreels lists this model for 3/8" I.D. hose with a 5/8" O.D. Do not exceed the listed hose outside diameter if you need to obtain the maximum 10 ft hose capacity.
• Q: Does the LG-LPL-310 include fittings or hose stops?
  A: The available source data confirms the reel is supplied less hose, but it does not clearly confirm included hose stops or accessory fittings for this SKU. Review the manufacturer parts list or order details before publishing a final included-items claim.
