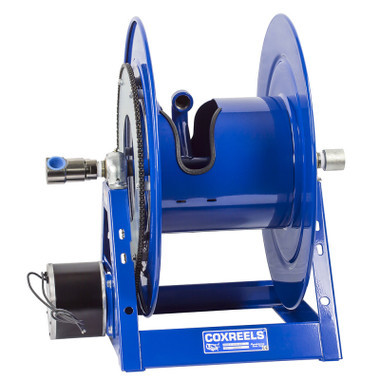

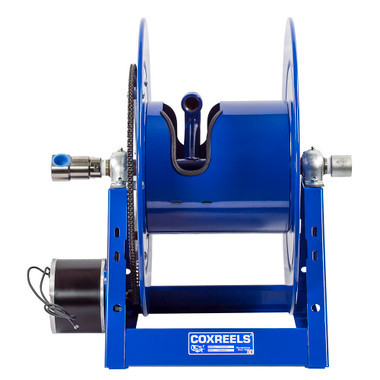

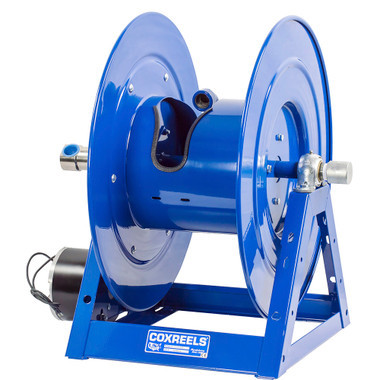

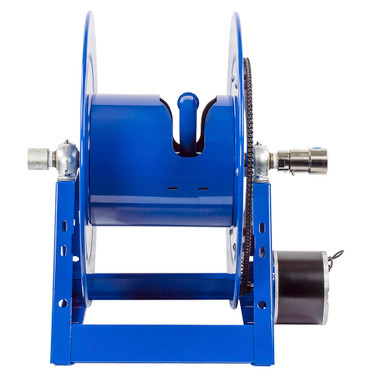

When large-diameter hose must be recovered in a location requiring a specialized DC motor configuration, the Coxreels 1175-6-100-ED motor rewind hose reel uses an explosion-proof 12V DC, 1/2 HP reversible motor to retrieve up to 100 feet of 1-inch I.D. hose. Its 3,000 PSI maximum pressure rating supports compatible medium-pressure fluid systems, while powered rewind reduces the manual effort required to recover a long or fluid-filled hose.

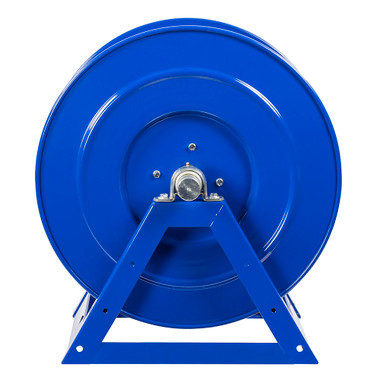

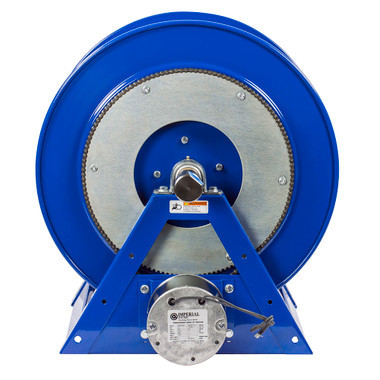

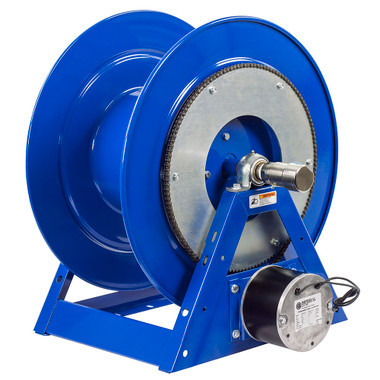

The 1175 Series uses a large-capacity chassis with a one-piece, all-welded steel A-frame for stationary or vehicle-mounted installations. A chain-and-sprocket drive transfers motor output to the reel drum, while the low-profile outlet riser and open drum slot promote flat, even hose wraps. Permanently lubricated, self-aligning pillow block bearings support smooth rotation, and an adjustable tension brake helps control drum free-wheeling while hose is being dispensed.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric DC Motor Rewind Hose Reel | Series: 1175 Series | Model: 1175-6-100-ED | Configuration: Less Hose | Motor: Explosion-Proof 12V DC, 1/2 HP, Reversible | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 100 ft | Maximum Pressure: 3,000 PSI
Features:
- Explosion-proof 12V DC, 1/2 HP reversible motor provides powered hose retrieval from a compatible DC electrical supply.
- Reliable chain-and-sprocket drive transfers motor output to the reel drum.
- Nickel-plated steel 90-degree full-flow NPT swivel inlet supports straightforward seal maintenance and hose installation.
- AFLAS swivel seals support compatible medium-pressure fluid-transfer applications.
- One-piece, all-welded steel A-frame construction provides a stable reel structure for fixed or mobile mounting.
- Low-profile outlet riser and open drum slot promote a flat, smooth hose wrap with reduced crimping.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation.
- Adjustable tension brake helps prevent uncontrolled free-wheeling while hose is being dispensed.
Made in USA:
Applications:
- Water trucks and mobile tanks requiring powered retrieval of compatible 1-inch fluid-delivery hose.
- Construction and utility fleets managing hose for water delivery, dust control, equipment cleaning, or site service.
- Agricultural operations supplying water or other compatible fluids to fields, livestock areas, and remote equipment.
- Industrial lubrication and fluid-transfer stations handling long, large-diameter hose runs.
- Fire-suppression installations storing compatible hose within the reels' pressure and capacity ratings.
- Hazardous-location installations only when the complete reel, controls, wiring, and site classification are reviewed by qualified personnel.
FAQs:
- Q: Does the Coxreels 1175-6-100-ED include hose?
A: No. This model is supplied less hose. Select compatible 1-inch I.D. hose with a maximum outside diameter of 1-7/16 inches and pressure, temperature, and material ratings appropriate for the application. - Q: What electrical supply does the ED motor require?
A: The ED option uses 12V DC power and is rated at 1/2 HP. Wiring, switching, circuit protection, and controls must be selected and installed according to the motor documentation and applicable electrical codes. - Q: What does explosion-proof mean for this reel?
A: The ED suffix identifies an explosion-proof motor configuration. It does not automatically certify the complete installation for every hazardous location; the motor, control equipment, wiring method, enclosure ratings, and area classification must all be verified. - Q: Is the completed hose assembly automatically rated to 3,000 PSI?
A: No. The reel carries a maximum pressure rating of 3,000 PSI, but hose and application fittings are supplied separately. Operate the system within the lowest pressure rating of the reel, hose, fittings, nozzle, and connected equipment. - Q: How does the ED model differ from the 1175-6-100-E?
A: The ED model uses an explosion-proof 12V DC, 1/2 HP motor. The E model uses a standard reversible 12V DC, 1/3 HP motor, so the two versions differ in motor construction and horsepower.
| SKU | LESS HOSE | SIZE INDEX |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL ASSEMBLY |
OUTLET RISER |
PSI | APRX. LBS. |
||||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
| 1175-6-100 | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT 90° | 1" F NPT | 3,000 | 70 | 2 |
| 1175-6-100-A | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT 90° | 1" F NPT | 3,000 | 70 | 2 |
| 1175-6-100-AB | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT 90° | 1" F NPT | 3,000 | 70 | 2 |
| 1175-6-100-C | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT 90° | 1" F NPT | 3,000 | 70 | 2 |
| 1175-6-100-E | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT 90° | 1" F NPT | 3,000 | 70 | 2 |
| 1175-6-100-EA | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT 90° | 1" F NPT | 3,000 | 70 | 2 |
| 1175-6-100-EB | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT 90° | 1" F NPT | 3,000 | 70 | 2 |
| 1175-6-100-ED | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT 90° | 1" F NPT | 3,000 | 70 | 2 |
| 1175-6-100-EF | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT 90° | 1" F NPT | 3,000 | 70 | 2 |
| 1175-6-100-EJ | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT 90° | 1" F NPT | 3,000 | 70 | 2 |
| 1175-6-100-H | 1" | 1 7/16" | 100 | 3/4" | 1 1/4" | 150 | 1" F NPT 90° | 1" F NPT | 3,000 | 70 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
