Coxreels 1175-6-100-EA Electric 115V AC Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 100' Hose Length | 3000 Max PSI | Less Hose

When long, large-diameter hose must be recovered without manual cranking, the Coxreels 1175-6-100-EA motor rewind hose reel uses a 115V AC, 1/2 HP explosion-proof reversible motor to retrieve up to 100 feet of 1-inch I.D. hose. Its 3,000 PSI maximum pressure rating supports compatible medium-pressure fluid systems, making the reel a practical foundation for fixed installations where AC power is available and controlled hose retrieval is required.

The 1175 Series features a large-capacity chassis with a one-piece, all-welded steel A-frame base. A chain-and-sprocket drive transfers motor power to the drum, while the low-profile outlet riser and open drum slot promote flat, even hose wraps without sharply crimping the line. Permanently lubricated, self-aligning pillow block bearings support smooth rotation, and an adjustable tension brake helps control drum free-wheeling as the hose is pulled from the reel.

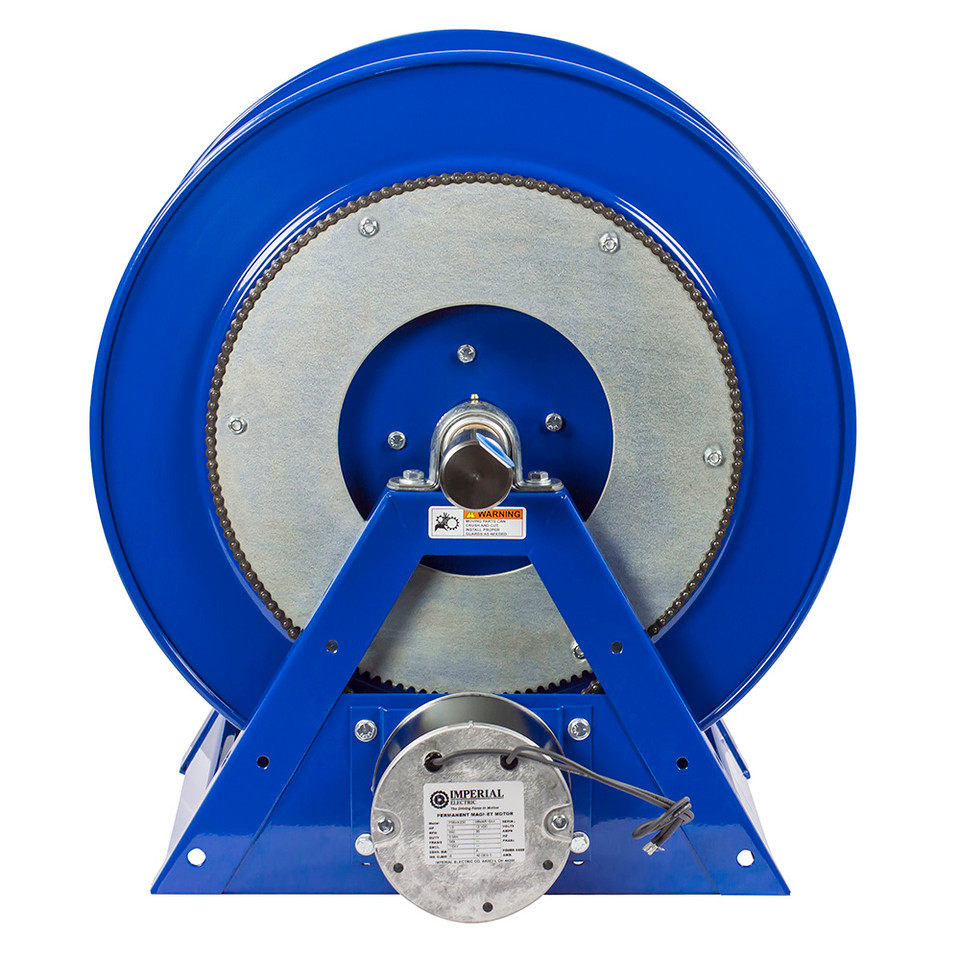

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric AC Motor Rewind Hose Reel | Series: 1175 Series | Model: 1175-6-100-EA | Configuration: Less Hose | Motor: 115V AC, 1/2 HP, Explosion-Proof Reversible AC Rectified | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 100 ft | Maximum Pressure: 3,000 PSI

Features:

• 115V AC, 1/2 HP explosion-proof reversible motor provides powered hose retrieval from a compatible stationary electrical supply.
• Reliable chain-and-sprocket drive transfers motor output to the reel drum.
• Nickel-plated steel 90-degree full-flow NPT swivel inlet allows straightforward seal maintenance and hose installation without removing the reel from its mount.
• AFLAS swivel seals support compatible medium-pressure fluid-transfer applications.
• One-piece, all CNC robotically welded 12-gauge steel A-frame base strengthens the reel structure and incorporates the mounting pattern.
• Low-profile outlet riser and open drum slot provide a non-crimping, flat hose wrap.
• Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation.
• Adjustable tension brake helps prevent uncontrolled free-wheeling while hose is being dispensed.

Made in USA:

2 Year Warranty

Applications:

• Industrial fluid-transfer stations requiring powered retrieval of long, large-diameter hose.
• Plant maintenance departments managing compatible oil, water, or lubrication lines from fixed reel locations.
• Equipment-cleaning systems using hose assemblies within the reels' pressure and material ratings.
• Agricultural and bulk-fluid operations that need 100 feet of 1-inch hose coverage.
• Fleet and utility facilities with access to a properly installed 115V AC electrical supply.
• Hazardous-location installations only when the complete reel system, controls, wiring, and site classification are reviewed and approved by qualified personnel.

FAQs:

• Q: Does the Coxreels 1175-6-100-EA include hose?
  A: No. This model is supplied less hose. Select compatible 1-inch I.D. hose with a maximum outside diameter of 1-7/16 inches and pressure, temperature, and material ratings appropriate for the application.
• Q: What electrical power does the rewind motor require?
  A: The EA motor option requires 115V AC power and has a 1/2 HP rating. Wiring, switching, overload protection, and other electrical components must be selected and installed according to the motor documentation and applicable electrical codes.
• Q: What does explosion-proof mean on this reel?
  A: The EA suffix identifies an explosion-proof reversible motor. It does not automatically approve the complete reel installation for every hazardous location; the motor, controls, wiring method, enclosure ratings, and site classification must all be verified before installation.
• Q: Is the completed hose system automatically rated to 3,000 PSI?
  A: No. The reel has a maximum pressure rating of 3,000 PSI, but the hose and application fittings are supplied separately. Operate the system within the lowest pressure rating of the reel, hose, fittings, nozzle, and connected equipment.
• Q: How does the EA model differ from the 1175-6-100-E?
  A: The EA model uses a 115V AC, 1/2 HP explosion-proof reversible motor. The E model uses a standard reversible 12V DC motor, making the two configurations suitable for different power sources and installation requirements.
