Coxreels 1175-6-100-A Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 100' Hose Length | 3000 Max PSI | Less Hose

When large-diameter hose must be retrieved across water trucks, construction sites, agricultural operations, or industrial fluid-transfer areas, the Coxreels 1175-6-100-A motor rewind hose reel provides powered retraction for up to 100 feet of 1-inch I.D. hose. Its 3,000 PSI maximum pressure rating supports compatible medium-pressure systems, while the motor-driven rewind reduces the manual effort required to recover a long, fluid-filled hose.

The 1175 Series uses a larger chassis to accommodate greater hose capacities and diameters. A one-piece, CNC robotically welded 12-gauge steel A-frame creates a stable mounting platform, while the low-profile outlet riser and open drum slot promote flat, even hose wraps without sharply crimping the line. The reliable chain-and-sprocket drive transfers motor power to the drum, and an adjustable tension brake helps prevent uncontrolled free-wheeling as hose is dispensed.

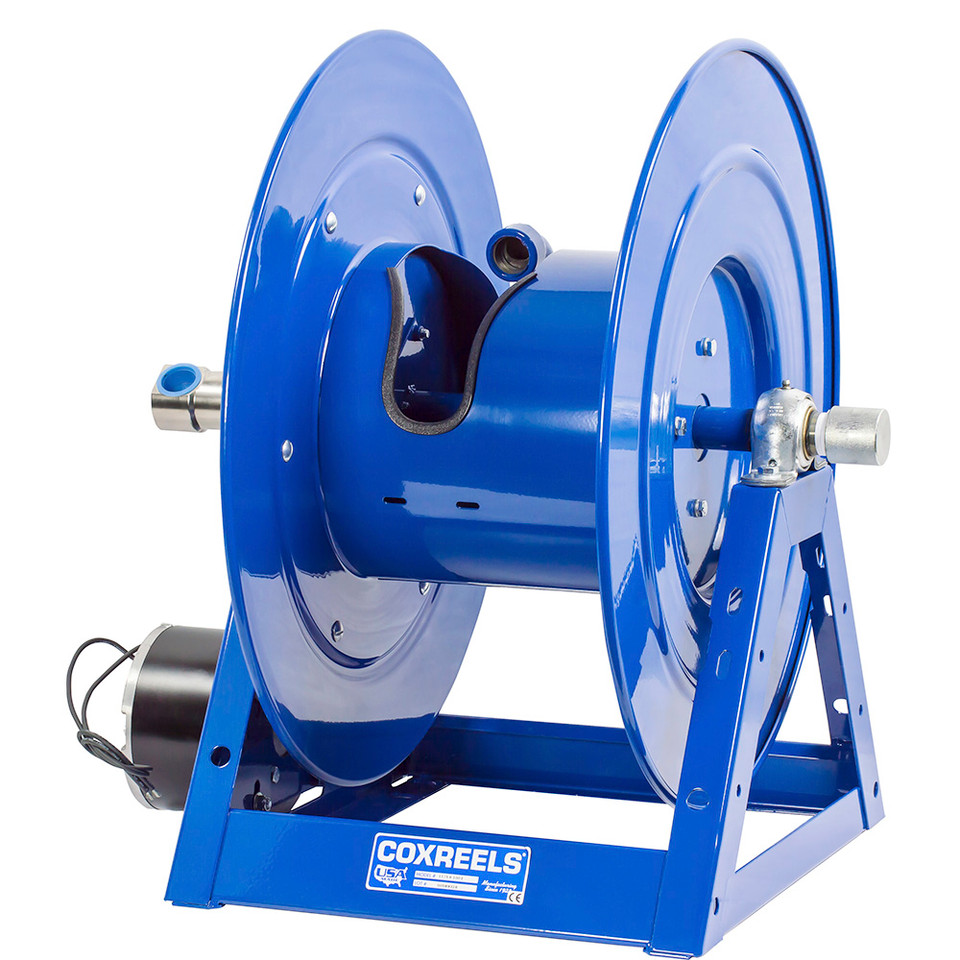

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Motor Rewind Hose Reel | Series: 1175 Series | Model: 1175-6-100-A | Configuration: Less Hose | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 100 ft | Maximum Pressure: 3,000 PSI

Features:

• Larger 1175 Series chassis accommodates high hose capacities and larger hose diameters.
• Motor-driven rewind reduces the manual effort required to retrieve 100 feet of 1-inch hose.
• Reliable chain-and-sprocket drive transfers power from the motor to the reel drum.
• Nickel-plated steel 90-degree full-flow NPT swivel inlet supports straightforward seal maintenance and hose installation without removing the reel from its mount.
• AFLAS swivel seals support compatible medium-pressure fluid-transfer applications.
• Low-profile outlet riser and open drum slot provide a flat, smooth hose wrap while limiting hose crimping.
• One-piece, CNC robotically welded 12-gauge steel A-frame strengthens the reel structure and provides an integrated mounting pattern.
• Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation, while the adjustable tension brake helps prevent free-wheeling during operation.

Made in USA:

2 Year Warranty

Applications:

• Water trucks and mobile tanks dispensing compatible fluids through long runs of 1-inch hose.
• Construction and utility fleets managing hose for water delivery, dust control, equipment cleaning, or site service.
• Agricultural operations supplying water, fertilizer, or other compatible fluids to fields, livestock areas, and remote equipment.
• Industrial lubrication and fluid-transfer stations requiring powered retrieval of large-diameter hose.
• Fire and safety installations storing compatible booster or water-delivery hose within the reels' pressure and capacity ratings.
• Plant and fleet maintenance operations where manual rewinding of a long, fluid-filled hose would be inefficient.

FAQs:

• Q: Does the Coxreels 1175-6-100-A include hose?
  A: No. This model is supplied less hose. Select compatible 1-inch I.D. hose with an outside diameter no greater than 1-7/16 inches and pressure, temperature, and material ratings suitable for the application.
• Q: How does this model differ from the 1175-6-100 hand crank reel?
  A: The 1175-6-100-A uses a motor-driven chain-and-sprocket system to rewind the hose. The standard 1175-6-100 requires the operator to retrieve the hose manually with a hand crank.
• Q: Is the complete hose assembly automatically rated to 3,000 PSI?
  A: No. The 3,000 PSI figure is the reel's maximum pressure rating, and no hose or application fittings are included. The completed system must operate within the lowest rating of the reel, hose, fittings, nozzle, and connected equipment.
• Q: What does the adjustable tension brake do?
  A: The brake adds resistance to the drum while the hose is being pulled out. This helps prevent the reel from continuing to spin and dispensing excess hose after the operator stops pulling.
• Q: Can the 1175-6-100-A be installed on a service truck?
  A: Yes, when mounted to an adequately reinforced vehicle structure with appropriately rated hardware. The installation must support the reel, motor, installed hose, fluid load, and forces encountered during travel and operation.
