Coxreels 1175-6-100 Hand Crank Hose Reel | 1175 Series | 1" Hose Diameter | 100' Hose Length | 3000 Max PSI | Less Hose

When large-diameter hose must cover water trucks, construction sites, farms, or fluid-transfer areas, the Coxreels 1175-6-100 hand crank hose reel provides storage for up to 100 feet of 1-inch I.D. hose. Its 3,000 PSI maximum pressure rating supports compatible high-pressure fluid systems, while the larger 1175 Series chassis accommodates the hose diameter and drum load required for high-flow delivery applications.

The 1175 Series uses an all-welded steel A-frame base for stable stationary or vehicle-mounted installation. A low-profile outlet riser and open drum slot guide the hose into flat, even wraps, reducing bunching as the operator turns the solid steel hand crank. Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation, while an adjustable tension brake controls free-wheeling during operation and a long-handled locking pin secures the reel during transport or storage.

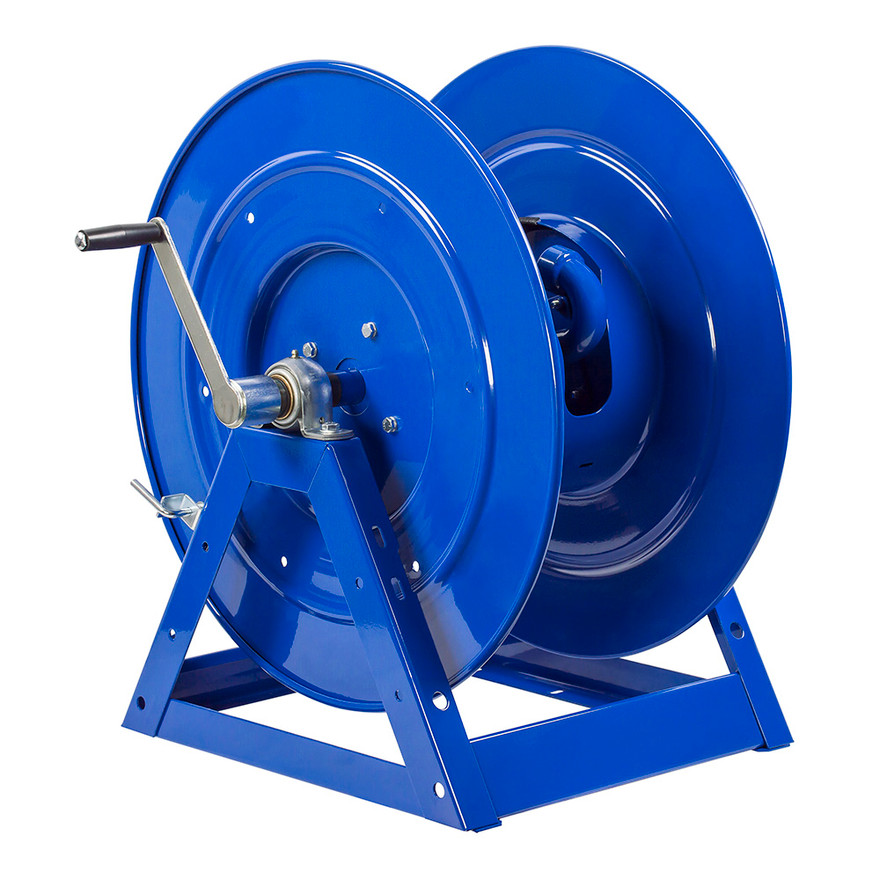

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hand Crank Hose Reel | Series: 1175 Series | Model: 1175-6-100 | Configuration: Less Hose | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 100 ft | Maximum Pressure: 3,000 PSI

Features:

• Large-chassis 1175 Series construction accommodates higher hose capacities and larger hose diameters.
• External fluid path incorporates a nickel-plated steel 90-degree full-flow NPT swivel inlet.
• AFLAS swivel seals support compatible high-pressure fluid-transfer applications.
• One-piece, all-welded steel A-frame base provides a stable reel structure for fixed or mobile mounting.
• Low-profile outlet riser and open drum slot promote flat, even hose wraps across the drum.
• Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation.
• Adjustable tension brake helps prevent uncontrolled free-wheeling as hose is dispensed.
• Solid steel direct hand crank uses a smooth round handle, while the long-handled locking pin secures the drum during transport or storage.

Made in USA:

2 Year Warranty

Applications:

• Water trucks and mobile tanks dispensing larger volumes of water through compatible 1-inch hose.
• Construction sites managing long hose runs for water delivery, dust control, cleanup, or equipment service.
• Fire-suppression systems requiring organized storage for compatible high-flow hose.
• Farming and high-flow watering operations supplying fields, livestock areas, or remote equipment.
• Industrial lubrication stations dispensing compatible oils or lubricants through large-diameter hose.
• Chemical fluid-transfer installations where the hose, AFLAS seals, fittings, and reel materials are compatible with the specific media.

FAQs:

• Q: Does the Coxreels 1175-6-100 include hose?
  A: No. This reel is supplied less hose. The buyer must provide compatible 1-inch I.D. hose with an outside diameter no greater than 1-7/16 inches and ratings suitable for the intended fluid, pressure, and temperature.
• Q: Is this a spring rewind reel?
  A: No. The 1175-6-100 is manually rewound using its solid steel hand crank. The operator turns the crank to retrieve the hose and uses the locking pin to prevent drum rotation during transport or storage.
• Q: Is the complete hose system automatically rated to 3,000 PSI?
  A: No. The reel carries a maximum pressure rating of 3,000 PSI, but the hose and connecting hardware are supplied separately. Operate the system within the lowest pressure rating of the reel, hose, fittings, nozzle, and connected equipment.
• Q: What does the adjustable tension brake do?
  A: It adds resistance to the drum so the reel does not continue spinning freely while hose is being pulled out. The brake helps the operator maintain better control over hose payout.
• Q: Can the 1175-6-100 be installed on a truck?
  A: The all-welded A-frame structure is suitable for stationary or mobile mounting when installed on an adequately reinforced surface. Use mounting hardware appropriate for the reel, installed hose, fluid load, and forces encountered during transport and operation.
