Coxreels 1175-6-100-E Electric DC Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 100' Hose Length | 3000 Max PSI | Less Hose

For water trucks, construction sites, agricultural operations, and industrial fluid-transfer systems that need powered retrieval of large-diameter hose, the Coxreels 1175-6-100-E motor rewind hose reel stores up to 100 feet of 1-inch I.D. hose. Its 3,000 PSI maximum pressure rating supports compatible high-pressure service, while the 12V DC electric motor reduces the manual effort required to recover a long or fluid-filled hose.

The 1175 Series uses a larger chassis for increased hose capacity and diameter. A one-piece, all-welded steel A-frame provides a stable base for stationary or vehicle-mounted installations, while the low-profile outlet riser and open drum slot promote flat, even hose wraps. The reversible 1/3 HP motor transfers power through a chain-and-sprocket drive, and an adjustable tension brake helps control drum free-wheeling while hose is being dispensed.

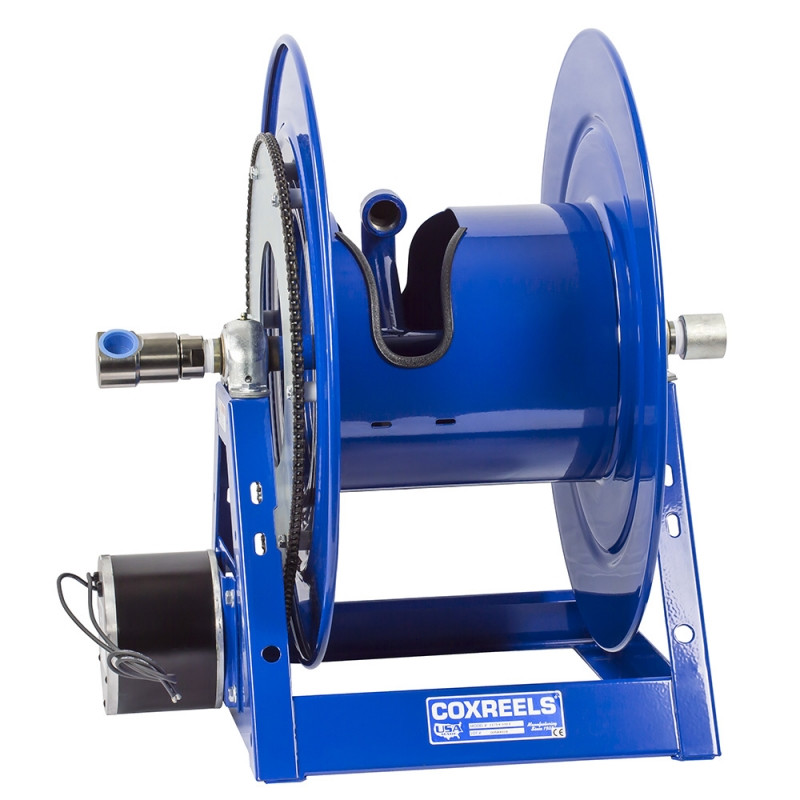

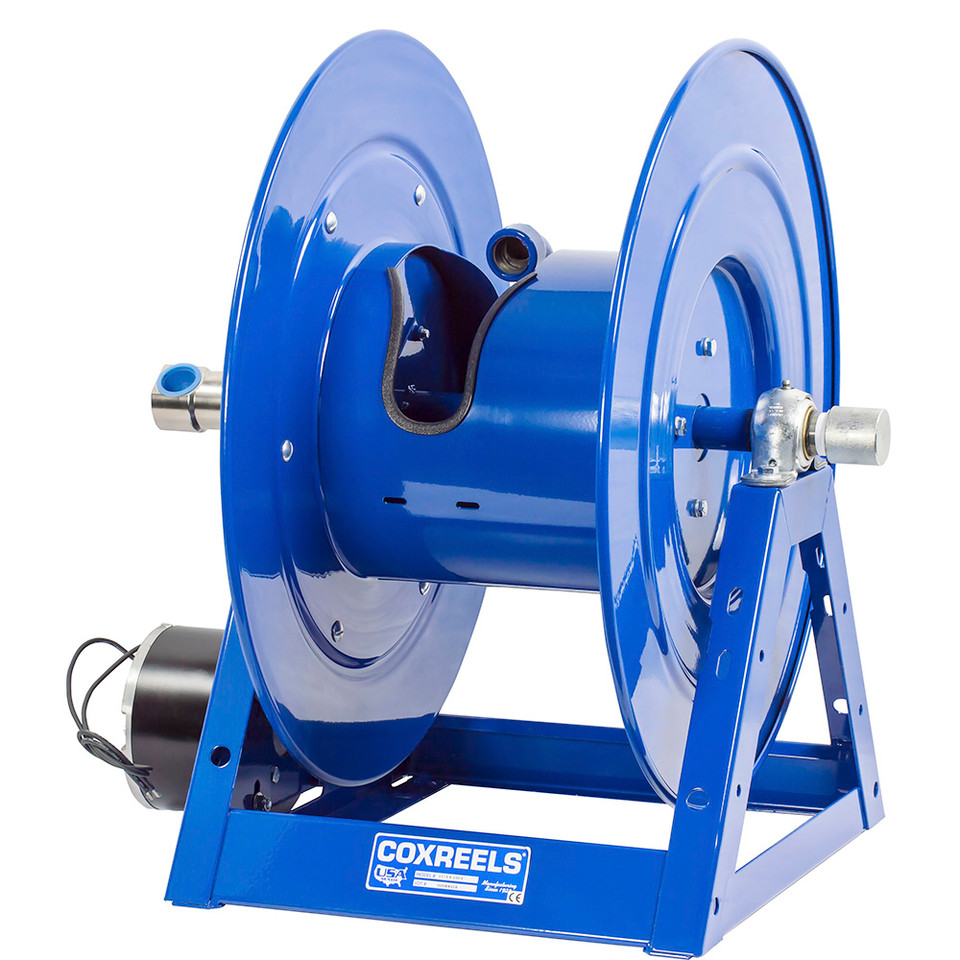

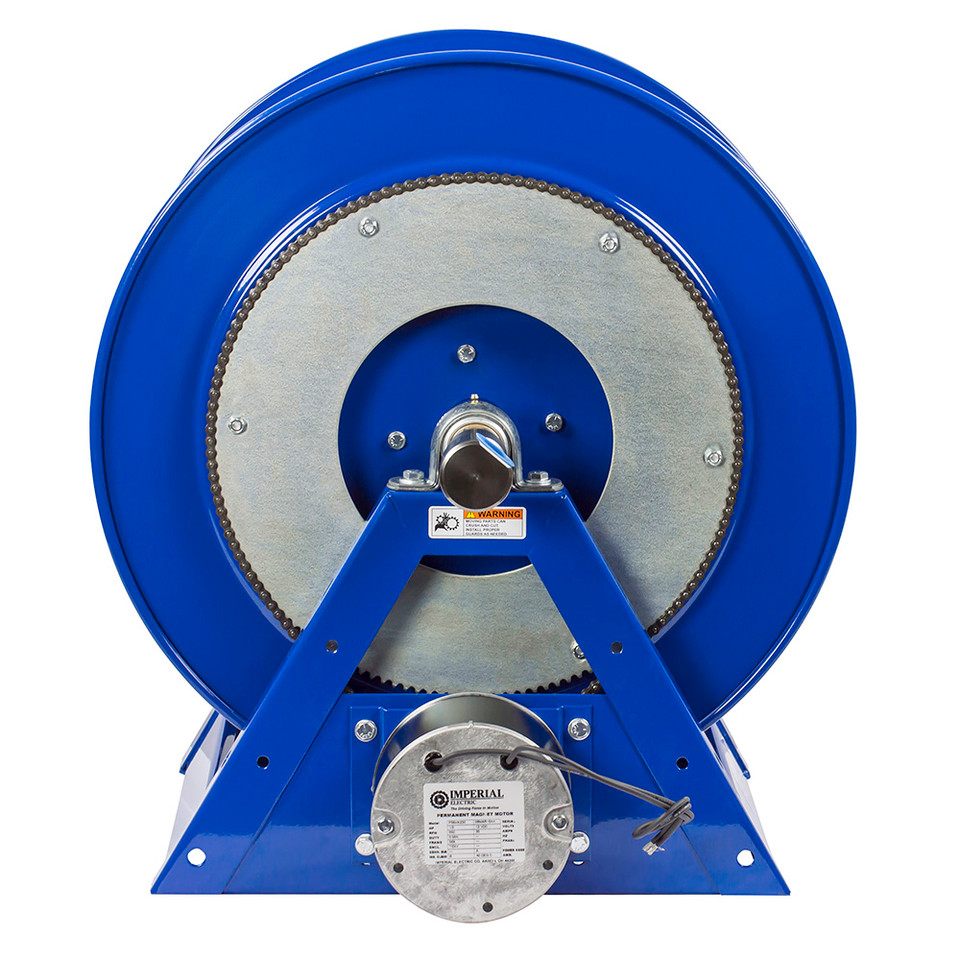

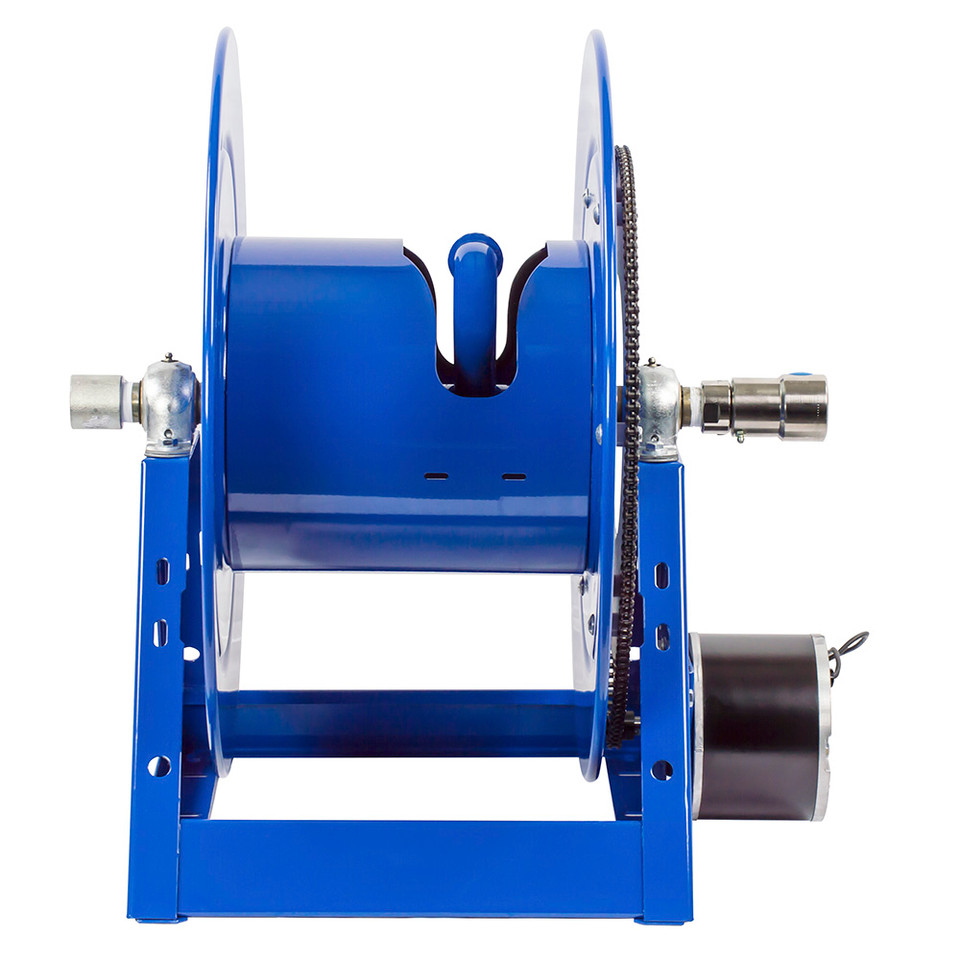

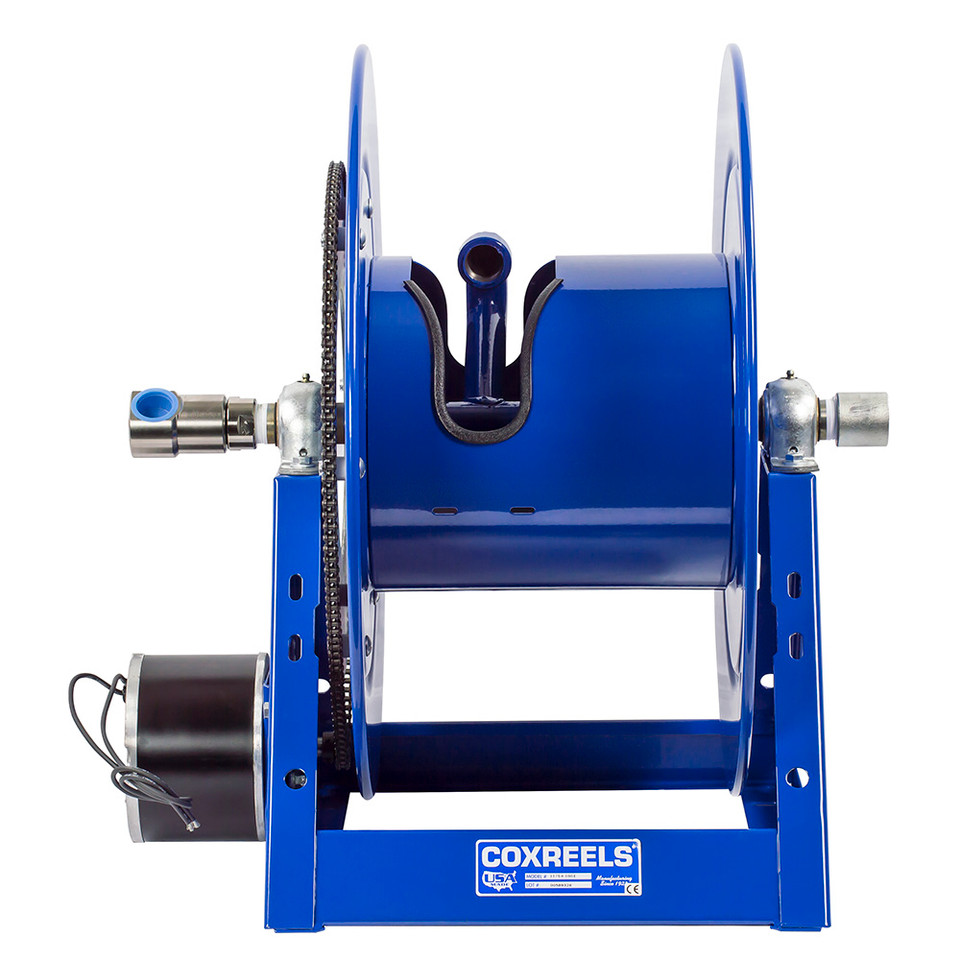

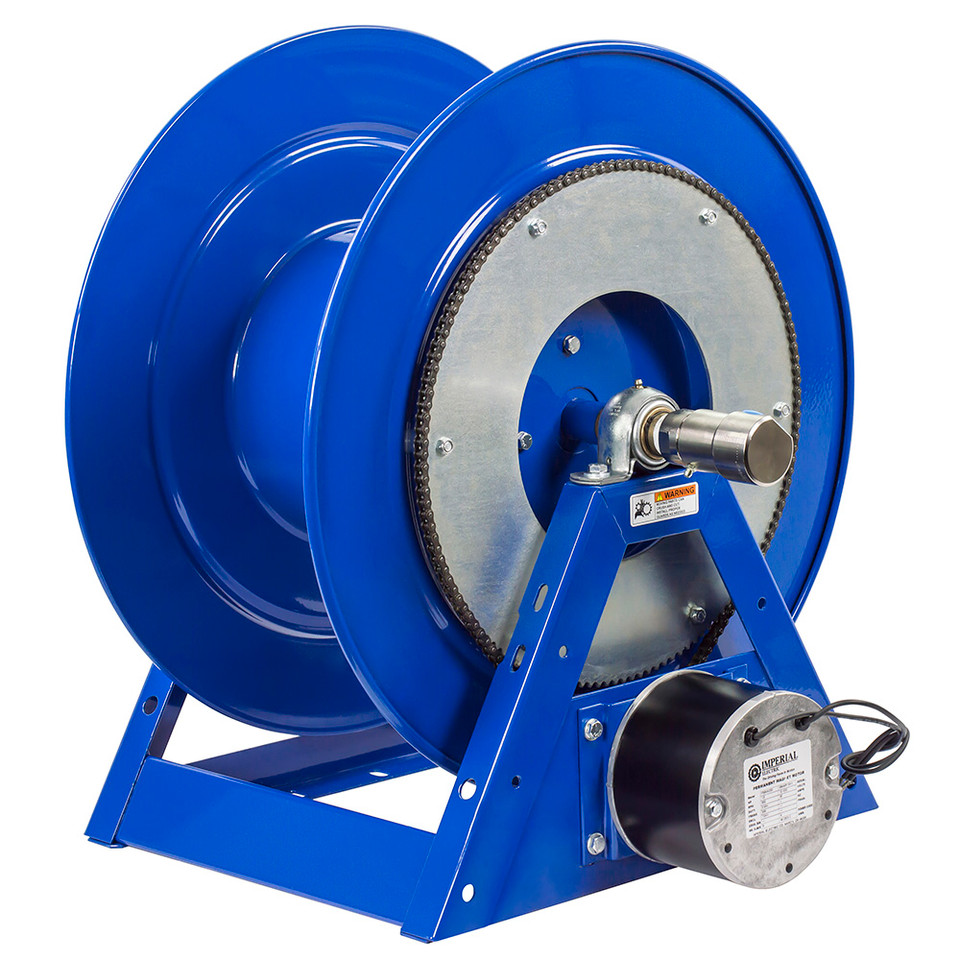

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric DC Motor Rewind Hose Reel | Series: 1175 Series | Model: 1175-6-100-E | Configuration: Less Hose | Motor: 12V DC, 1/3 HP, Reversible | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 100 ft | Maximum Pressure: 3,000 PSI

Features:

• 12V DC reversible electric motor with 1/3 HP output provides powered hose retrieval from compatible mobile electrical systems.
• Reliable chain-and-sprocket drive transfers motor power to the reel drum.
• External fluid path incorporates a nickel-plated steel 90-degree full-flow NPT swivel inlet.
• AFLAS swivel seals support compatible high-pressure fluid-transfer applications.
• One-piece, all-welded steel A-frame construction provides a stable reel structure for stationary or vehicle mounting.
• Low-profile outlet riser and open drum slot promote flat, smooth hose wraps across the drum.
• Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation.
• Adjustable tension brake helps prevent uncontrolled free-wheeling while hose is being dispensed.

Made in USA:

2 Year Warranty

Applications:

• Water trucks and mobile tanks using compatible 1-inch hose for water delivery, dust control, or site cleanup.
• Construction and utility fleets that need powered retrieval of long hose runs from vehicle-mounted equipment.
• Farming and high-flow watering operations supplying remote equipment, livestock areas, or field locations.
• Fire-suppression installations storing compatible hose within the reels' pressure and capacity ratings.
• Industrial lubrication stations dispensing compatible oils or lubricants through large-diameter hose.
• Chemical fluid-transfer systems where the hose, AFLAS seals, fittings, and reel materials are verified for the specific media.

FAQs:

• Q: Does the Coxreels 1175-6-100-E include hose?
  A: No. This model is supplied less hose. Select compatible 1-inch I.D. hose with a maximum outside diameter of 1-7/16 inches and ratings suited to the intended pressure, temperature, and fluid.
• Q: What electrical supply does the rewind motor require?
  A: The E motor option uses 12V DC power and is rated at 1/3 HP. The electrical circuit, wiring, controls, and protection devices must be sized and installed for the motor and application.
• Q: Is the 12V DC motor explosion-proof?
  A: No. The standard E option is a reversible 12V DC motor and is not identified as explosion-proof. Coxreels uses separate suffixes for explosion-proof motor configurations.
• Q: Is the complete hose system automatically rated to 3,000 PSI?
  A: No. The reel has a maximum pressure rating of 3,000 PSI, but hose and application fittings are not included. Operate the complete system within the lowest pressure rating of the reel, hose, fittings, nozzle, and connected equipment.
• Q: How does the electric model differ from the 1175-6-100 hand crank reel?
  A: The 1175-6-100-E uses a powered, reversible motor and chain-and-sprocket drive to retrieve the hose. The standard 1175-6-100 requires the operator to rewind the drum manually with a hand crank.
