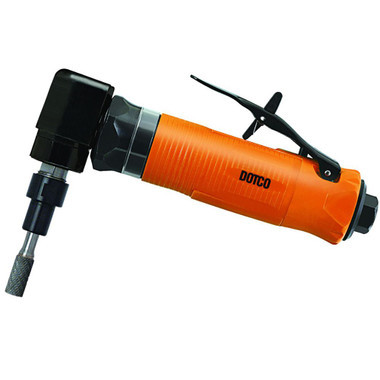

Dotco 10LF280-32 Precision Right Angle Die Grinder is designed for precision grinding, deburring, polishing, blending, and finishing applications where accuracy, maneuverability, and consistent performance are essential. Featuring the 10LF Series, a 0.4 HP pneumatic motor, a 12,000 RPM free speed, and a rear exhaust, this precision right angle die grinder delivers reliable performance for industrial maintenance, aerospace, metal fabrication, and general manufacturing environments.
The compact right angle configuration provides improved access to confined spaces, inside corners, and intricate workpieces, making it ideal for detailed finishing operations. Its rear exhaust directs discharged air away from the operator and work surface to promote a cleaner, more comfortable working environment while maintaining excellent control during extended use.
Type: Precision Right Angle Die Grinder | Series: 10LF Series | Model: 10LF280-32 | SKU: 10LF280-32 | Power: 0.4 HP | Free Speed: 12,000 RPM | Exhaust: Rear
Features:
- 0.4 HP pneumatic motor delivers dependable performance for precision grinding and finishing applications.
- 12,000 RPM free speed provides controlled material removal and consistent finishing results.
- Right angle configuration improves accessibility in confined and difficult-to-reach work areas.
- Rear exhaust directs discharged air away from the operator and work surface for improved comfort.
- Compact, ergonomic design promotes enhanced handling and precise tool control.
- Suitable for grinding, deburring, polishing, blending, and finishing applications.
- Designed for demanding industrial and MRO environments.
Made in USA:
Applications:
- Precision grinding.
- Deburring machined components.
- Metal finishing.
- Weld blending.
- Mold and die maintenance.
- Aerospace manufacturing.
- General industrial fabrication and repair.
FAQs:
- Q: What is the free speed of this die grinder?
A: This model operates at a free speed of 12,000 RPM. - Q: What is the motor output?
A: The pneumatic motor is rated at 0.4 HP. - Q: Why is a right angle configuration beneficial?
A: The right angle head provides improved access to corners, confined spaces, and intricate workpieces while offering better operator control. - Q: Why is a rear exhaust beneficial?
A: The rear exhaust directs discharged air away from the operator and work surface to improve comfort and help maintain a cleaner working area. - Q: What applications is this tool intended for?
A: It is intended for precision grinding, deburring, polishing, blending, and finishing in industrial environments.
| SKU | Collet Size | Exhaust | Free Speed | Abrasive Capacity Grinder | Abrasive Capacity Sander | Weight | Length | Head Height | Air Inlet Size |
|---|---|---|---|---|---|---|---|---|---|
| r/min | Lb | in | in | in | |||||
| 10LF200-36 | 1/4 in | Front | 12000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 3“ (75 mm) Sanding/Polishing Disc | 1.1 | 6.6 | 2.70 | 1/4 in |
| 10LF200-36M6 | 1/4 in | 6mm | Front | 12000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 3“ (75 mm) Sanding/Polishing Disc | 1.1 | 6.6 | 2.70 | 1/4 in |
| 10LF201-36 | 1/4 in | Front | 20000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 2“ (50 mm) Sanding/Polishing Disc | 1.1 | 6.6 | 2.70 | 1/4 in |
| 10LF201-36M6 | 1/4 in | 6mm | Front | 20000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 2“ (50 mm) Sanding/Polishing Disc | 1.1 | 6.6 | 2.70 | 1/4 in |
| 10LF280-36 | 1/4 in | Rear | 12000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 3“ (75 mm) Sanding/Polishing Disc | 1.1 | 6.6 | 2.70 | 1/4 in |
| 10LF280-36M6 | 1/4 in | 6mm | Rear | 12000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 3“ (75 mm) Sanding/Polishing Disc | 1.1 | 6.6 | 2.70 | 1/4 in |
| 10LF281-36 | 1/4 in | Rear | 20000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 2“ (50 mm) Sanding/Polishing Disc | 1.1 | 6.6 | 2.70 | 1/4 in |
| 10LF281-36OH | 1/4 in | Rear | 20000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 2“ (50 mm) Sanding/Polishing Disc | 1.1 | 6.6 | 2.70 | 1/4 in |
| 10LF201-32 | 1/4 in-28i | Front | 20000 | 2“ (50 mm) Sanding/Polishing Disc | 2“ (50 mm) Sanding/Polishing Disc | 1.1 | 6.6 | 2.90 | 1/4 in |
| 10LF281-32 | 1/4 in-28i | Rear | 20000 | 2“ (50 mm) Sanding/Polishing Disc | 2“ (50 mm) Sanding/Polishing Disc | 1.1 | 6.6 | 2.90 | 1/4 in |
| 10LF200-32 | 1/4 in-28i | Front | 12000 | 3“ (75 mm) Sanding/Polishing Dis | 3“ (75 mm) Sanding/Polishing Disc | 1.1 | 6.6 | 2.90 | 1/4 in |
| 10LF280-32 | 1/4 in-28i | Rear | 12000 | 3“ (75 mm) Sanding/Polishing Dis | 3“ (75 mm) Sanding/Polishing Disc | 1.1 | 6.6 | 2.90 | 1/4 in |
Looking for more information about Dotco Tool? Click here to view the Catalog
Need help selecting the correct Dotco Tools for your application? Please call (800) 608-5210 or email info@intlairtool.com
