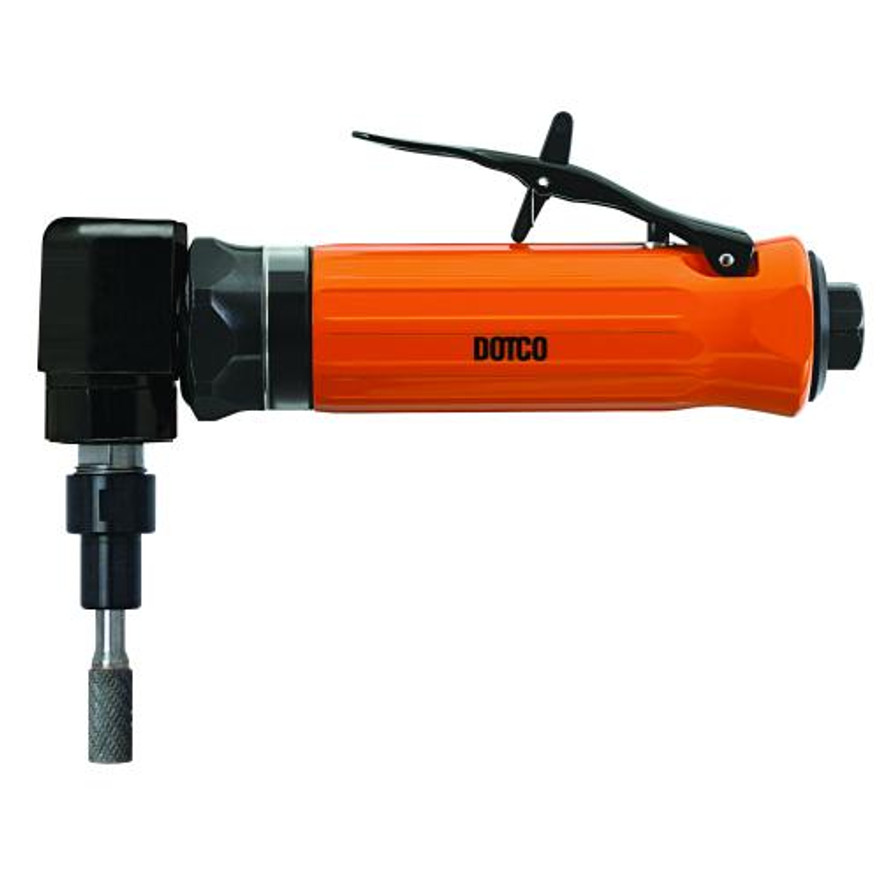

Dotco 10LF200-36M6 Precision Right Angle Die Grinder | 10LF Series | 0.4 HP | 12000 RPM | 6mm Collet | Front Exhaust

Built for precision deburring, edge blending, light material removal, and finishing in confined work areas, the Dotco 10LF200-36M6 Precision Right Angle Die Grinder combines a compact 90-degree head with a 0.4 HP pneumatic motor and a controlled 12,000 RPM free speed for applications that demand accuracy rather than maximum cutting speed. Its 6 mm collet securely accepts compatible rotary accessories, while the front exhaust directs airflow away from the operator's hand for improved visibility around the workpiece. The right-angle configuration provides easier access inside fixtures, fabricated assemblies, castings, and other restricted spaces where an inline grinder cannot comfortably reach.

The 10LF Series is commonly used with carbide burrs (rotary cutting tools for deburring and shaping metal) and mounted points for precision finishing. Its balanced aluminum housing helps maintain control during detailed grinding and polishing operations, making it well suited for aerospace manufacturing, metal fabrication, tool and die work, industrial maintenance, and precision production environments where consistent results are essential.

Type: Precision Right Angle Die Grinder | Series: 10LF Series | Power: 0.4 HP (0.30 kW) | Free Speed: 12,000 RPM | Collet Size: 6 mm | Exhaust: Front | Abrasive Capacity: 1/2" Carbide Burr, 1" Mounted Wheel, 3" Sanding/Polishing Disc | Housing: Aluminum | Weight: 1.1 lb | Length: 6.6 in. | Head Height: 2.70 in. | Air Inlet: 1/4 in.

Features:

• Compact right-angle head improves access when grinding, deburring, or polishing inside restricted work areas.
• 0.4 HP pneumatic motor provides controlled power for precision material removal and finishing applications.
• 12,000 RPM operating speed supports the use of carbide burrs, mounted wheels, and sanding or polishing discs where greater control is preferred over maximum speed.
• Front exhaust helps direct discharged air away from the operator and work surface.
• Durable aluminum housing balances strength with reduced tool weight for improved maneuverability.
• Compatible with 6 mm rotary accessories while accommodating approved abrasive capacities specified by the manufacturer.
• Supplied with grease and a grease gun for routine angle head maintenance.

Made in USA:

Applications:

• Deburring machined components, castings, and fabricated metal parts in manufacturing facilities.
• Blending welds, smoothing edges, and performing detail finishing during metal fabrication and tool & die work.
• Precision grinding and surface preparation in aerospace component manufacturing and maintenance operations.
• Maintenance and repair work requiring controlled grinding inside equipment, housings, and assembled machinery.
• General workshop and prototype finishing where a compact right-angle grinder offers improved access to confined areas.

FAQs:

• Q: What accessories can be used with this grinder?
  A: This model is intended for use with compatible 6 mm shank accessories including carbide burrs, mounted wheels, and approved sanding or polishing discs within the manufacturer's specified capacity.
• Q: Why choose a right-angle die grinder instead of an inline model?
  A: The 90-degree head provides better access around obstructions and inside confined spaces where straight-body grinders may be difficult to position.
• Q: What advantage does the 12,000 RPM speed provide?
  A: The lower free speed offers greater control for precision grinding, blending, and finishing operations while supporting larger approved sanding and polishing accessories.
• Q: What does the front exhaust do?
  A: The front exhaust directs discharged air away from the operator's grip, helping maintain visibility around the work area during detailed finishing tasks.
