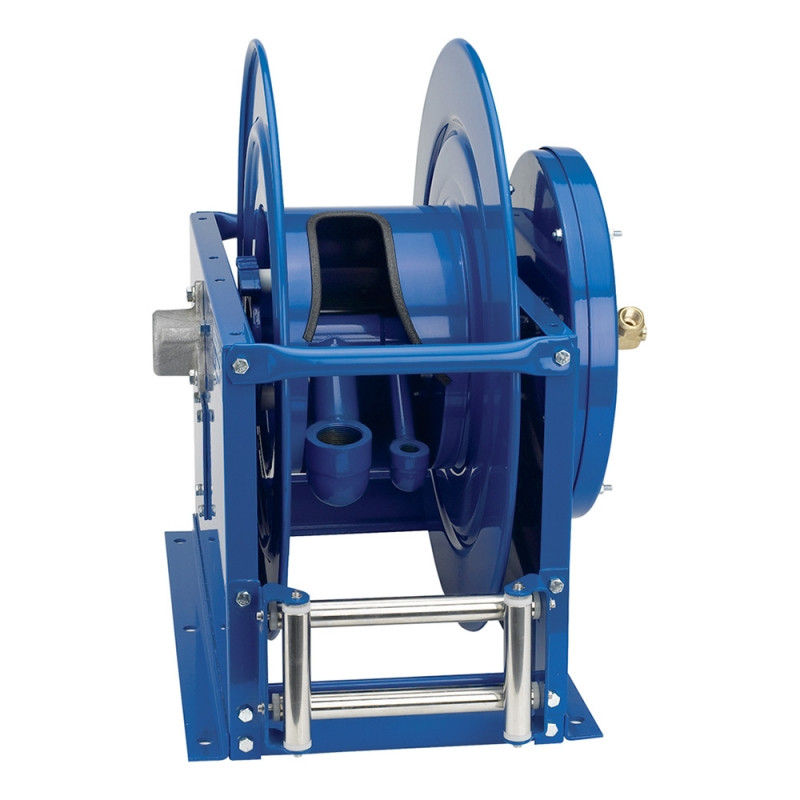

Designed for efficient management of large-diameter vacuum hose, the Coxreels VA-DLPL-825 spring rewind vacuum hose reel provides organized hose storage and automatic hose retrieval for commercial and industrial vacuum systems. Featuring the V Series, a 1-1/2" hose capacity, and 25 ft hose length capacity, this reel helps reduce hose clutter while protecting vacuum hoses from excessive wear, kinking, and tangling. Its spring rewind mechanism automatically retracts the hose after use, helping improve workplace organization and reducing manual handling.
Configured as a less hose model, the VA-DLPL-825 allows users to install a compatible vacuum hose that best meets their application requirements. The reel is well suited for dust collection, commercial cleaning, industrial vacuum systems, and material recovery operations where reliable hose management contributes to improved efficiency and a safer work environment.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Vacuum Hose Reel | Series: V Series | Configuration: Less Hose | Hose I.D.: 1-1/2" | Hose Capacity: 25 ft | Rewind: Spring Rewind
Features:
- Spring rewind mechanism automatically retracts the hose for quick and convenient storage.
- Designed to accommodate up to 25 feet of 1-1/2-inch vacuum hose.
- Less hose configuration allows installation of a vacuum hose selected for the intended application.
- Helps reduce hose kinking, tangling, and abrasion during daily operation.
- V Series construction provides dependable hose management for commercial and industrial vacuum systems.
- Supports improved workplace organization by keeping vacuum hoses neatly stored when not in use.
Made in USA:
Applications:
- Industrial vacuum and dust collection systems.
- Commercial cleaning and janitorial equipment.
- Manufacturing facilities managing dust and debris collection.
- Woodworking and fabrication shops using centralized vacuum systems.
- Material recovery and general housekeeping operations requiring organized vacuum hose storage.
FAQs:
- Q: What does "less hose" mean?
A: The reel is supplied without vacuum hose, allowing you to install a compatible hose that meets your specific application requirements. - Q: How does the spring rewind system work?
A: The internal spring mechanism automatically retracts the hose after use, helping keep the hose neatly stored and reducing manual winding. - Q: What size hose is this reel designed for?
A: This model is designed to accommodate up to 25 feet of 1-1/2-inch vacuum hose. - Q: Is this reel intended for vacuum hose applications?
A: Yes. The VA-DLPL-825 is designed specifically for vacuum hose management in compatible commercial and industrial vacuum systems.
| LESS HOSE SKU | DESCRIPTION | VACUUM | AIR | APRX. LBS. | SIZE INDEX | ||
|---|---|---|---|---|---|---|---|
| INLET | CAP. | INLET | CAP. | ||||
|
V1175 SERIES
|
|||||||
| V-1175-850 | Vacuum Only, Direct Crank | 1-1/2" NPT | 50' | - | - | 118 | 3 |
| V-1175-850-C | Vacuum Only, Bevel Front Crank | 1-1/2" NPT | 50' | - | - | 121 | 4 |
| V-1175-850-T | Vacuum Only, Bevel Top Crank | 1-1/2" NPT | 50' | - | - | 121 | 4 |
| VA-1175-850* | Vacuum & Air, Rim Rewind | 1-1/2" NPT | 50' | 1/2" NPT | 50' | 123 | 5 |
| VA-1175-850-C* | Vacuum & Air, Bevel Front Crank | 1-1/2" NPT | 50' | 1/2" NPT | 50' | 126 | 5 |
| VA-1175-850-T* | Vacuum & Air, Bevel Top Crank | 1-1/2" NPT | 50' | 1/2" NPT | 50' | 126 | 5 |
|
V SERIES
|
|||||||
| V-SLPL-825 | Vacuum Only, Spring Rewind | 1-1/2" NPT | 25' | - | - | 102 | 6 |
| VA-DLPL-825* | Vacuum & Air, Spring Rewind | 1-1/2" NPT | 25' | 1/2" NPT | 25' | 107 | 7 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Reel
- Series
- V Series
- Hose Inside Diameter (in.)
- 1-1/2
- Hose Length (ft.)
- 25
- Hose Included
- No
- Width (in.)
- 20.13
- Height (in.)
- 24.5
- Length (in.)
- 26.38
- Mounting Pattern (in.)
- 14M
- Mounting Pattern (in.)
- 22N
- Base (in.)
- 15.38X
- Base (in.)
- 25Y
