Coxreels V-1175-850 Vacuum Only Direct Crank Hose Reel | V1175 Series | 1-1/2" NPT Hose Diameter | 50' Hose Length | Less Hose

When extraction hose needs to stay organized around work cells, service bays, or fabrication areas, the Coxreels V-1175-850 provides a direct crank reel layout for vacuum-only hose storage and manual rewind control. This V1175 Series reel is configured for 1-1/2" NPT vacuum connections and 50 ft hose capacity, giving buyers a practical setup for routing vacuum hose used to remove fumes, dust, particles, and process by-products from the work area. The direct crank design keeps retraction simple without spring tension, while the open drum and low-profile outlet riser help the hose wrap smoothly during rewind.

Built as a vacuum-only model, the V-1175-850 is suited for facilities that need hose management without the added air plumbing found on vacuum/pneumatic combination reels. Its 118 lb ship weight, 23.63" W x 18" H x 17" L overall dimensions, and 14.88" x 16" mounting pattern help maintenance teams plan installation on benches, floors, trucks, or walls where compatible mounting support is available.

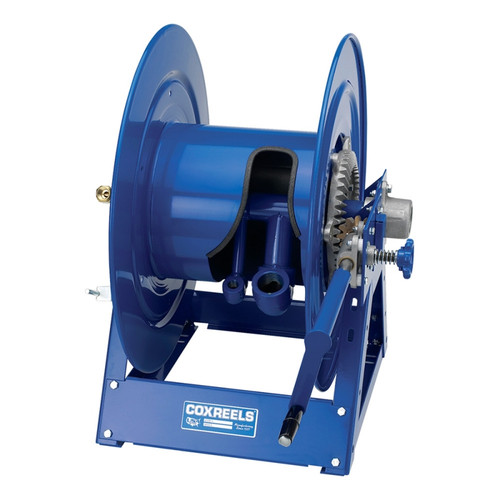

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Vacuum Hose Reel | Series: V1175 Series | Model: V-1175-850 | Configuration: Less Hose | Rewind Type: Direct Crank | Service: Vacuum Only | Vacuum Inlet: 1-1/2" NPT | Hose Capacity: 50 ft | Hose Included: No | Ship Weight: 118 lbs | Overall Dimensions: 23.63" W x 18" H x 17" L | Mounting Pattern: 14.88" M x 16" N | Base: 17.13" X x 20.25" Y

Features:

• Vacuum-only direct crank configuration keeps hose rewind manual and controlled, a practical choice when spring rewind is not required.
• Vacuum swivel is designed to fit 1-1/2" 29HG vacuum hose for compatible extraction hose connections.
• Sturdy one-piece, CNC robotically welded 1/4" steel A frame base with double-supported axle provides a stable reel structure for fixed installation.
• Mounting pattern is located in the steel base for straightforward reel installation and detachment.
• CNC robotically spun and ribbed discs with rolled edges add strength while helping protect the hose during winding and storage.
• Adjustable tension brake helps control the speed of the draw and reduces free-wheeling during operation, transport, or storage.
• Exclusive low-profile outlet riser and open drum slot design support a non-crimping, flat, smooth hose wrap.
• CPC powder coat finish helps resist chips and rust in shop and plant environments.

Made in USA:

2 Year Warranty

Applications:

• Manufacturing plants - managing vacuum hose used near production equipment, workstations, and process areas.
• Maintenance, repair, and operations - keeping extraction hose accessible while reducing loose hose on the floor.
• Fabrication and finishing areas - supporting vacuum hose routing for collecting dust, particles, and work-area by-products.
• Commercial vacuum systems - storing compatible 1-1/2" vacuum hose where manual crank rewind is preferred.
• Construction and mobile service setups - mounting vacuum hose storage on supported trucks, benches, floors, or wall locations when the installation structure matches reel requirements.

FAQs:

• Q: What does less hose mean on the Coxreels V-1175-850?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 1-1/2" vacuum hose separately before putting the reel into service.
• Q: Is this a vacuum-only reel or a vacuum-and-air reel?
  A: The V-1175-850 is a vacuum-only direct crank reel. Coxreels also offers VA models in the V1175 Series for vacuum and air applications, but this SKU does not include the air plumbing configuration.
• Q: What type of rewind does this model use?
  A: This model uses direct crank rewind, meaning the hose is retracted manually with the crank instead of a spring motor. This gives the operator direct control over rewind speed.
• Q: Can this reel be wall mounted?
  A: The manufacturer lists mounting dimensions for installation planning, and third-party listings commonly reference bench, floor, truck, and wall mounting. The mounting surface must be structurally capable of supporting the reel, hose, and pulling forces during use.
• Q: Does this reel include an air swivel or pneumatic connection?
  A: No. This SKU is vacuum only and is listed with a 1-1/2" NPT vacuum inlet and no air inlet capacity.
