Coxreels VA-1175-850 Vacuum Only Direct Crank Hose Reel | V1175 Series | 1-1/2" NPT Hose Diameter | 50' Hose Length | Less Hose

Built for vacuum extraction layouts where hose capacity and fixed mounting strength matter, the Coxreels VA-1175-850 is part of the V1175 Series and is configured as a vacuum and air rim rewind hose reel with capacity for 50 ft of 1-1/2" NPT vacuum hose. The dual-plumbing VA configuration supports vacuum extraction while also providing an air path for pneumatic tools, helping shops manage airborne dust, chips, fumes, and debris while keeping air-powered tools close to the work area. The rim rewind design gives the operator manual control over hose take-up, while the welded A-frame base provides a rigid mounting platform for bench, floor, truck, or wall installation when properly supported.

The V1175 Series uses a vacuum swivel sized for 1-1/2" 29 HG vacuum hose, a low-profile outlet riser, and an open drum slot to help the hose wrap smoothly without crimping. Its CNC-spun ribbed discs with rolled edges help protect the hose during winding, and the adjustable tension brake helps prevent free-wheeling during use, transport, or storage.

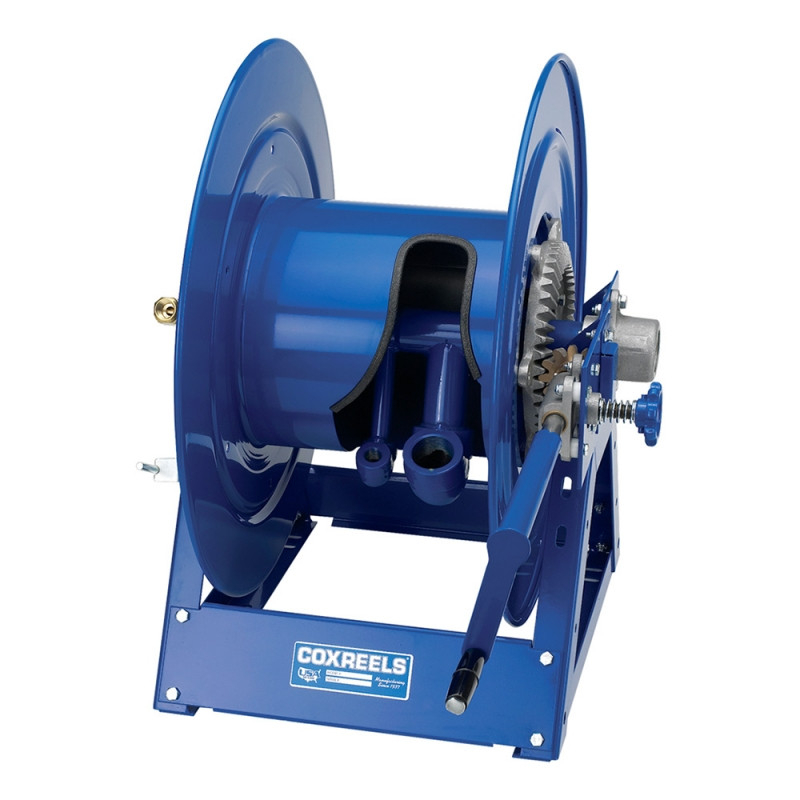

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hand Crank Vacuum / Air Hose Reel | Series: V1175 Series | Model: VA-1175-850 | Rewind Type: Rim Rewind | Configuration: Less Hose | Vacuum Hose I.D.: 1-1/2" NPT | Vacuum Hose Capacity: 50 ft | Air Inlet: 1/2" NPT | Air Hose Capacity: 50 ft | Ship Weight: 123 lbs | Overall Dimensions: 21.75" W x 26.13" H x 24" L | Mounting Pattern: 14.88" M x 16" N | Base: 17.13" X x 20.25" Y

Features:

• Dual vacuum and air plumbing supports vacuum extraction while allowing a pneumatic air line to be routed through the reel for tool operation.
• Vacuum swivel is sized to fit 1-1/2" 29 HG vacuum hose for fume, chip, dust, and particle collection systems.
• Sturdy one-piece, all CNC robotically welded 1/4" steel A-frame base with double-supported axle provides a rigid reel structure.
• Mounting pattern is located in the steel base for straightforward reel installation and detachment.
• CNC robotically spun and ribbed discs with rolled edges add strength while helping protect the hose and improve operator safety during winding.
• Adjustable tension brake lets the user set draw resistance and helps prevent the reel from free-wheeling during operation, storage, or transport.
• Low-profile outlet riser and open drum slot provide a flatter, smoother hose wrap to help reduce hose crimping.
• CPC powder coat finish helps resist chips and rust, while the rim rewind format gives the operator direct manual control over hose retrieval.

Made in USA:

2 Year Warranty

Applications:

• Manufacturing plants and facilities - routing vacuum extraction hose and air service to workstations where dust, chips, fumes, or by-products must be removed from the work area.
• Industrial maintenance and MRO - supporting cleanup, repair, and tool-use stations where vacuum collection and pneumatic tool access are both needed.
• Fabrication and finishing areas - pairing vacuum recovery with air-powered grinders, sanders, and finishing tools in enclosed or controlled work zones.
• Construction and jobsite service vehicles - mounting a less-hose reel to trucks, trailers, or service benches where custom hose selection is required.
• Commercial vacuum systems - storing and managing long vacuum hose runs to reduce floor clutter and improve hose handling.

FAQs:

• Q: What does less hose mean on this Coxreels VA-1175-850?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 1-1/2" NPT vacuum hose and compatible air hose separately.
• Q: What is the difference between a VA model and a V model in the V1175 Series?
  A: Coxreels VA models are vacuum and air models with dual plumbing for vacuum extraction and pneumatic air service. V models are vacuum-only models.
• Q: Is this a spring rewind reel?
  A: No. The VA-1175-850 is listed as a rim rewind model, meaning hose retrieval is handled manually by rotating the reel rim.
• Q: Can this reel be used with pneumatic tools?
  A: Yes, the VA configuration includes an air path with a 1/2" NPT air inlet. Confirm the air hose, tool requirements, pressure rating, and system layout before installation.
• Q: Can I mount this reel on a wall or service truck?
  A: The reel includes a steel base mounting pattern, but the mounting surface must support the reel weight, hose weight, and pull forces during use. Always follow Coxreels installation guidance and use appropriate mounting hardware for the structure.
