Coxreels V-1175-850-C Vacuum Only Direct Crank Hose Reel | V1175 Series | 1-1/2" NPT Hose Diameter | 50' Hose Length | Less Hose

When vacuum hose needs to be stored neatly around a production cell, fabrication bench, service bay, or mobile maintenance setup, the Coxreels V-1175-850-C provides a manual crank reel layout for vacuum-only hose management. This V1175 Series reel is built for 1-1/2" NPT vacuum hose connections with 50 ft hose capacity, giving shops a practical way to manage extraction hose used for removing fumes, particles, dust, and process by-products from the work area. The bevel front crank configuration positions the crank for front-side access, which can be helpful when the reel is mounted where side or top access is limited.

The V-1175-850-C is a vacuum-only model, meaning it is intended for vacuum extraction hose storage and does not include the dual vacuum-and-air plumbing found on Coxreels VA Series combination models. With a 121 lb ship weight, 22" W x 26.13" H x 24" L overall dimensions, and a 14.88" x 16" mounting pattern, this reel gives maintenance teams the dimensional details needed to plan bench, floor, truck, or wall installations where the mounting structure is properly supported.

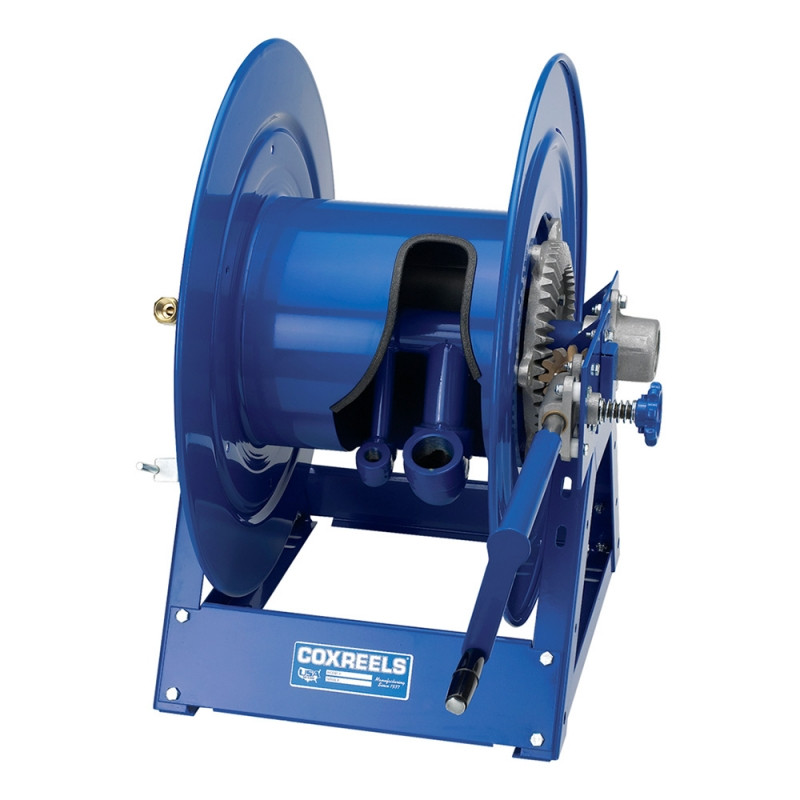

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Vacuum Hose Reel | Series: V1175 Series | Model: V-1175-850-C | Configuration: Less Hose | Rewind Type: Bevel Front Crank | Service: Vacuum Only | Vacuum Inlet: 1-1/2" NPT | Hose Capacity: 50 ft | Hose Included: No | Ship Weight: 121 lbs | Overall Dimensions: 22" W x 26.13" H x 24" L | Mounting Pattern: 14.88" M x 16" N | Base: 17.13" X x 20.25" Y

Features:

• Vacuum-only hand crank configuration supports extraction hose storage without the added air plumbing used on vacuum-and-air combination reels.
• Bevel front crank rewind provides manual hose retrieval from the front of the reel, useful when the installation favors front-side crank access.
• Vacuum swivel is designed to fit 1-1/2" 29HG vacuum hose for compatible vacuum hose connection.
• Sturdy one-piece, CNC robotically welded 1/4" steel A frame base with double-supported axle provides a stable reel structure for fixed mounting.
• Mounting pattern is located in the steel base to support installation and detachment during setup or service.
• CNC robotically spun and ribbed discs with rolled edges add strength while helping protect hose during winding and storage.
• Adjustable tension brake controls the speed of the draw and helps prevent free-wheeling during operation, transport, or storage.
• Exclusive low-profile outlet riser and open drum slot design help create a non-crimping, flat, smooth hose wrap.
• CPC powder coat finish helps resist chips and rust in shop, plant, and service environments.

Made in USA:

2 Year Warranty

Applications:

• Manufacturing work cells - managing vacuum hose used for source capture near equipment, fixtures, and process stations.
• Fabrication and finishing areas - storing extraction hose used to collect dust, particles, and work-area by-products.
• Industrial maintenance and MRO - keeping vacuum hose off the floor and ready for cleanup or localized extraction tasks.
• Commercial vacuum systems - supporting 1-1/2" vacuum hose storage where manual front-crank rewind is preferred.
• Mobile service and truck-mounted setups - organizing vacuum hose on supported vehicles, skids, or benches when the mounting surface matches reel requirements.

FAQs:

• Q: What does less hose mean on the Coxreels V-1175-850-C?
  A: It means this SKU is supplied as the reel only, without hose installed. The buyer must supply compatible 1-1/2" vacuum hose separately before use.
• Q: Is the V-1175-850-C a direct crank or bevel front crank reel?
  A: The Coxreels model listing identifies V-1175-850-C as a vacuum-only bevel front crank model. The related V-1175-850 model is the vacuum-only direct crank version.
• Q: Does this model include air plumbing for pneumatic tools?
  A: No. This is a vacuum-only reel. Coxreels VA models in the same series are the vacuum-and-air versions for extraction plus pneumatic tool supply.
• Q: What hose is this reel intended to accept?
  A: The vacuum swivel is designed to fit 1-1/2" 29HG vacuum hose. Always verify hose O.D., bend radius, and connection requirements before ordering hose separately.
• Q: Can this reel be used on a wall or service truck?
  A: The reel may be mounted where the supporting structure can handle the reel weight, hose weight, and pulling forces during use. Confirm mounting orientation, fasteners, and support structure before installation.
