Coxreels VA-1175-850-C Vacuum Only Direct Crank Hose Reel | V1175 Series | 1-1/2" NPT Hose Diameter | 50' Hose Length | Less Hose

Built for workstations that need vacuum extraction and air-tool supply from the same reel position, the Coxreels VA-1175-850-C is a V1175 Series hand crank hose reel configured for 1-1/2" NPT vacuum hose with 50 ft hose capacity. The VA model layout includes dual plumbing for vacuum and air applications, helping shops manage dust, chips, fumes, and particles while keeping a pneumatic air line available for compatible tools at the point of work.

This model uses a bevel front crank rewind arrangement, which places the crank forward for controlled manual hose retrieval when wall, bench, floor, or service-vehicle mounting requires a front-access handle. The V1175 Series construction includes a welded steel A-frame base, ribbed discs with rolled edges, an adjustable tension brake, and a low-profile outlet riser to help the hose wrap evenly with less risk of crimping during rewind.

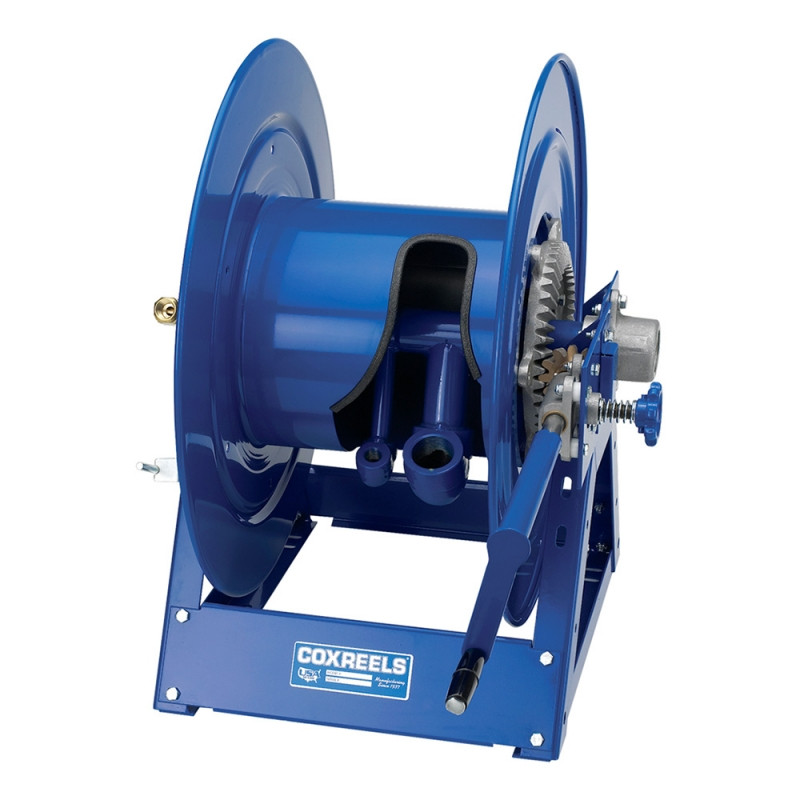

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hand Crank Vacuum / Air Hose Reel | Series: V1175 Series | Model: VA-1175-850-C | Rewind Type: Bevel Front Crank | Configuration: Less Hose | Vacuum Hose I.D.: 1-1/2" NPT | Vacuum Hose Capacity: 50 ft | Air Inlet: 1/2" NPT | Air Hose Capacity: 50 ft | Ship Weight: 121 lbs | Overall Dimensions: 21.75" W x 26.13" H x 24" L | Mounting Pattern: 14.88" M x 16" N | Base: 17.13" X x 20.25" Y

Features:

• Dual vacuum and air plumbing supports extraction and pneumatic air service from one reel location.
• Bevel front crank configuration provides controlled manual rewind with the crank positioned for front-side access.
• Vacuum swivel is sized for 1-1/2" 29 HG vacuum hose used in dust, chip, fume, and particle collection applications.
• One-piece CNC robotically welded 1/4" steel A-frame base with double-supported axle provides a rigid reel structure.
• Mounting pattern is built into the steel base for secure installation and practical reel removal when service is required.
• CNC robotically spun and ribbed discs with rolled edges add strength while helping protect the hose during rewind.
• Adjustable tension brake helps control drum resistance and reduce free-wheeling during use, transport, or storage.
• Low-profile outlet riser and open drum slot help guide hose onto the reel for a flatter, smoother wrap.

Made in USA:

2 Year Warranty

Applications:

• Fabrication and finishing stations - routing vacuum hose for dust, chips, and particles while keeping air service available for pneumatic tools.
• Industrial maintenance and MRO - organizing extraction hose and air line access around repair benches, service bays, and equipment work areas.
• Manufacturing work cells - supporting cleaner work areas where debris collection and air-powered tool operation are both part of the process.
• Truck, trailer, and mobile service builds - mounting a less-hose reel where installers need to choose hose construction separately for the application.
• Commercial vacuum systems - storing 50 ft of large-diameter vacuum hose to reduce floor clutter and improve hose handling.

FAQs:

• Q: What does less hose mean for this reel?
  A: It means the reel is supplied without hose installed. Select compatible vacuum hose and air hose separately based on the reel capacity, system requirements, and application.
• Q: Is the VA-1175-850-C a vacuum-only reel?
  A: Coxreels lists the VA-1175-850-C as a vacuum and air model with dual plumbing. The vacuum-only bevel front crank model is typically listed under the V prefix, not the VA prefix.
• Q: What is a bevel front crank?
  A: A bevel front crank is a manual rewind arrangement that positions the crank at the front of the reel. This can make hose retrieval easier when the reel is mounted where side access is limited.
• Q: Can this reel be used with pneumatic tools?
  A: Yes, the VA configuration includes an air path with a 1/2" NPT air inlet. Confirm hose rating, tool air demand, pressure requirements, and system layout before installation.
• Q: Can this reel be mounted on a wall or vehicle?
  A: The reel includes a steel base mounting pattern, but the mounting surface must support the reel, hose load, and pulling forces during use. Use appropriate mounting hardware and follow Coxreels installation guidance.
